Sharp SMD2499FS Service Manual

40
SMD2499FS

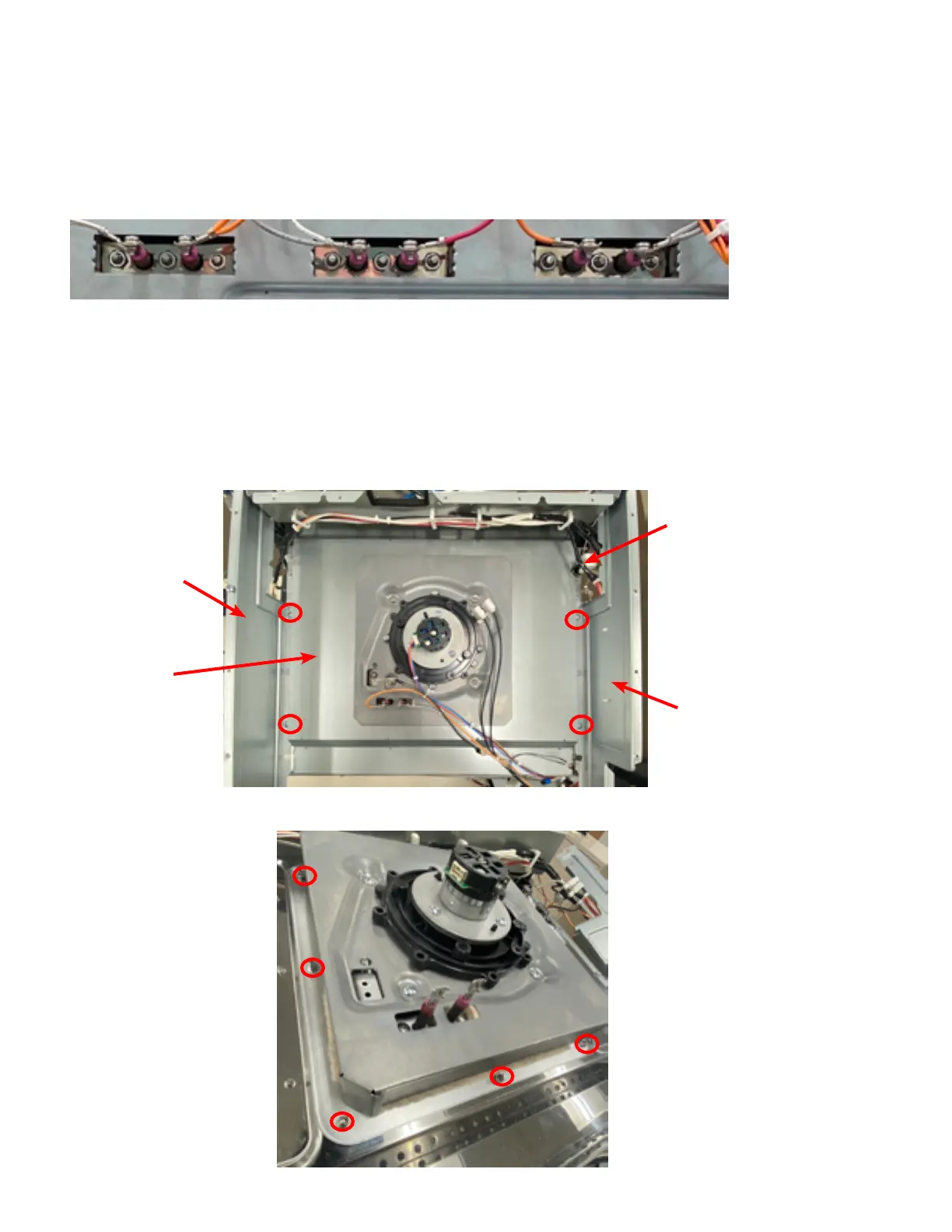

GRILL REMOVAL
1. Remove the left Outercase cabinet.
2. Unscrew the screws holding the wires to the defective Grill (Fig. G-1)
3. Remove the (3) nuts holding the Grill to the cavity using a 9/32 or 7mm deep socket.
4. Unhook the defective Grill and take out.
5. Reinstall replacement Grill in reverse order.
TOP CONVECTION ASSY REMOVAL
1. Remove the Top Outercase cabinet.
2. Remove the Left & Right Chassis Support (6) screws, Heat Cover Upper (3) screws, plus Thermal Cutout. (Fig. T-1)
3. Unhook all wires going to the Conv Assy.
4. Lift off Heat Cover Upper and insulation. (Fig. T-1)
5. Remove (8) nuts from around the outer edge of the Conv Assy using a 9/32 or 7mm deep socket. Fig. T-2
5. Reinstall replacement Top Convection Assy in reverse order.
Fig. G-1
Fig. T-1
Fig. T-2
Right Chassis
Support
Thermal
Cutout
Left Chassis
Support
Heat Cover
Upper

Sharp SMD2499FS Specifications

General

Style	drawer
Color	stainless steel
Total Capacity	1.4 cu. ft.
Convection	yes
Power Levels	11
Sensor Cooking	yes
Quick Start	yes
Timer	yes
Wi-Fi	yes
Remote Control	yes
Max Power Consumption	900 watts
Microwave Power	900 watts
Voltage	115 volts
Current	15

Weight and Dimensions

Depth	20-7/8"; 27"; 20 7/8 inch; 23-1/2"; 16-7/16"
Height	19 1/2 inch; 19-3/4"; 8-3/4"; 19-1/2"; 24-1/2"; 19-3/8"
Width	23-5/8"; 27-1/2"; 22-3/8"; 23 5/8 inch; 23-7/8"; 16-15/16"
