16

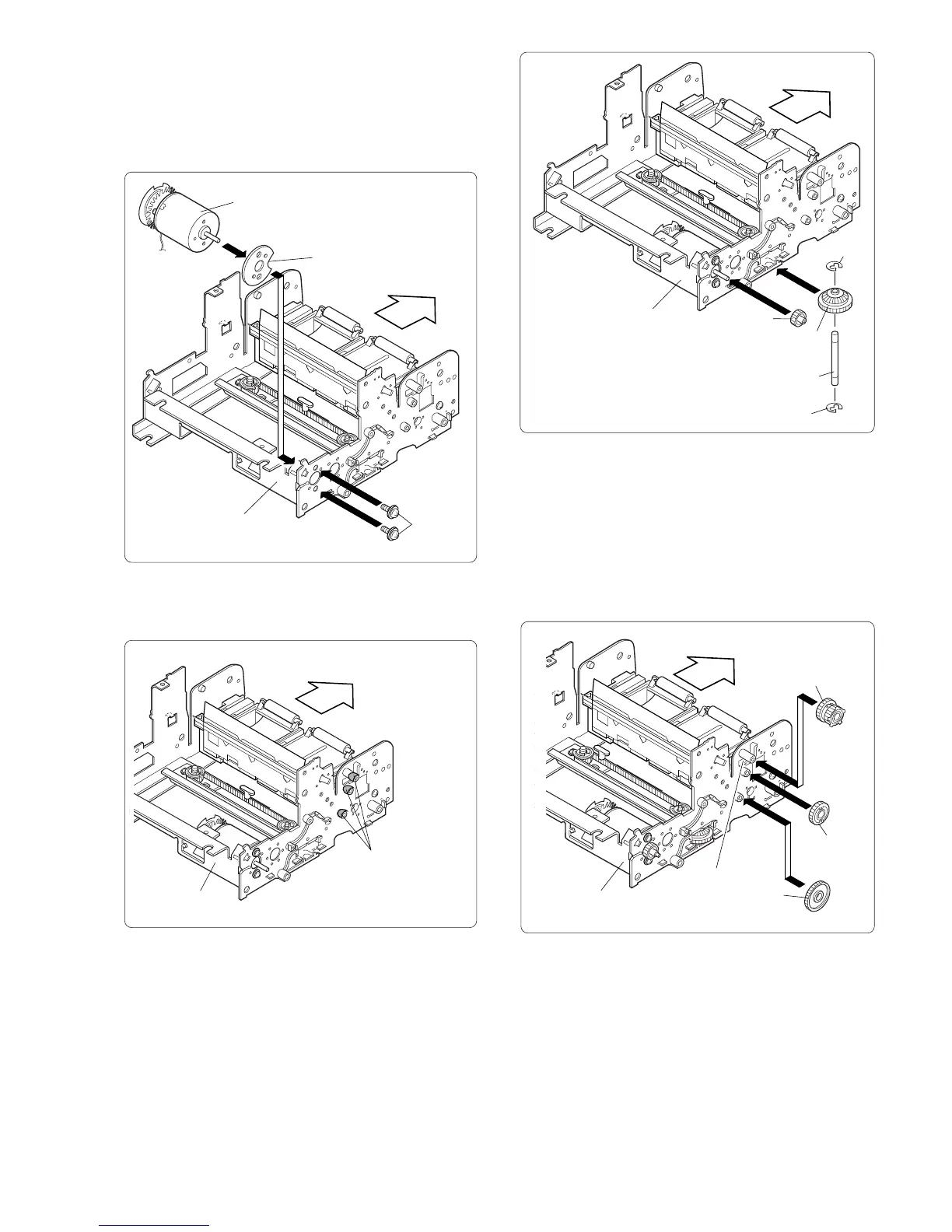

(34) Install the idle gear 1 and idle gear 2 and the winder
pulley assembly.
Note: 1. Winder pulley assembly refers to the
winder pulley with the idle gear 2 installed.
2. Mount the winder gear 2 and the winder pulley
assembly while disengaging the securing
hook.
Rear
Main frame
assembl
y
Idle gear 1
Idle gear 2
Winder pulley
assembly
Securing hook
(31) Apply ORELUBE G-1/3 to the three pivots on the
right side of the main frame assembly.
(32) Mount the motor gear on the shaft of the motor assembly.
(33) Install the bevel gear 1 and fasten with E-ring (E2) over
the bevel gear 1 pivot.
Rear
Pivot
(Apply ORELUBE G-1/3)
Main frame
assembly
(30) Mount the motor assembly and motor spacer on to
the right side of the main frame assembly and
fasten with fastening screws (M3x5).
Note: Mount the motor so that the lead wires are
on the bottom side.
Main frame
assembly
Fastening
screws
Motor spacer
Motor assembly
Rear
Main frame
assembly
Rear
Motor gear
E-ring
E-ring
Bevel gear 1
Bevel gear 1
pivot
