Sharp UP-600 Service Manual

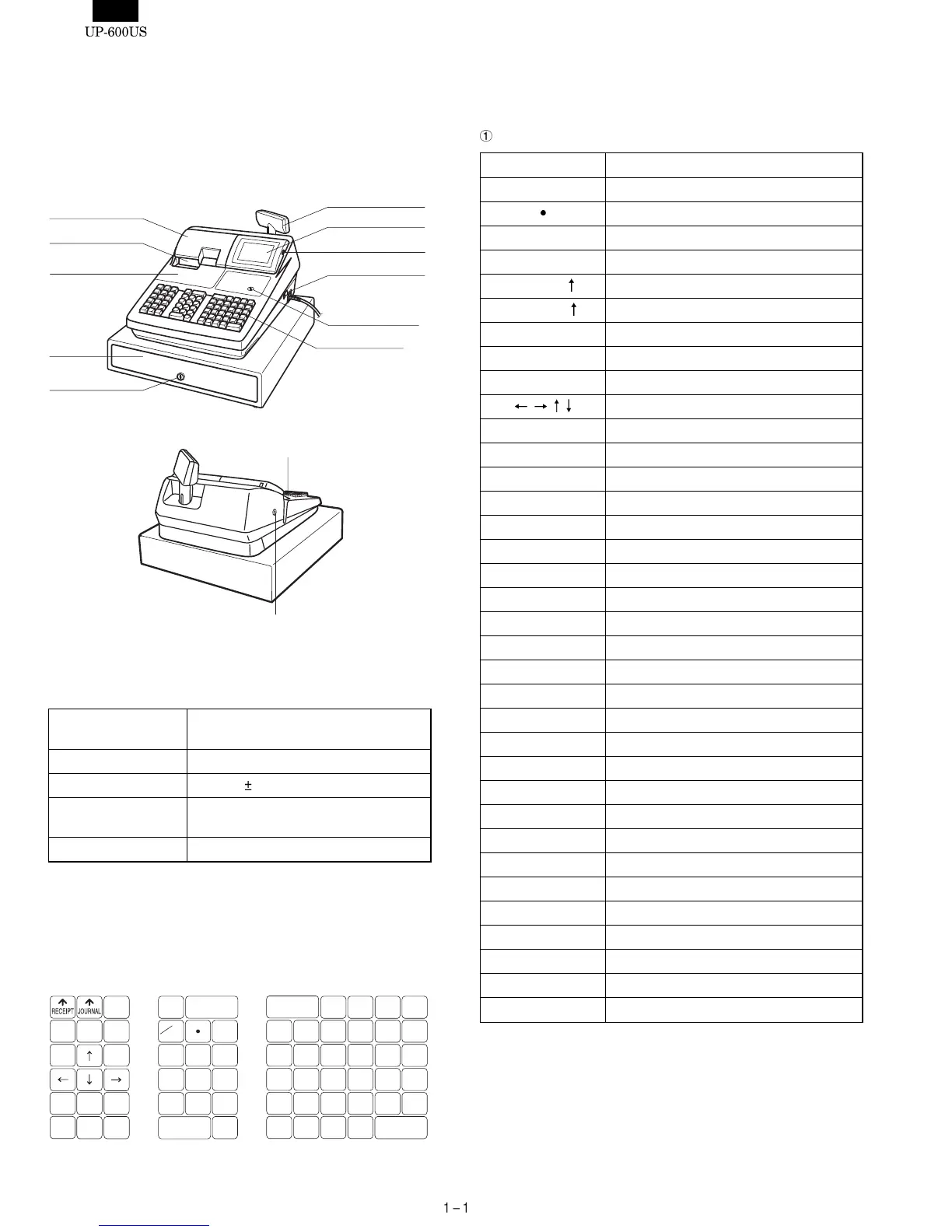

CHAPTER 1. SPECIFICATION
1. APPEARANCE
External view
2. RATING
External dimensions :
With a drawer
445 (W) x 485 (D) x 312 (H) mm
Weight : With a drawer 16.4kg
Power source 120V AC
10%, 60Hz
Power consumption Stand-by : 16 W
Operating : 57 W (max.)
Working temperatures 0 to 40 °C
3. KEYBOARD
1) STANDARD KEYBOARD LAYOUT
2) KEY TOP NAME
Standard key top
KEY TOP DESCRIPTION
0-9,00 Numeric keys
Decimal Point key
CL Clear key
@/FOR Multiplication key
RECEIPT
Receipt paper feed key
JOURNAL
Journal paper feed key
PAGE UP Page up key
PAGE DOWN Page down key
CANCEL Cancel key
Cursor keys
ENTER Enter key
RFND Refund Key
RCPT Receipt print Key
TAX SHIFT Tax 1 shift key
VOID Void Key
PLU/UPC PLU/UPC code entry key
AUTO1, 2 Automatic sequencing 1 and 2 keys
MISC FUNC Miscellaneous function key
CONV# Currency conversion menu key
CHK# Check Menu Key
CH# Charge Menu Key
SBTL Subtotal Key
CA/AT Cash / amount tendered key
(Dept) 1 to 22 Department 1 to 22 Keys
CASH# Cashier number entry
FS SHIFT Food stamp shift key
FS TEND Food stamp tender key
NS No sale key
TAX Manual tax key
NEXT $ Next higher dollar key
MDSE SBTL Merchandise subtotal key
AMT Amount entry key
#/TM Non-add code/Date & Time display key
INQ Inquiry key
PRICE CHANGE UPC price change key
Front view
Rear view
Receipt paper
Drawer lock
Drawer
Journal cover
Operator display
Contrast control
Power switch
Mode switch
Keyboard
Customer display
(Pop-up type)
Ribbon cover
Validation opening
Printer cover lock
CANCEL
RCPT
AMT
5
INQ
SBTL
ENTER
7
4
1
0
00
4
3
2
1
10
9
8
7
6
15
14
13
12
11
20
19
18
17
16
NS
CA/AT
2
56
89
PLU/UPC
3
#/TM
VOID
RFND
TAX
@
FOR
MISC
FUNC
PAGE
UP
CONV
#
PAGE
DOWN
TAX
SHIFT
CASH
#
CL
PRICE
CHANGE
FS
SHIFT
AUTO
1
MDSE
SBTL
CHK
#
CH
#
NEXT
$
FS
TEND
AUTO
2
