5. PRINTER (DP-750)
1) SPECIFICATIONS
•
Part number: DP-750
• No. of stations: 2
• Printing system: Mechanical serial dot
• Direction of printing: Bidirectional
• Printing capacity: Receipt – 24 characters
Journal – 24 characters
Validation – 55 characters (one line only)
• Character size: 1.36 (W) 2.75 (H) mm at 7 7 dots
Print pitch:
Column distance 1.59 mm
Row distance 4.23 mm
• Total number of dots: Receipt – 108 dots/216 positions
Journal – 108 dots/216 positions
Validation – 248 dots/495 positions
• Font: 7 7 dots (including half dot)
Space between characters – 1 dot (2 po-
sitions)
• Distance between dots: 0.353 mm (H) 0.353 mm (W)
• Print speed: Approx. 3.0 lines/sec.
• Paper feed speed: Receipt – Approx. 30 lines/sec.
Journal – Approx. 30 lines/sec.
• Reliability: MCBF – 4 million lines (excluding the
print head)
Head life – 50 million characters (at 4
dots/1 character/1 pin)
• Validation form sensor: Not available
2) PRINTING AREA
Receipt/journal
Validation form
3) PAPER
•
Paper roll dimensions: 44.5 0.5mm in width, 83mm in diameter
• Paper quality: Journal/ Receipt
Bond paper (paper thickness: 0.06 to
0.09mm, paper weight: 52.3 to 64g/m
2
)
Validation form
Thickness: 0.07 to 0.14mm
Size:130mm or more (W)
70mm or more (H)
4) INKING
•
Ink supply system: Ink ribbon
• Form: Cartridge/Endless ribbon
• Specification: Material – Nylon
• Ribbon life: Approx. 6 million characters
• Print color: Purple
5) LOGO STAMP : None
6) CUTTER
• Method: Manual
6. DRAWER
1) SPECIFICATION
(1) Drawer box and drawer
Model name SK-460
Size 445 (W) x 464 (L) x 118 (H)
Color GRAY 368
Material Metal
Bell —
Release lever Standard equipment; Front key
Drawer open sensor Standard equipment
2) MONEY CASE
U version A version
Separation from the drawer
Allowed
Allowed Allowed
Separation of the coin
compartments from the money case
Disallowed Disallowed
Bill separator No Standard (1 pcs)
Number of compartments 7B/5C 4B/8C
3) LOCK
Location of the lock Front
Method of locking
and unlocking
Locking: Insert the drawer lock key into
the lock and turn it 90 degrees
counterclockwise.
Unlocking: Insert the drawer lock key into
the lock and turn it 90 degrees
clockwise.
Key No. SK1-2
87.08
44.5± 0.5
RECEIPT JOURNAL
Unit : mm
37.87
44.5± 0.5
3.56 3.56 3.56
37.87
4.2
3.56

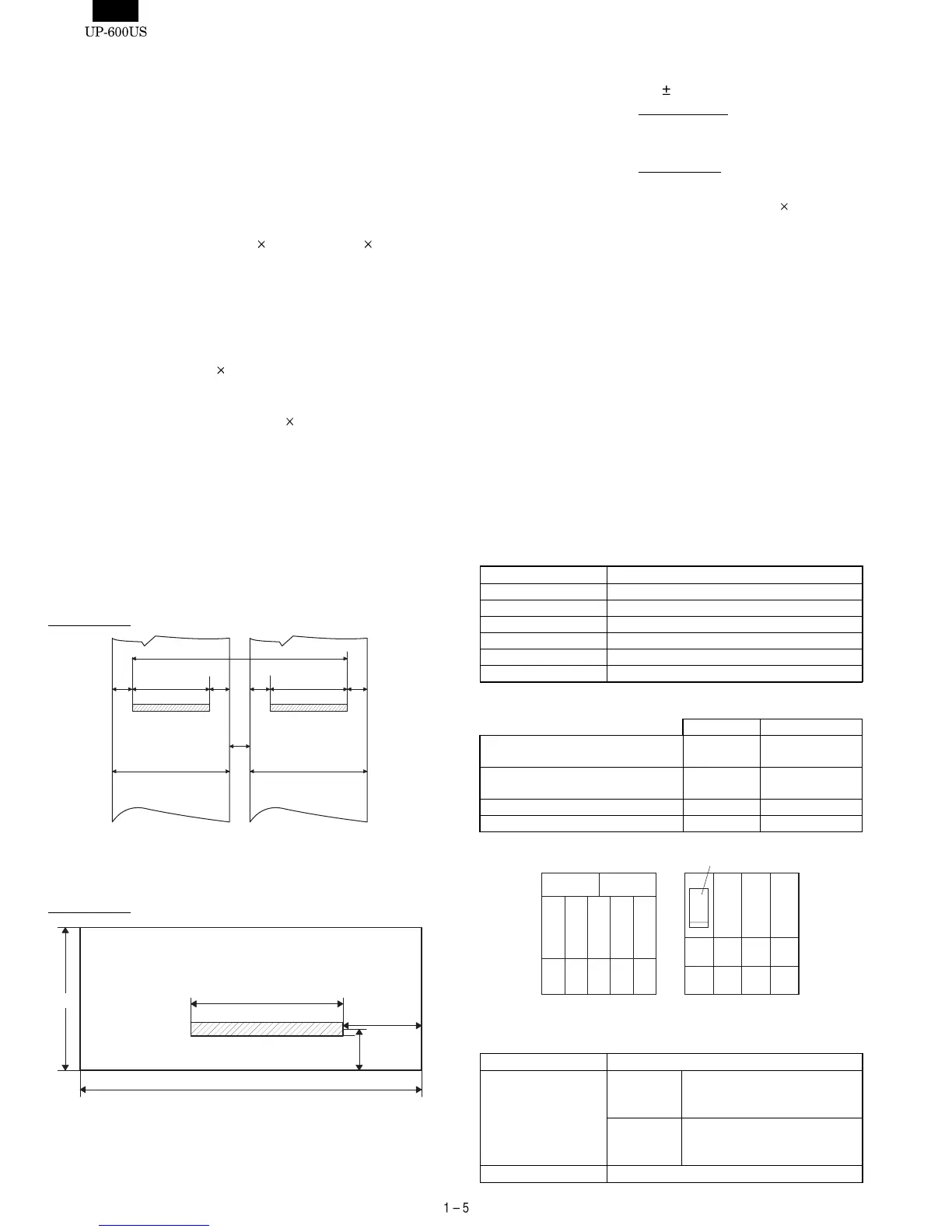

Fig. 5-1
70
130
87.0 (PRINT AREA)
20
22
Unit : mm
Fig. 5-2
Bill separator
A version : 4B/8CU version : 7B/5C
