Sharp XG-C55X - Removing of Major Parts

13
XG-C55X
REMOVING OF MAJOR PARTS

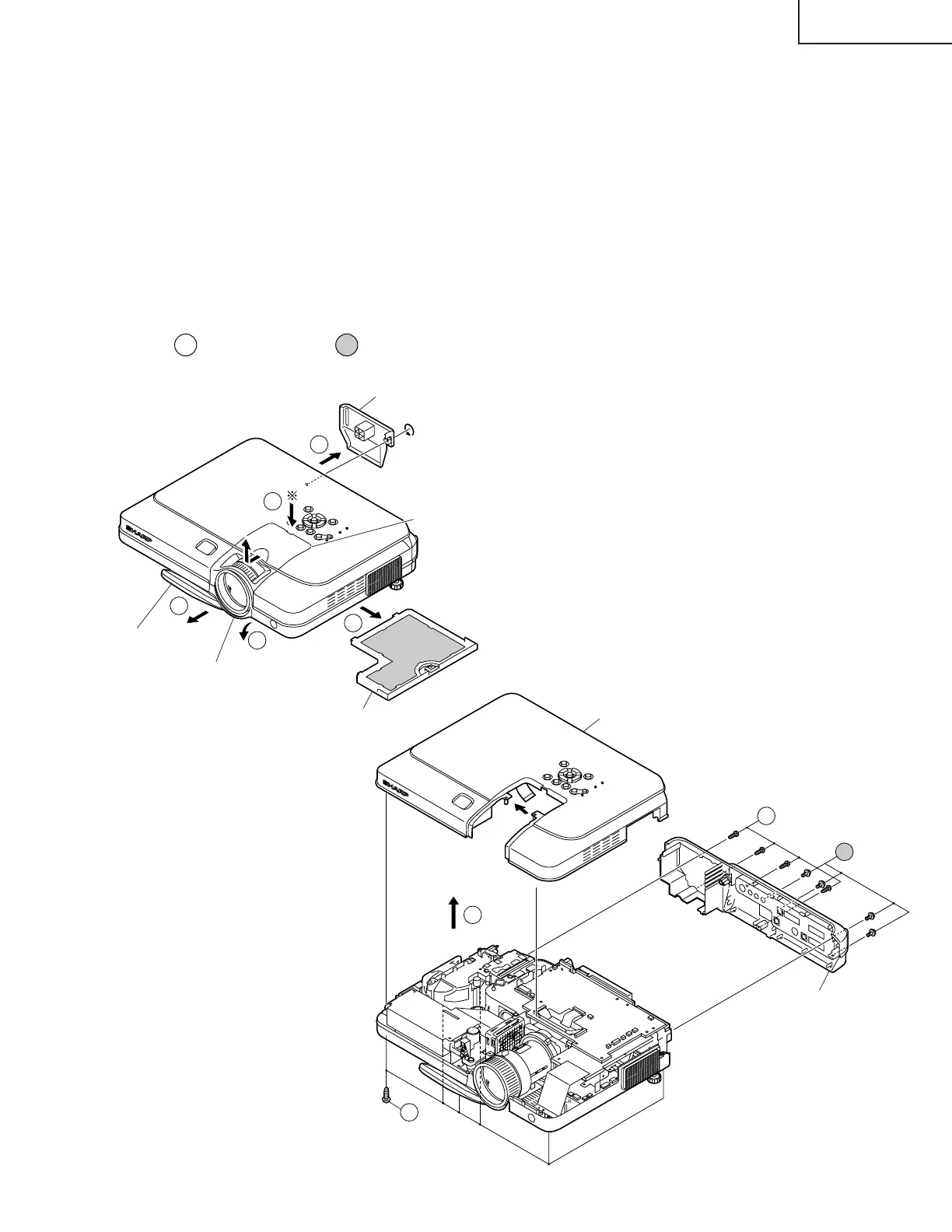

1. Removal of the bottom filter cover and lamp unit cover
1-1. Detach the bottom filter cover.
1-2. Loosen the lock screw from the lamp unit cover, and detach the lamp unit cover.
1-3. Pull out the carrying handle.
1-4. Press the ~-marked spot of the upper half of the lens cover to unhook the claw, and detach the upper lens
cover.
1-5. Detach the lower half of the lens cover.
2. Removal of the top panel and rear panel
2-1. Remove the six lock screws (black) from the top panel.
2-2. Remove the eight lock screws from the rear panel and detach the rear panel.
(
2-2
:XEBSF30P12000,
2-2
:XBBSF30P10000)
2-3. Slowly lift the top panel and disconnect the connector from the key PWB. Remove another screw and detach
the top panel.
1-2
1-1
Lamp unit cover
Bottom filter cover
Upper half of the lens cover
Carrying handle
Lower half of the lens cover
1-3
1-5
1-4
2-1
2-2
2-2
2-3
Top panel
Rear panel
(Black)
