20
XG-C55X
SOFTWARE UPDATE PROCEDURE
Preparation
1. Install the Tera Term Pro (communication program) into PC.
1.1 Downloaded the Tera Term Pro from the Internet.
http://hp.vector.co.jp/authors/VA002416/teraterm.html
1.2 Decompress ttremp23.zip and then run setup.exe in the folder.
1.3 The Language list box appears in the dialog box.
Select English and then click Continue.
1.4 The NOTE: ~ message appears in the dialog box.
Click Continue.
1.5 The Destination Path dialog box appears.
Click Continue.
It is not necessary to change the default destination path(c:\PROGRAM FILES\TTERMPRO).
1.6 The Complete dialog box appears.
Click OK.
2. Decompress the software file for update to the suitable folder.
Loading software
1. Turn on the projector.
2. Connect the RS-232C-IN port of the projector and the RS-232C port of your PC with a DIN-D-sub RS-232C
adapter and a RS-232C serial control cable (cross type).
3. Run the Tera Term Pro (communication program).

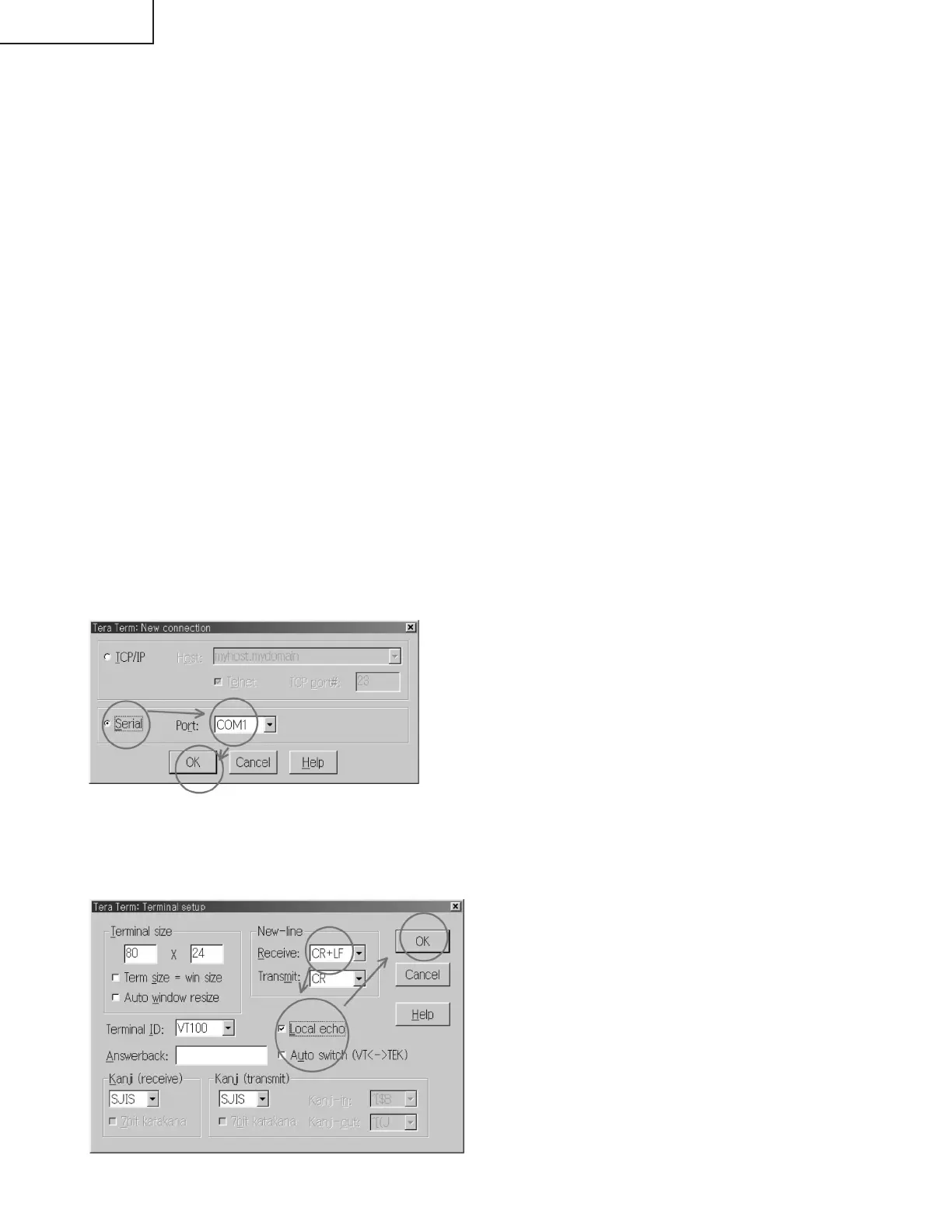

3.1 The New connection dialog box appears, select the Serial and then select the suitable COM port.
Then click OK.
3.2 On the Tera Term Pro, select the Setup and then the Terminal.
Change Receive to CR+LF and then check Local echo.
Then click OK.
To Next Page
