SHUTTER buttons
• OPEN: For opening the shutter.
• CLOSE: For closing the shutter
and hiding the projected
image.
Lamp unit cover
Attaching the lens cap/dustproof cap
Snap on the lens cap/dustproof cap
straight.
Removing the lens cap/dustproof cap
Pull the lens cap/dustproof cap directly
outward.
STANDBY button
For putting the projector
into standby mode.
ON button
For turning the power on.
ZOOM buttons
For adjusting the projected
image size.
FOCUS buttons
For adjusting the focus.
Power indicator
H&V LENS SHIFT button
For shifting the lens horizontally
and vertically.
AUTO SYNC button
For automatically
adjusting images when
connected to a computer.
ENTER button
For setting items selected
or adjusted on the menu.
KEYSTONE button
For entering the Keystone
Correction mode.
Adjustment buttons
('/"/\/|)
For selecting menu items
and other settings.
INPUT buttons
For switching input mode.
Volume buttons
For adjusting the speaker
sound level.
Temperature warning
indicator
Lamp 2 indicator
Lamp 1 indicator
MENU button
For displaying adjustment
and setting screens.
UNDO button
For undoing an operation or
returning to the previous display.
Remote control sensor
Speaker
Lens cover
Lens cover removal button
Speaker
Exhaust vent
Adjustment foot
(on the bottom of the projector)
Adjustment foot
(on the bottom of
the projector)
Projector

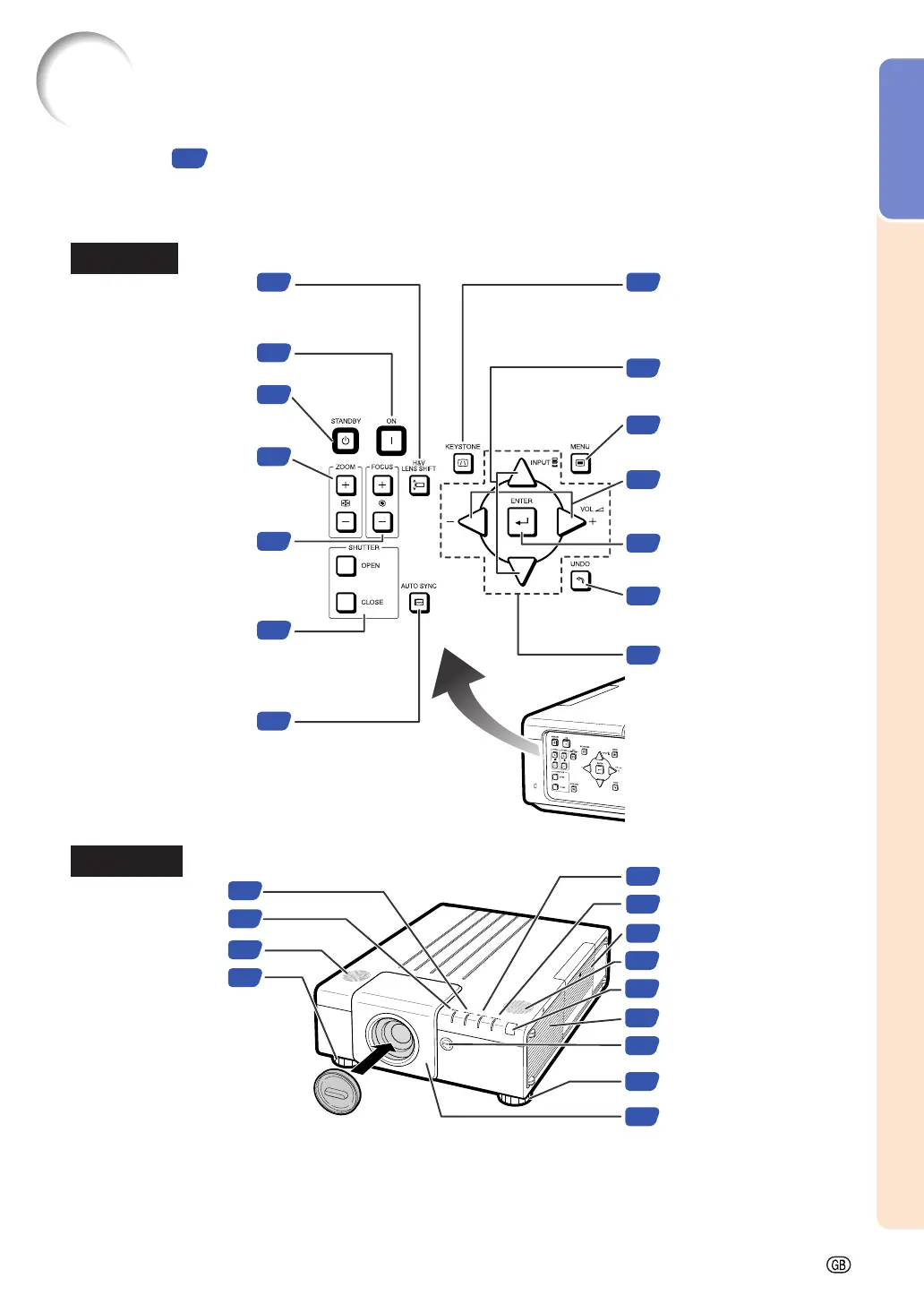

Part Names and Functions
Numbers in refer to the main pages in this operation manual where the topic is explained.
Rear View
Front View
