Video equipment,
Camera, Video game
S-video cable (commercially available)
S-video output terminal
Video output terminal
S-VIDEO
VIDEO
RCA audio cable (commercially available)
Audio output terminal
RCA audio cable (commercially available)
Audio output terminal
Video cable (commercially available)
Monitor
MONITOR OUT
RGB input terminal
RGB cable (supplied or commercially available)
Amplifier
MONITOR OUT
Audio output terminal

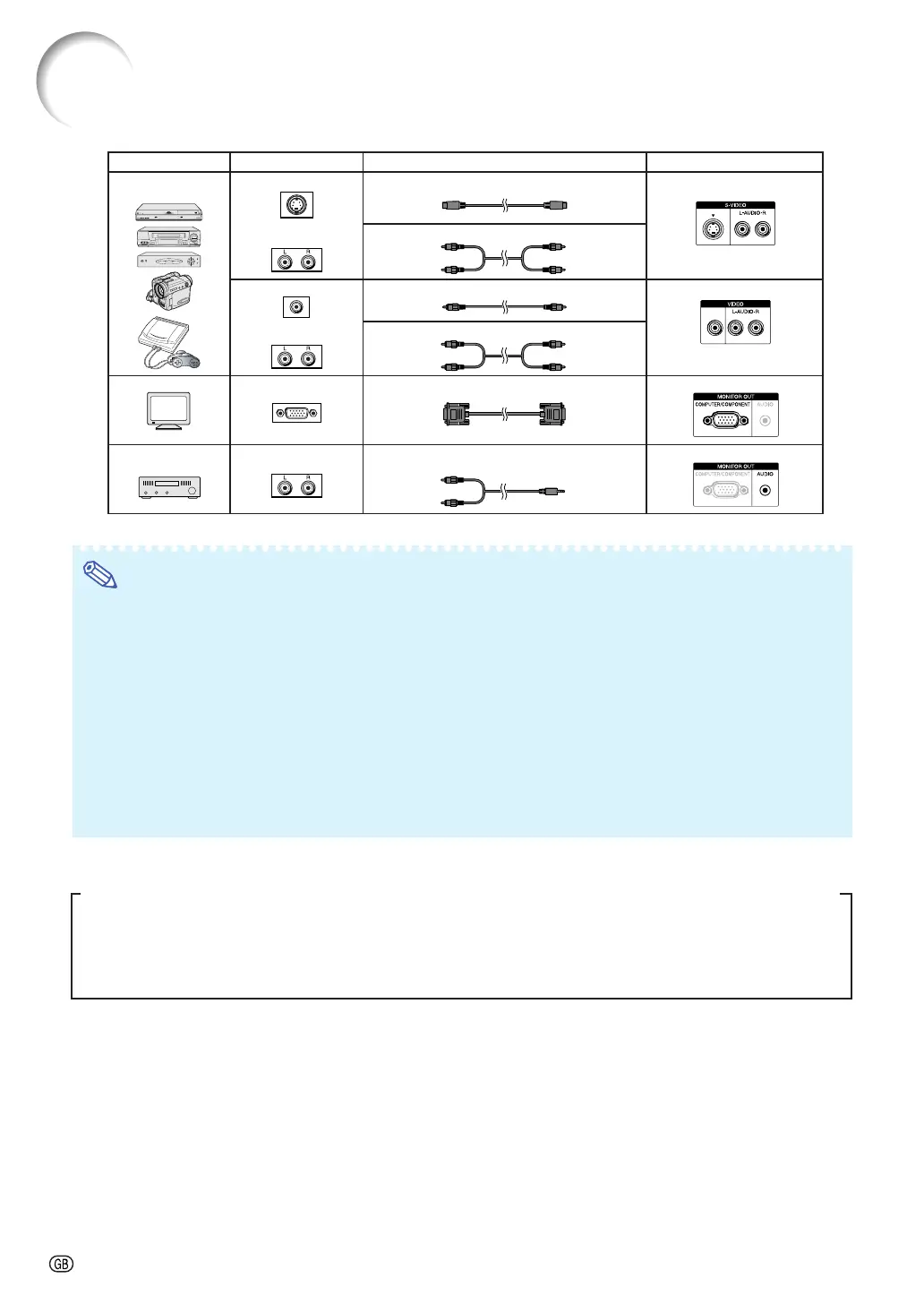

Equipment Cable Terminal on connected equipment Terminal on the projector
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
Note
• When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm
stereo audio cable.
• Video signal for monitor output is analog RGB signal as well as component signal (COMPUTER1/2). DVI
and HDMI input video signals would not be output.
• When the audio from HDMI input is directed to the MONITOR OUT (AUDIO) terminal, output will be
generated as Linear PCM audio.
• HDMI (High-Definition Multimedia Interface) is a digital AV interface that can deliver a high-definition
video signal, multi-channel audio signal, and bi-directional control signal all in just one cable.
• Because it is compatible with the HDCP (High-bandwidth Digital Content Protection) system, the digital
video signal does not degrade when transmitted, and a high-quality image with a simple connection can
be enjoyed.
• The HDMI terminal does not support the CEC signal.
Connecting the Projector to Other Equipment
This projector is able to process the following signals when connected to HDMI
equipment:
• Video signal: For details, see “HDMI Support” in the list of “Computer Compatibility Chart” on page 75.
• Audio signal: Linear PCM audio
• Sampling frequency: 48kHz/44.1kHz/32kHz
