Preparation for Use
System connections (continued)

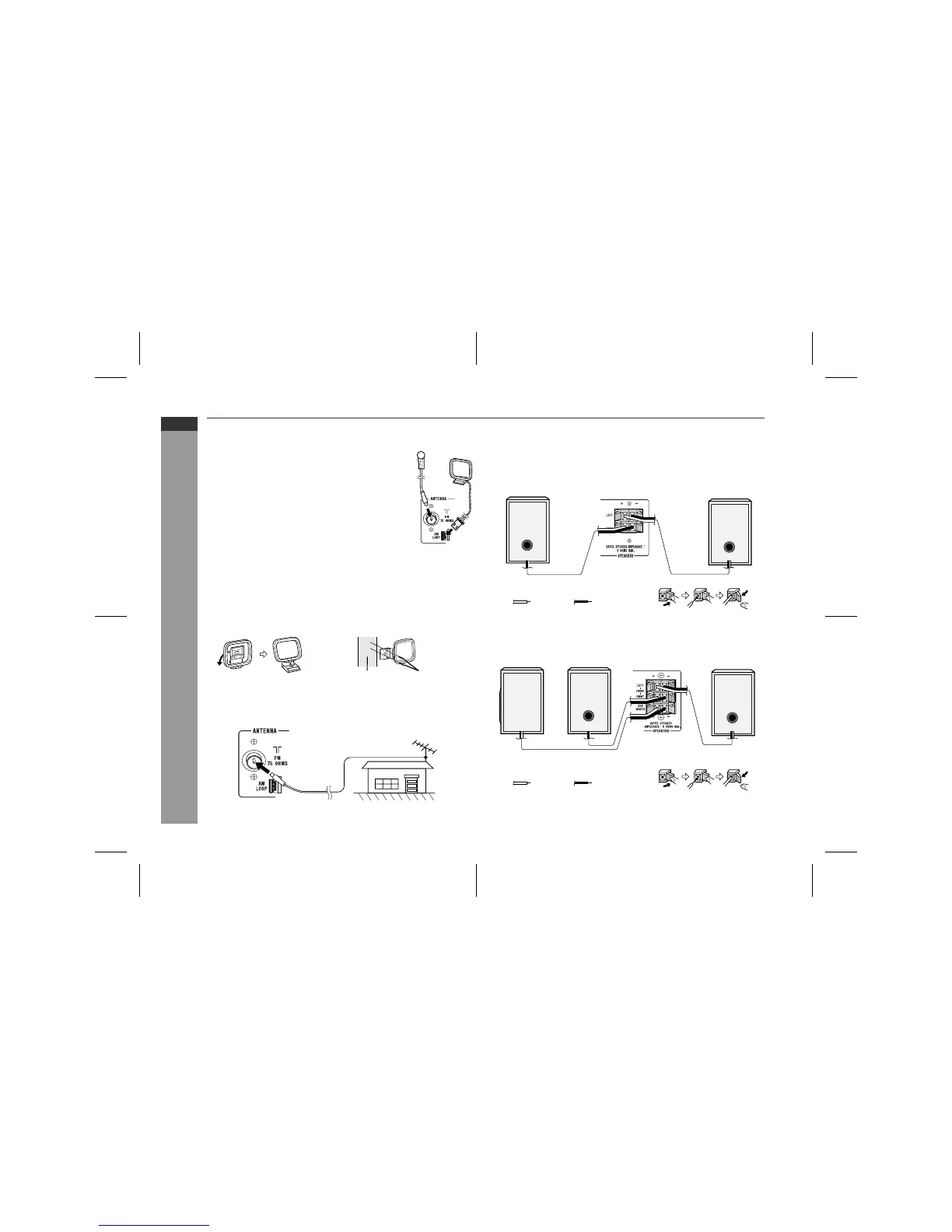

" Aerial connection
Note:
Placing the aerial on the stereo system or near the AC power lead
may cause noise pickup. Place the aerial away from the stereo sys-
tem for better reception.
Installing the AM loop aerial:
External FM aerial:
Use an external FM aerial if you require better reception. Consult
your dealer.
" Speaker connection
Connect the black wire to the minus (-) terminal, and the red wire to
the plus (+) terminal.
Supplied FM aerial:
Connect the FM aerial wire to the FM 75 OHMS
socket and position the FM aerial wire in the di-
rection where the strongest signal can be re-
ceived.
Supplied AM loop aerial:
Connect the AM loop aerial to the AM LOOP
socket. Position the AM loop aerial for optimum
reception. Place the AM loop aerial on a shelf,
etc., or attach it to a stand or a wall with screws
(not supplied).
< Assembling > < Attaching to the wall >
Wall Screws (not supplied)
External FM aerial
Red
Black
Red
Black
Front speaker
(right)
Subwoofer
(XL-MP444H)
Front speaker
(left)
Right speaker
(XL-MP333H)
Left speaker
