Sharp XR-1X User Manual

12
36
36
54
54
36
51
29
28
28
27
15
27
26
54
29

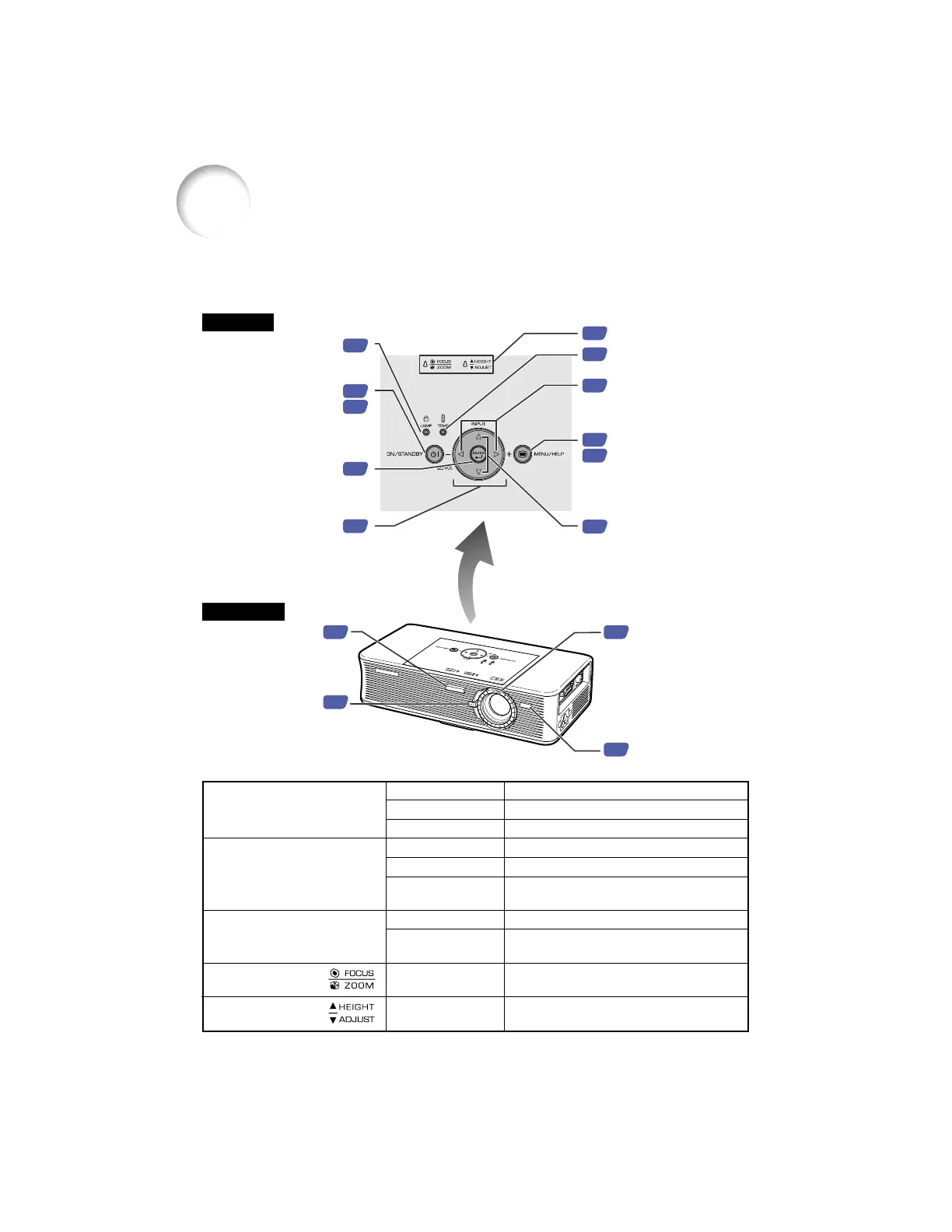

Top View
ON/STANDBY button
For turning the power
on and putting the
projector into standby
mode.
Lamp indicator
Temperature warning
indicator
Adjustment buttons
(W/Y/V/X)
For selecting menu
items.
Volume buttons (V/X)
For adjusting the
speaker sound level.
ENTER button
For setting items
selected or adjusted
on the menu.
MENU/HELP button
For displaying
adjustment and
setting screens, and
help screen.
Front View
Focus ring
For adjusting the
focus.
Zoom knob
For enlarging/
reducing the
picture.
INPUT button (W/Y)
For switching input mode
1, 2 or 3.
Remote control sensor
HEIGHT ADJUST
button
Numbers in Z refer to the main pages in this operation manual where the topic
is explained.
Part Names and Functions
Projector
Lamp indicator
Red on
ON/STANDBY button
Indicators on the Projector
Green on
Normal (Standby)
Normal (Power on)
Green on
Green blinks
Normal
The lamp is warming up or shutting down.
Temperature warning
indicator
Off
Red on
Normal
The internal temperature is abnormally
high. (See page 54.)
HEIGHT ADJUST
indicator
Orange blinks
FOCUS/ZOOM
indicator
Orange blinks
“1 FOCUS” or “3 ZOOM” is highlighted on
the Setup Guide. (See page 27.)
“2 HEIGHT ADJUST” is highlighted on the
Setup Guide. (See page 27.)
Red blinks Abnormal (See page 54.)
Red on The lamp is shut down abnormally or
requires to be changed. (See page 54.)
Setup Guide indicators
