Connecting to Video Equipment
The projector has a COMPUTER/COMPONENT terminal, an S-VIDEO terminal and a VIDEO ter-
minal for video input. See the illustration below to connect with the audio-visual equipment.
The image quality is highest in order of the component signal, the S-video signal and the video
signal. If your audio-visual equipment has a component output terminal, use the COMPUTER/
COMPONENT terminal (INPUT1) on the projector for video connection.

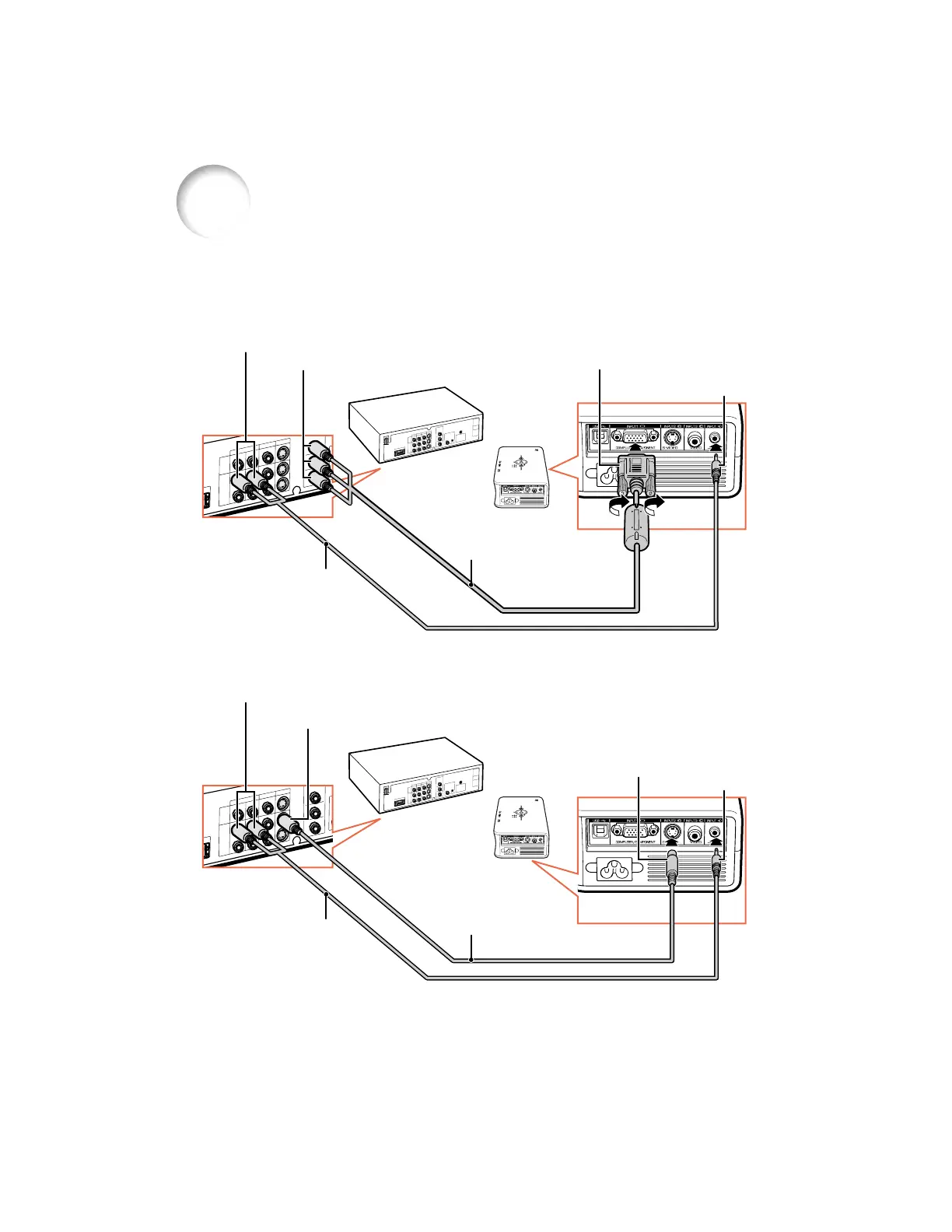

When using an S-video cable
To S-video output terminal
To audio output terminal
S-video cable
(commercially available)
ø3.5 mm minijack to RCA
audio cable (commercially
available)
When using a 3 RCA (Component) to 15-pin D-sub cable
3 RCA (Component) to
15-pin D-sub cable
(optional: AN-C3CP)
To AUDIO
INPUT terminal
To audio output terminal
ø3.5 mm minijack to RCA
audio cable (commercially
available)
To component output (Y, CB/PB, CR/PR) terminal
To INPUT1
terminal
To AUDIO
INPUT terminal
To INPUT2
terminal
