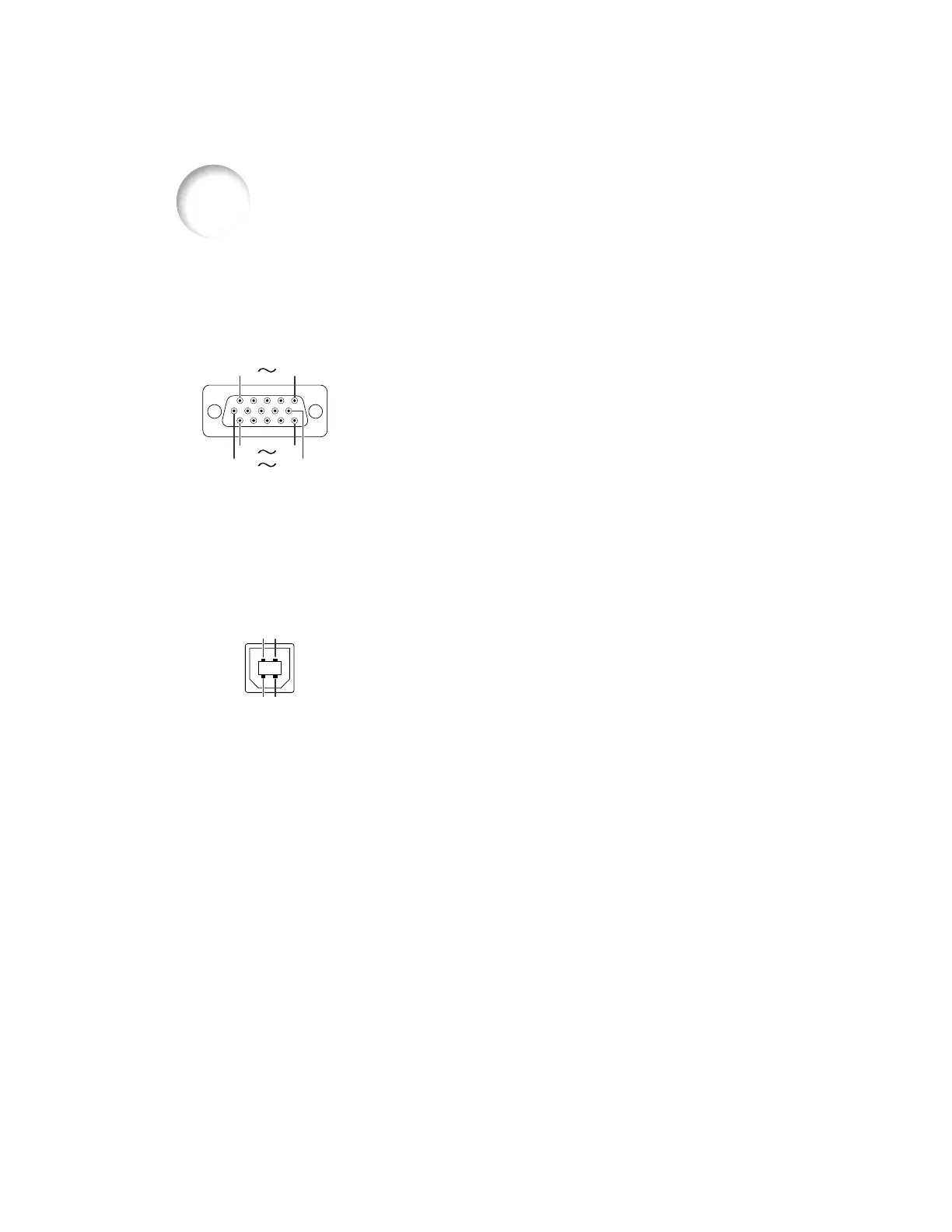

Connecting Pin Assignments
RGB Input
INPUT 1 RGB Signal Terminal: 15-pin Mini D-sub female connector
1. Video input (red)
2. Video input (green/sync on green)
3. Video input (blue)
4. Not connected
5. Not connected
6. Earth (red)
7. Earth (green/sync on green)
8. Earth (blue)
9. Not connected
10. GND
11. Not connected
12. Bi-directional data
13. Horizontal sync signal: TTL level
14. Vertical sync signal: TTL level
15. Data clock
USB Terminal: 4-pin B-type USB female connector
Component Input
5
10
15
1
11
6
3 4
12
1. PR (CR)
2. Y
3. PB (CB)
4. Not connected
5. Not connected
6. Earth (PR)
7. Earth (Y)
8. Earth (PB)
9. Not connected
10. Not connected
11. Not connected
12. Not connected
13. Not connected
14. Not connected
15. Not connected
1. SG
2. USB+
3. VCC
4. USB–
Signal
GND
USB data+
USB power
USB data–
Signal name
