29 | P a g e
CONTROL PANEL OVERVIEW

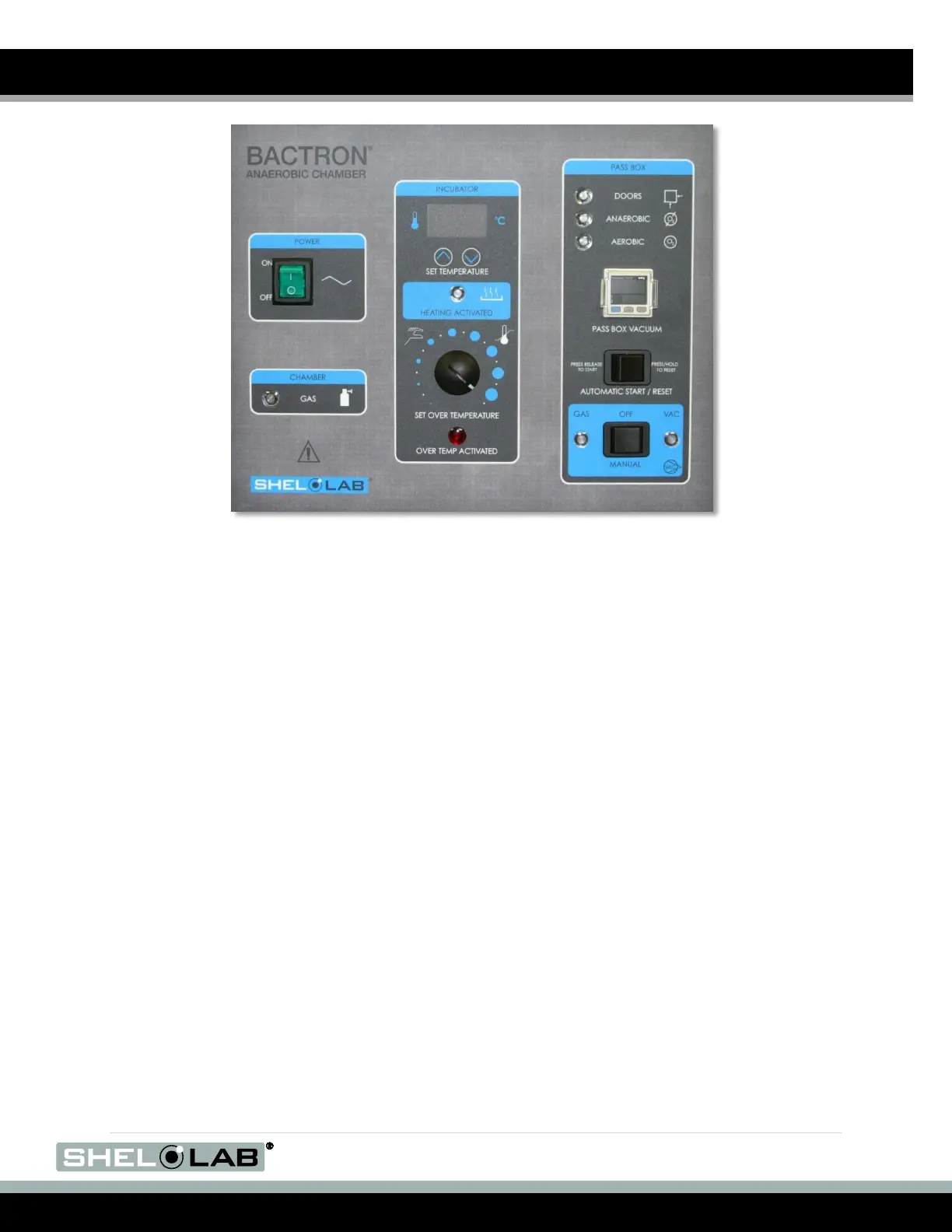

Figure 23: Main Control Panel
The main panel on all BACTRON models controls power to the workstation and the operation of pass box
cycles. It also indicates injections of AMG into the workspace chamber.
Main Panel Incubator Controls
BACTRON300
The Incubator controls on the main panel control the operations of the workspace incubator.
BACTRON600
The Incubator controls on the main panel control the operations of the side storage incubator.
BACTRON900
The Incubator controls on the main panel control the operations of the side storage incubator.
Controls for the workspace chamber incubator are located on the workspace control panel
(see page 32).
