05-201113-0EPage 5

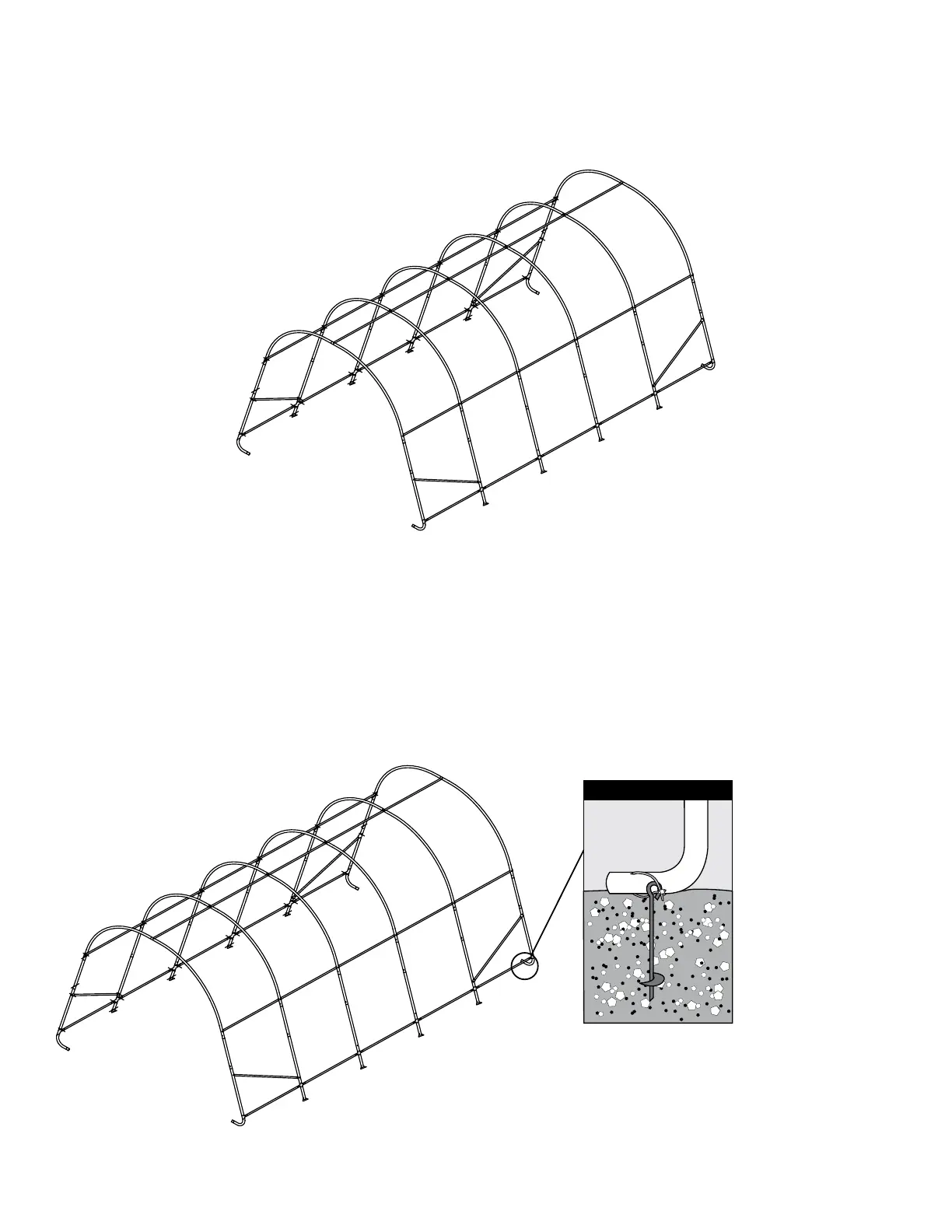

7. PROPERLY ANCHOR FRAME
A. Anchors must be placed inside shelter at the corners of the shelter. Insert a ¾" pipe or steel rod,
through the eyelet of the auger and screw the anchor into the ground until the eyelet is sticking out of the
ground by 1-2" so it can be anchored to the legs.
If ground is too hard, dig a hole with a shovel or post hole tool. Optional: Fill with cement.
B. Wrap cable provided through the eyelet of the anchor and around the frame as indicated in Detail H. Secure
the cable with the clamps provided.
6. SqUARING UP THE FRAME
A. Place frame in its nal location, which needs to be as at and level as possible.
B. Measure across opposite corners. These distances must be equal to within 1".
C. Check that the front and rear of the frame measures 12' in width.
End Rib Anchors
NOTE:
15" Augers are for temporary use only!
We recommend 30" Augers be used,
4 minimum for use in a permanent installation.
WARNING:
Serious injury to persons or property could result if
cover is installed and shelter is not anchored and is
left unattended. Shelter must be securely anchored.
To Next Page
