8.0 Mechanical Setup and Adjustments
3. Disconnect Molex pin #24 which frees up the platform motor, allowing the
platform to move.
4. From the left, observe the 4
th
binary code.
5. Holding the platform belt, raise and lower the platform in a rapid up-and-
down motion.
6. If the ‘0’ changes to a ‘1’ at any time during platform movement, the
harness has an unseen break in the conductive wire causing intermittent
breaks in the electric current. The harness should be replaced.

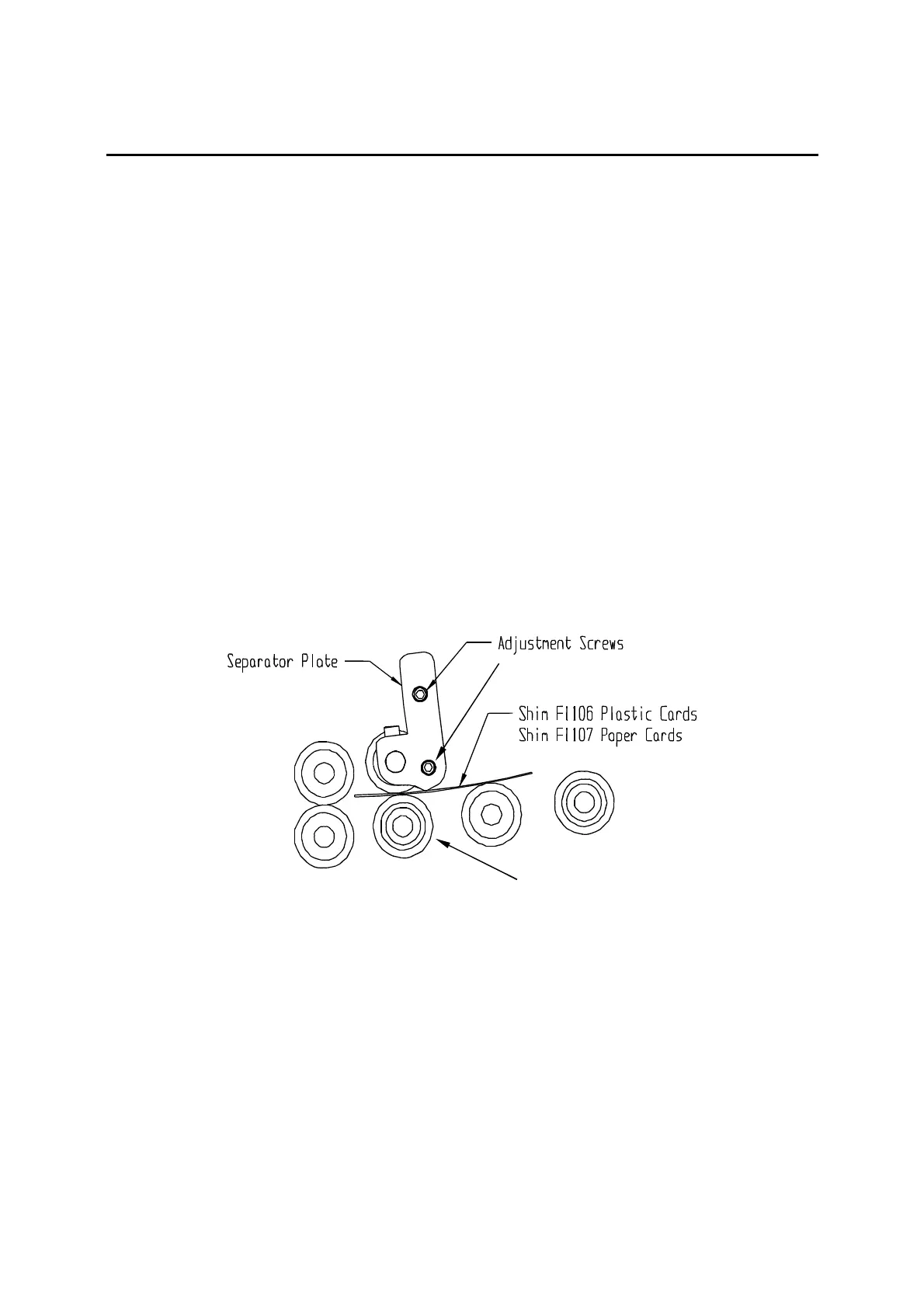

Brake Roller Assembly Adjustment
1. Loosen the four Separator Plate Adjustment Screws.
2. Insert shim F1106 or F1107 between upper and lower brake rollers.
3. Press firmly on the separator plate while tightening the screws.
4. Remove the shim and check the clearance by inserting two cards between
the brake rollers. Definite resistance must be felt with two cards.
5. If the brake roller clearance changes as the rollers turn, the lower brake
roller shaft (DU1043) may not be straight and will need to be replaced.
