43

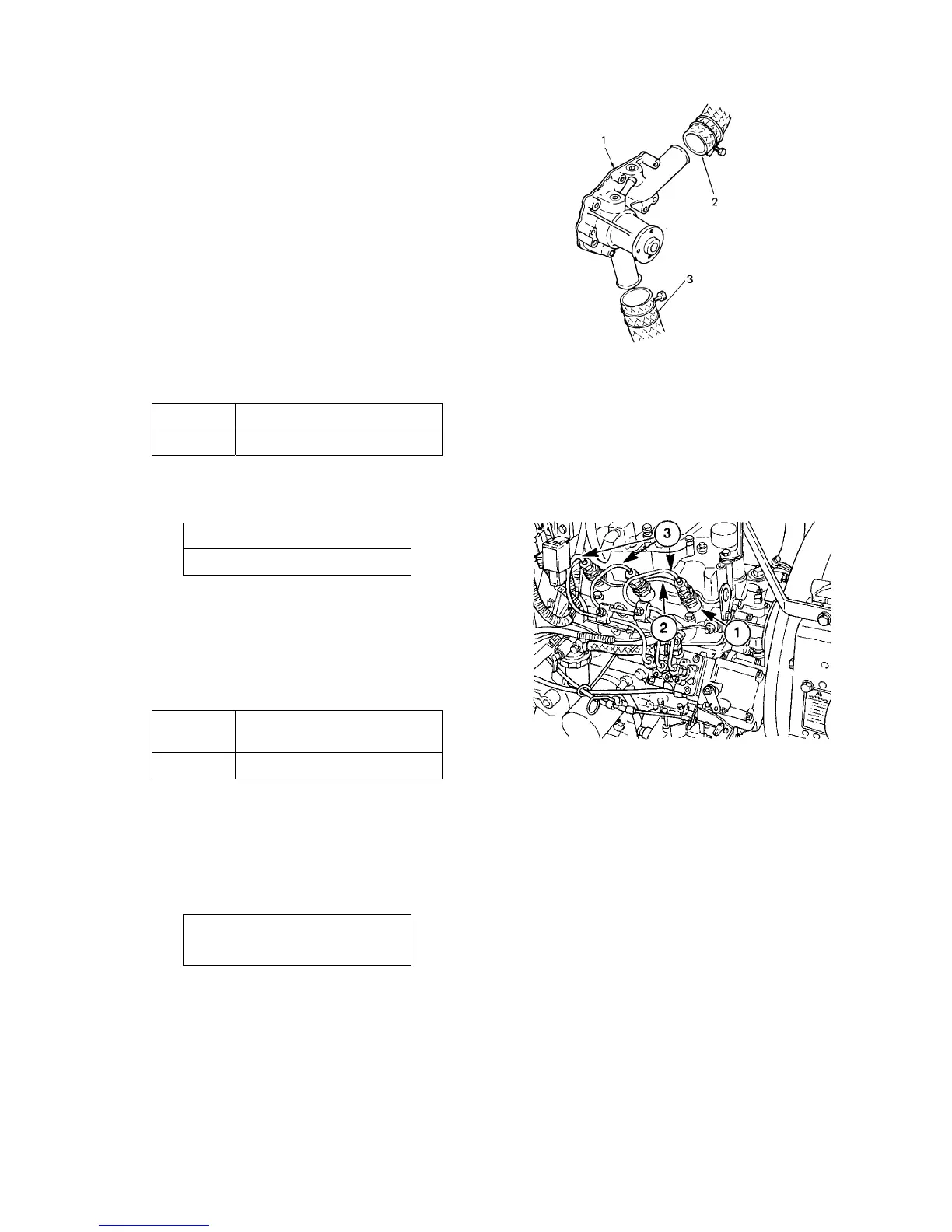

24 Water pump ass’y
Radiator hose
1. Water pump ass’y
2. Radiator hose (upper)
3. Radiator hose (lower)
25 Glow plug
Connector
Model Glow plug tightening torque
S773 15 – 20 N·m {1.5 – 2.0 kgf·m}
26 Oil pressure switch
Oil pressure switch tightening torque
15 – 20 N·m {1.5 – 2.0 kgf·m}
27 Nozzle and holder ass’y
Tighten the cap and gasket positively, tighten with
specified torque using a nozzle holder socket, and
install the return pipe.
Model
Nozzle and holder tightening
torque
S773 78 – 83 N·m {8.0 – 8.5 kgf·m}
28 Return pipe COMPL
Injection pipe
After installing the return pipe, install the injection
pipe.
Injection pipe tightening torque
19.6 – 24.5 N·m {2.0 – 2.5 kgf·m}
29 Alternator ass’y
Install the alternator ass’y taking care to the direction
of the adjusting plate.
174V
1. Nozzle and holder
2. Return pipe
3. Injection pipe
175V
To Next Page
