71

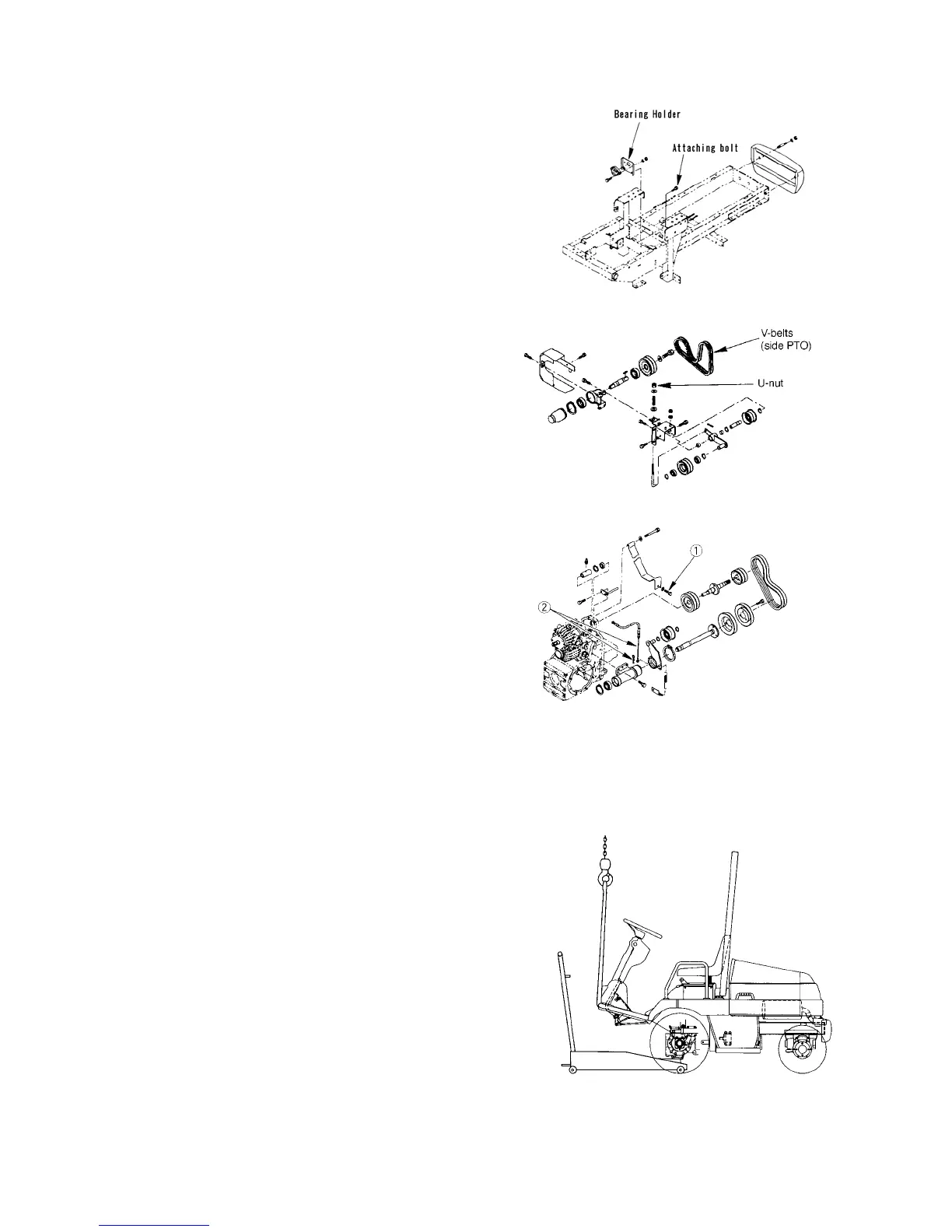

12. V-Belts
➀ Remove the V-belts for front PTO and side PTO as
follows:
· Remove the bearing holder attaching bolts for input
shaft.
· Untighten the tension U-nut for side PTO.
· Turn the bearing holder for make the gap and
remove the two V-belts from the input shaft pulley
for side PTO.
13. Front PTO tension wire
➀ Remove the bolt from left side frame for PTO belt
cover.
➁ Remove the sprit pin and tension wire from the
shift arm for front PTO.
14. Front axle and transmission assembly
➀ Pull up and hold the frame by the hoist.
➁ Support the bottom of front axle and transmission
assembly by the garage jack.
414V
415V
416V
417V
