4. Wheel shaft assemblies

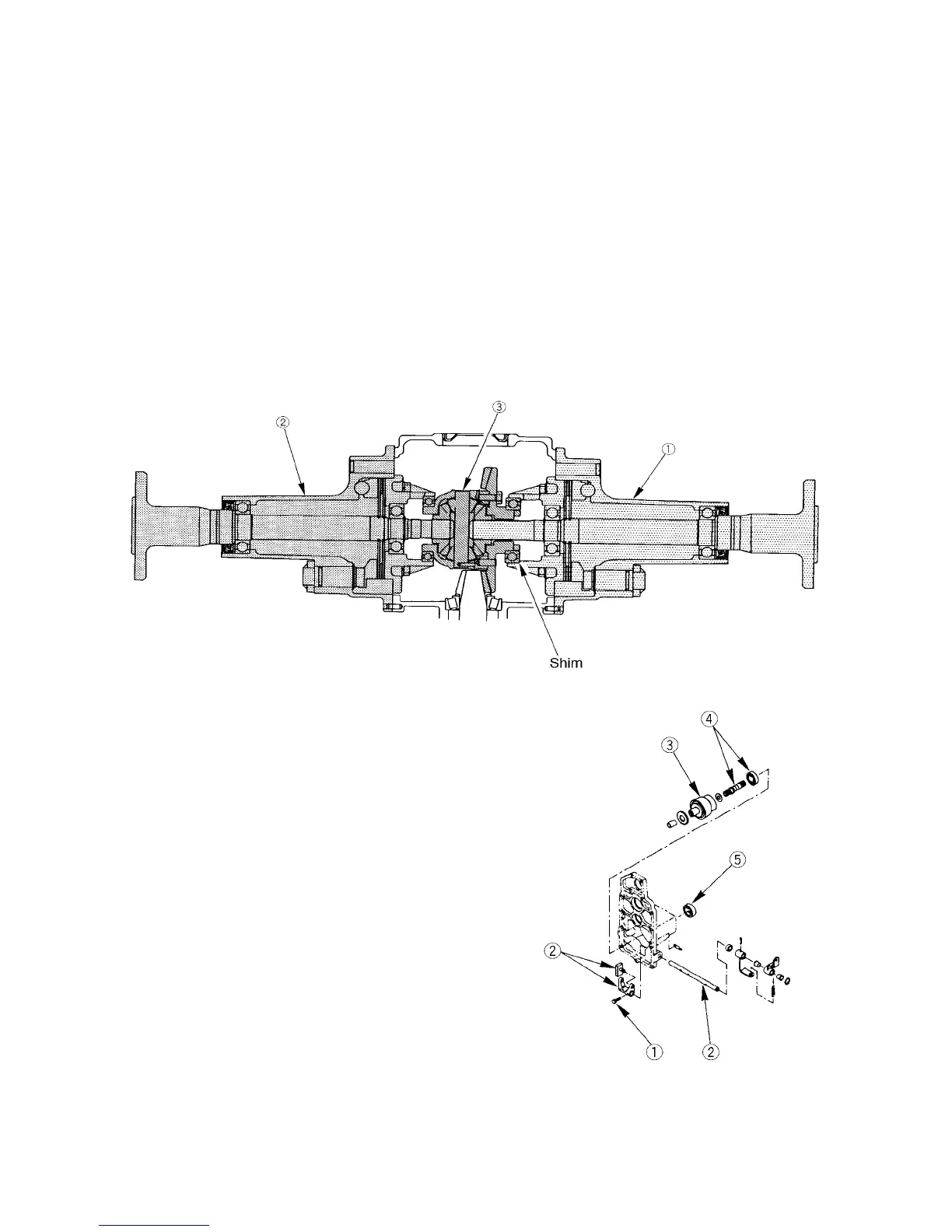

Remove the wheel shaft assemblies as follows:
➀ Remove the L.H. wheel shaft assembly from transmission housing at first.
NOTE:
1. Take care the differential assembly will be removed and fall down from in the housing.
2. Note the thickness and number of shims fitted between bearing carrier and bearing (No. 6010).
➁ Remove the differential assembly in the housing, if remaining.
➂ Remove the R.H. wheel shaft housing from transmission housing.
423V
5. Transmission cover
Remove the transmission cover and two way clutch
assembly as a set.
6. Two way clutch assembly
Remove the two way clutch assembly as follows:
➀ Heat the bolts head by burner, and then remove
them from the shifter fork.
➁ Slide the shaft out of the housing and take out
the shifter fork with two blocks.
➂ Remove the two way clutch assembly from in
the cover.
➃ Drive out the drive shaft and bearing from the
cover.
➄ If necessary, remove the oil seal.
424V
