2. Structure Characteristics and Working Principle
2.1 Main Functions
For cabinet dryer, materials to be dried are placed on the stainless steel made
moveable material trays. During operation, process air will flow to heating wire
and be heated up to required temperature, then flow through a manifold with
evenly scattered holes. Moisture air is sent out through air exhaust port. It is
designed to achieve an even drying effect.

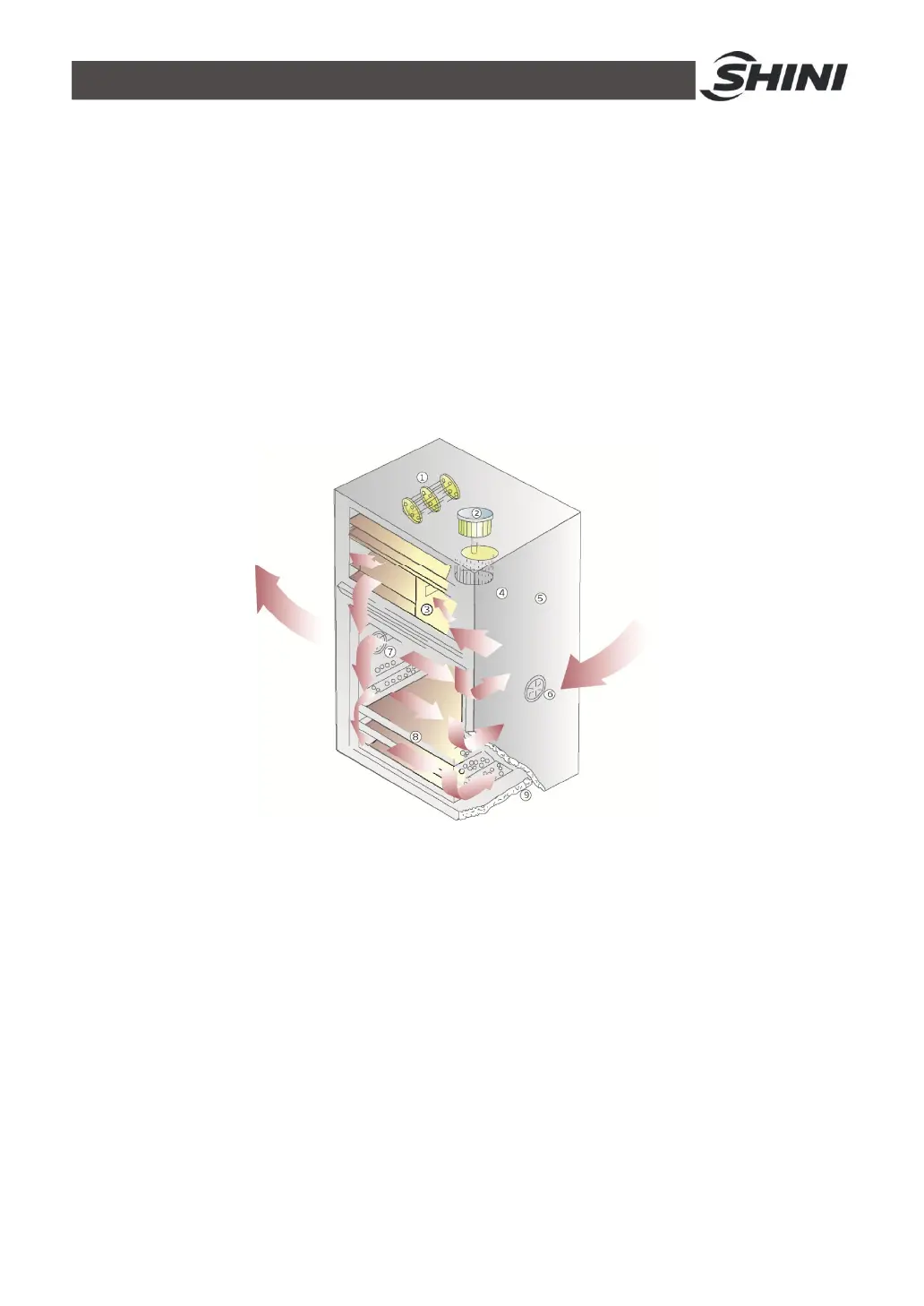

2.2 Working Principle Illustration
Names of Parts：
1. Heating Coil 2. Air Inlet Blower 3. Air Chamber
4. Multi-vane Impeller 5. Paint-baked Cover 6. Air Inlet
7. Air Exhaust 8. Stainless Steel Tray 9. Heat-resistant Layer
Picture 2-1：Working Principle Illustration
