40(44)
4.3 Adjustment of Air Rate
Adjustment of air rate is the most important factor for the drying result, should
adjust the air outlet and inlet when drying different material.
For example:
1) When heat and brake the electronic, galvanized and baked-finish products,
the air-inlet and air-outlet should be closed completely.
2) When dry up the plastic materials and other products contained much
moisture, the air-inlet and air-outlet should be opened properly.

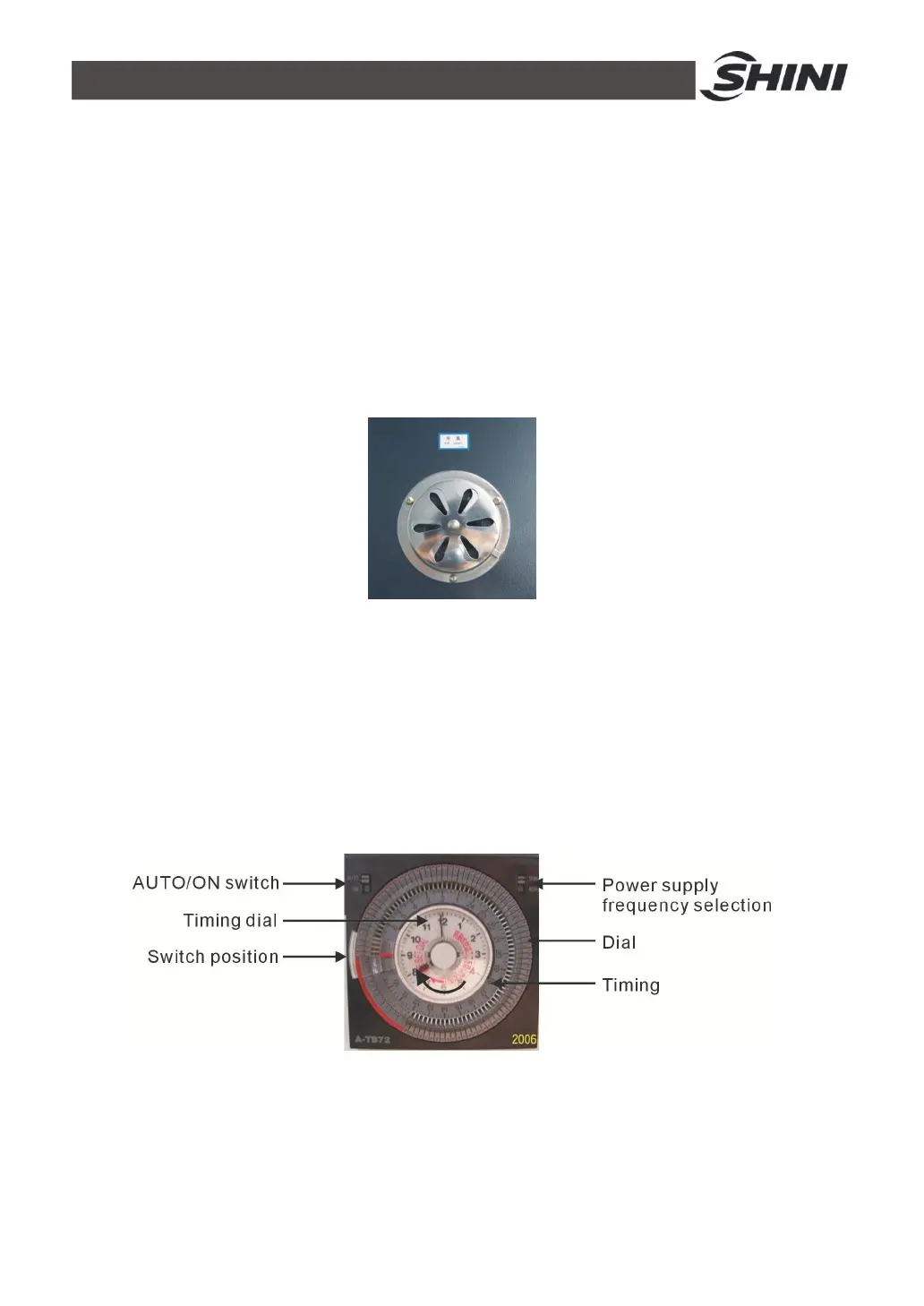

Picture 4-2：Adjustment of Air Rate
4.4 Start-up Timer Setting
Turn on timer switch after all switch has been on, take down the glassy shield
outside of the timer, then push the small black switch to "Auto". Set current time
and drying time required, cover the glassy shield. Therefore the cabinet dryer
will run automatically till drying time.
Picture 4-3：Start-up Timer Setting
Output setting
Open setting: Reverse the setting section of dial entad, at this time, red mark
appears in the dial.(shown in the above picture)
