3. Installation and Debugging
Install the CD Cabinet Dryer at a proper place where is easy for service and
maintenance.
3.1 Attentions during Installation
1) Make sure voltage and frequency of the power source comply with those
indicated on the manufacture's plate, which is attached to the machine.
2) Power cable and earth connections should conform with local regulations.
3) Use independent power cable and ON/OFF switch. The cable's size should
not smaller than those applied in the control box.
4) The power cable connection terminals should be tightened securely.
5) The machine requires a 3-phase 4-wire power source, and connection of
power lead (L1, L2, L3) to the live wires, and the earth (PE) to the ground.
6) Power supply requirements:
Main power voltage: ±5%
Main power frequency: ±2%
3.2 Machine Installation Distance

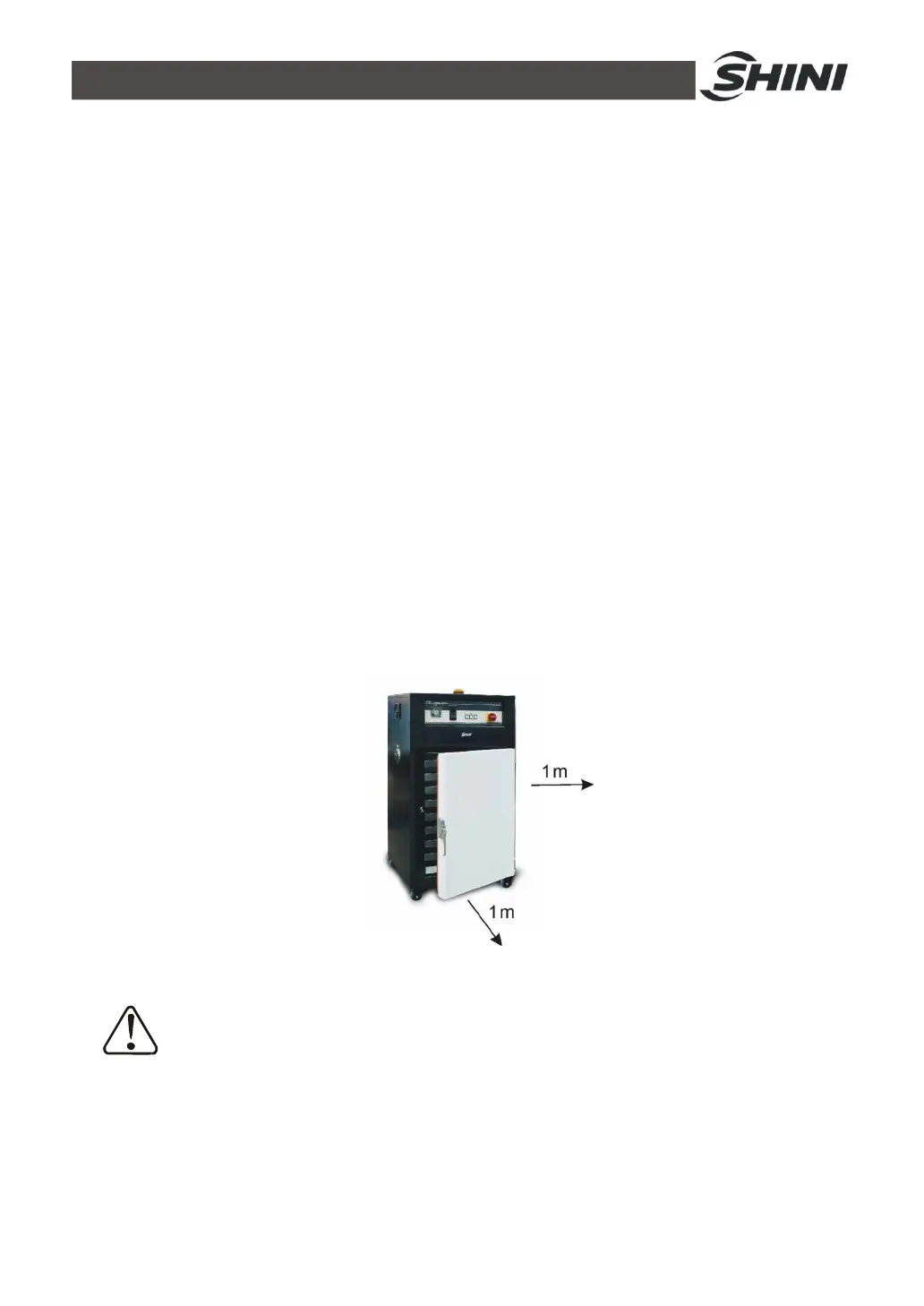

Picture 3-1：Machine Installation Distance
Note!
Keep the machine 2M from the combustible distance.
