18(33)
3.2 Installation of Vacuum Hopper Receiver SMH Optional
Storage Collective Hopper SCH-U
SAL-G
Material
storage
tank
IMM

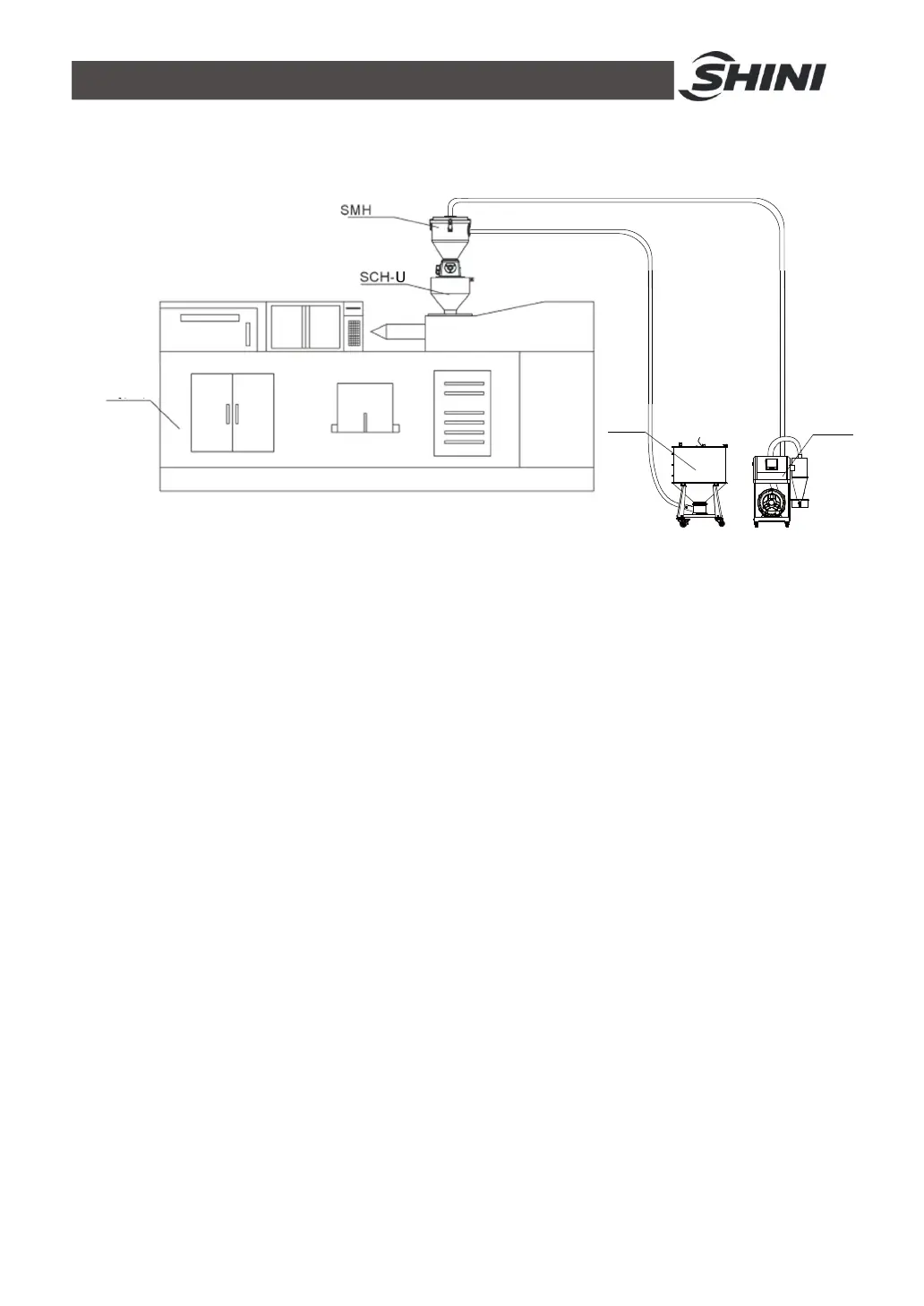

Picture 3-3: Optional SCH-U Installation Layout
SMH vacuum hopper can option with collection hopper SCH-U for direct
mounting at material inlet of the molding machine.
Installation:
1) Mount the SCH-U at material inlet of molding machine, point to the holes and
lock the screws.
2) Put the SMH on the SCH-U, point to the holes and lock the screws, then
connect the signal wire to the hopper loader of SAL-G.
3) Connect the air inlet of vacuum hopper with steel wire hose separately to
corresponding air inlet of SAL-G. Connect the material inlet of storage silo to
the material inlet of vacuum hopper.
To Next Page
