7. UNIT INSTALLATION VM-5G
-13-

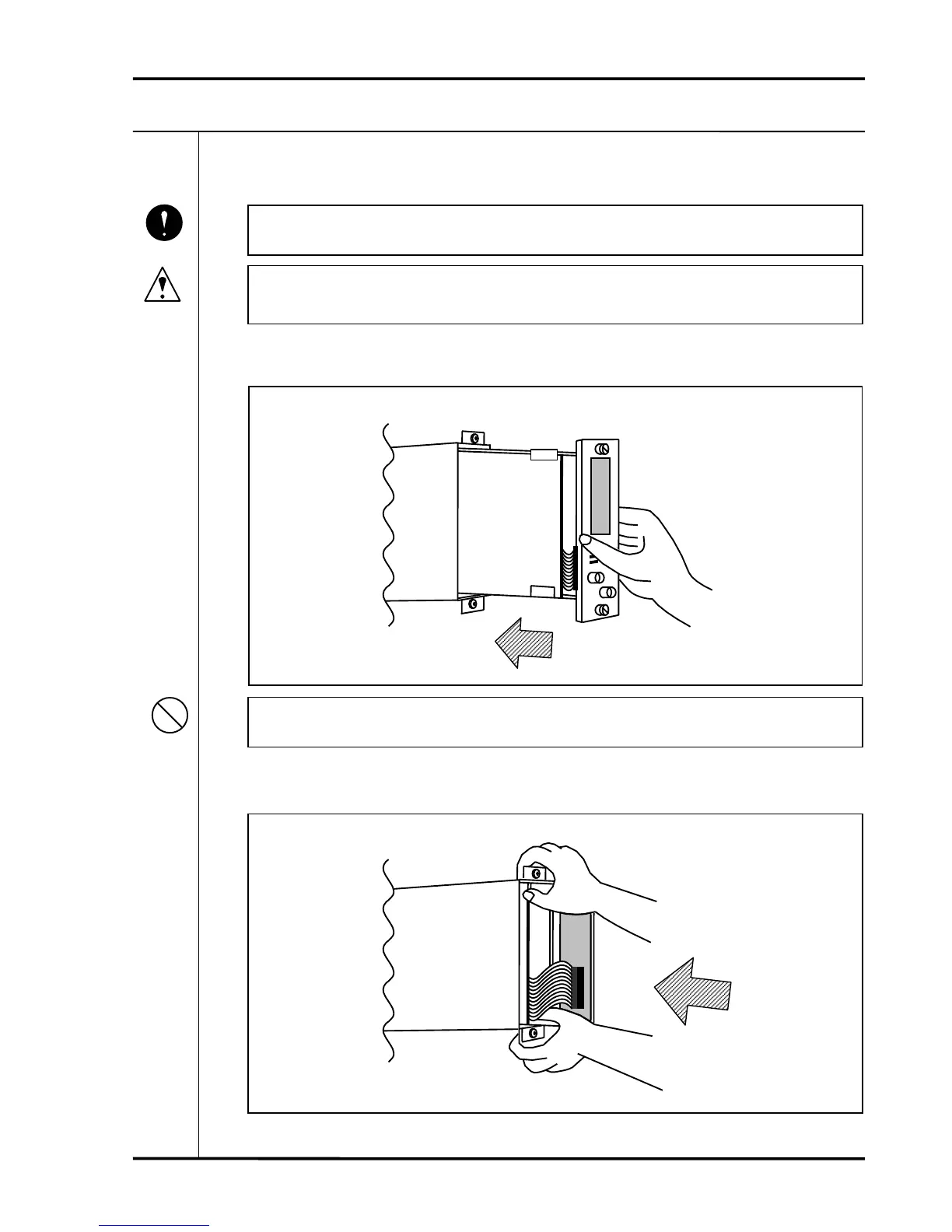

7-2 MOUNTING OF MONITOR
• Make sure to turn off the power.
• Failure to turn off the power before pulling the monitor unit out of the instrument rack
will result in serious damage and accidents.
1) Align the monitor chassis with the grooves in the top and bottom of the instrument rack and
push it into the rack.
• Make sure not to touch the chassis.
2) Next open the face plate sideways and insert the unit card located behind it firmly into the
connector.
Mandatory
Caution
Prohibition
