CHAPTER 2: HANDLEBAR EXTENSION / RISER INSTALLATION
WARNING! Aerobars are attached to the front of your bicycle, and as a result, proper and secure installation is critical. Improper
installation or adjustment may result in damage to the bicycle or its components or in an accident which can cause serious injury or
death.
WARNING! Aerobars can require riding positions that are new or different to many riders, which may cause you to lose control and fall.
Continue to look forward while riding and not down towards the ground. We advise that you practice using these aerobars in a low traffic
area to become accustomed to any changes in the steering or handling of your bicycle.
1. INSTALLING THE EXTENSION RISERS

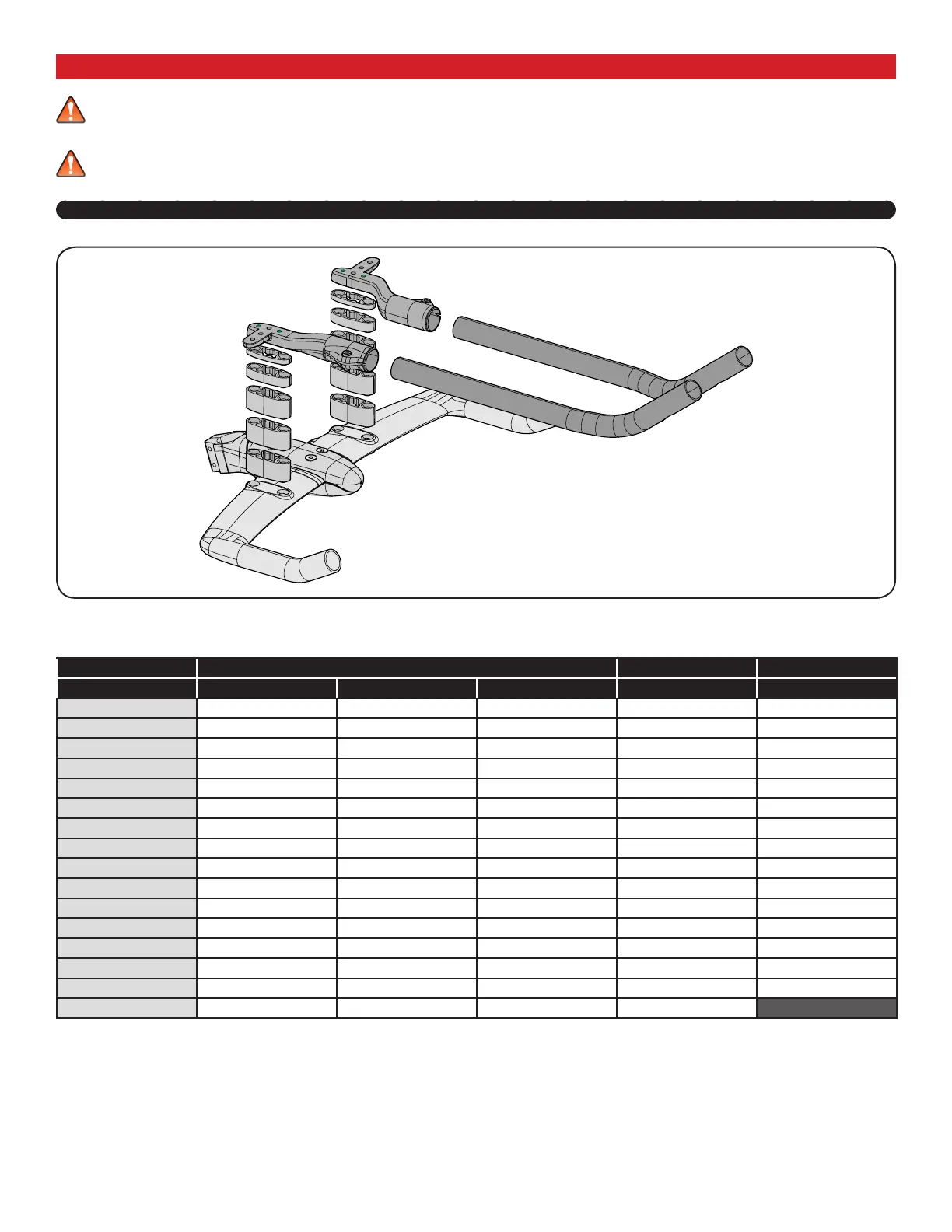

EXPLODED PARTS VIEW:
These Aerobars can be adjusted in many ways to provide the ideal fit for the rider. Your Authorized Specialized Dealer can help you find that ideal fit. The
Specialized supplied risers allow for a height adjustment of the Aerobars. Use the following Riser Chart to determine the correct bolt length and use of supplied
risers for the corresponding stack height:
RISER CARBON BAR ALLOY BAR
STACK HEIGHT 20mm 10mm 5mm BOLT LENGTH BOLT LENGTH
0mm 25mm 30mm
5mm 1 30mm 35mm
10mm 1 35mm 40mm
15mm 1 1 40mm 45mm
20mm 1 45mm 50mm
25mm 1 1 50mm 55mm
30mm 1 2 55mm 60mm
35mm 1 1 1 60mm 65mm
40mm 2 65mm 70mm
45mm 2 1 70mm 75mm
50mm 2 2 75mm 80mm
55mm 2 1 1 80mm 85mm
60mm 3 85mm 90mm
65mm 3 1 90mm 95mm
70mm 3 2 95mm 100mm
75mm 3 1 1 100mm
