2. INSTALLING THE CLAMPS, EXTENSIONS AND ARM PADS
DEPTH RANGE: <10mm
H

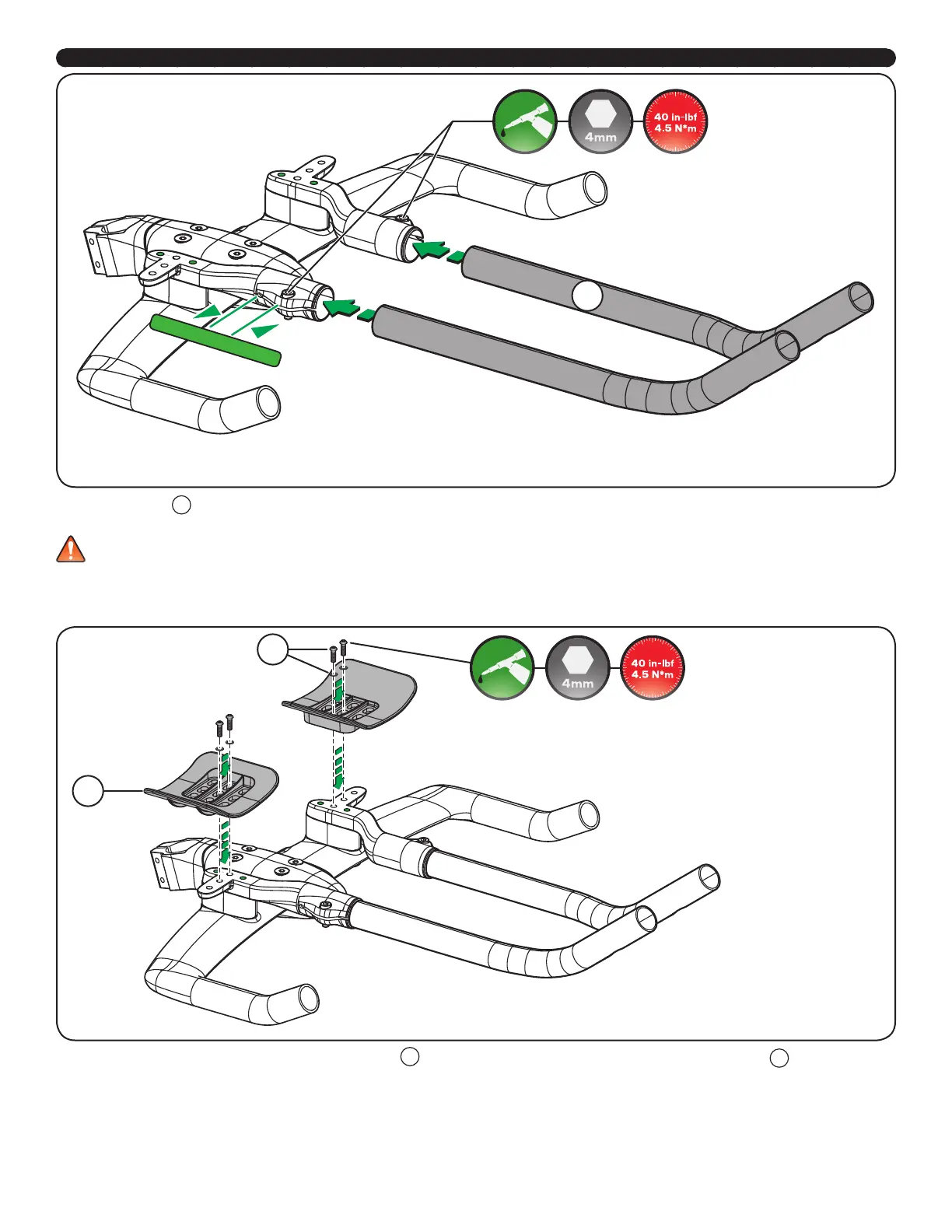

4. Trim extensions
H
to the desired length, then install the extensions in the brackets. If the extensions are difficult to insert into the brackets, apply a
light coat of grease to the opening of the bracket before installing the extensions.
WARNING! The extension bracket allows for a maximum adjustable depth range of 10mm. In order to ensure secure attachment of the
extensions, the space between the end of the slot and the end of the extension should be less than 10mm. Improper installation may
result in an accident which can cause serious injury or death.
NOTE: The extensions have the option of being switched to either side, for a wider or narrower hand position. They can also be rotated inward or
outward to fine-tune the angle of the hand position (see page 11).
I
J
5. Apply grease to the bolts, then install the arm pad holders
I
on the extension clamps with 2 x pad holder bolts and washers
J
(M6x10mm
length, 4mm Allen hex round head bolts). The pad holders have three lateral and three fore-aft position options (see page 11).
