Shiv S-works - Installing Cable Routing Cover Plate; Installing Cable Routing Control Tower

Page 15 of 23

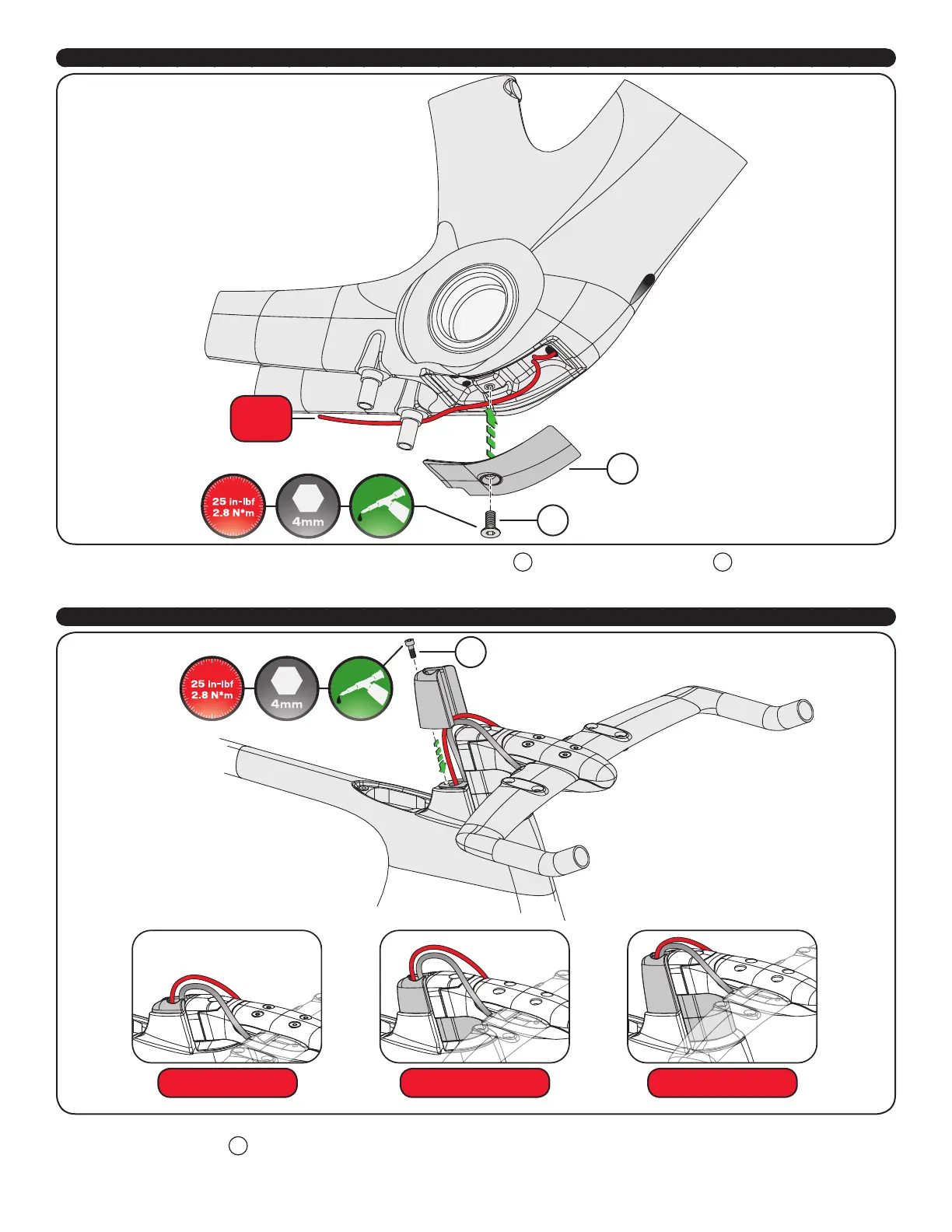

4. INSTALLING THE CABLE ROUTING COVER PLATE
E
F
To
battery
10. Once the wiring or cable housing is routed, install the cable routing cover plate
E
, followed by the cover plate bolt
F
(M6x15mm, 3mm
countersunk Allen hex head). Apply grease to the bolt.
11. Torque the bolt to 25 in-lbf (2.8 Nm).
5. INSTALLING THE CABLE ROUTING CONTROL TOWER
G
Small tower, no spacer Medium tower, 1 spacer Large tower, 2 spacers
12. Once the bike fit has been finalized, choose the Control Tower that corresponds to the final amount of spacers. Attach the Control Tower to the
frame using the tower bolt
G
(M5x20mm, 4mm Allen hex head). Apply grease to the bolt.
13. Torque the bolt to 25 in-lbf (2.8 Nm).
