2. INSTALLING THE FRONT BRAKE ASSEMBLY
A
B
C

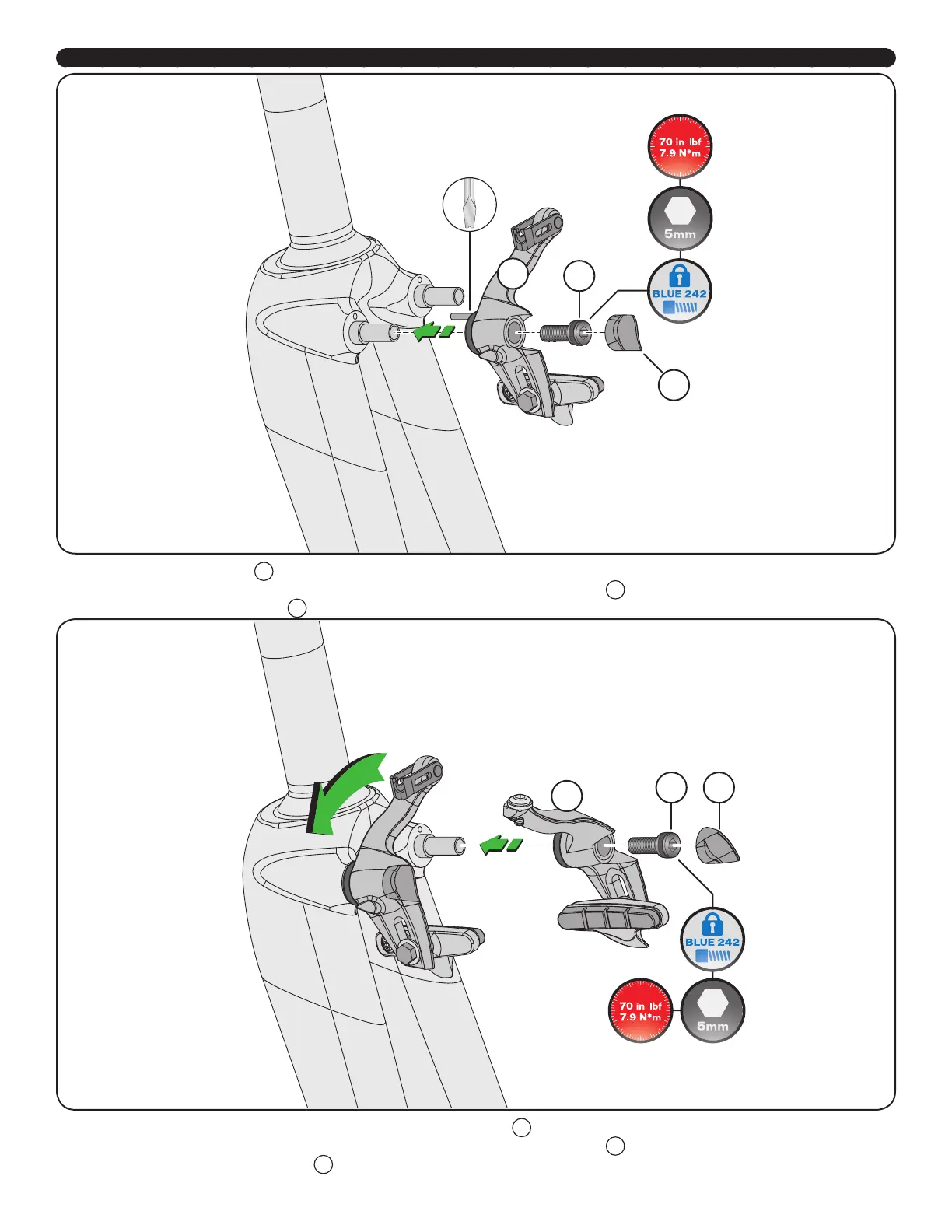

4. Install the drive-side brake arm
A
. A flathead screwdriver with a notch in the flat edge can help rotate the spring into the fork’s spring hole.
5. If the bolts do not have blue loctite from the factory, apply blue loctite, then install the brake bolt
B
and tighten to 70 in-lbf (7.9 Nm).
6. Install the drive-side brake bolt cover
C
.
D
E F
7. Rotate the drive-side brake out of the way and install the non-drive-side brake
D
.
8. If the bolts do not have blue loctite from the factory, apply blue loctite, then install the brake bolt
E
and tighten to 70 in-lbf (7.9 Nm).
9. Install the non-drive-side brake bolt cover
F
.
