Shiv S-works - System with no Riser Spacers; System with Riser Spacers

Page 9 of 23

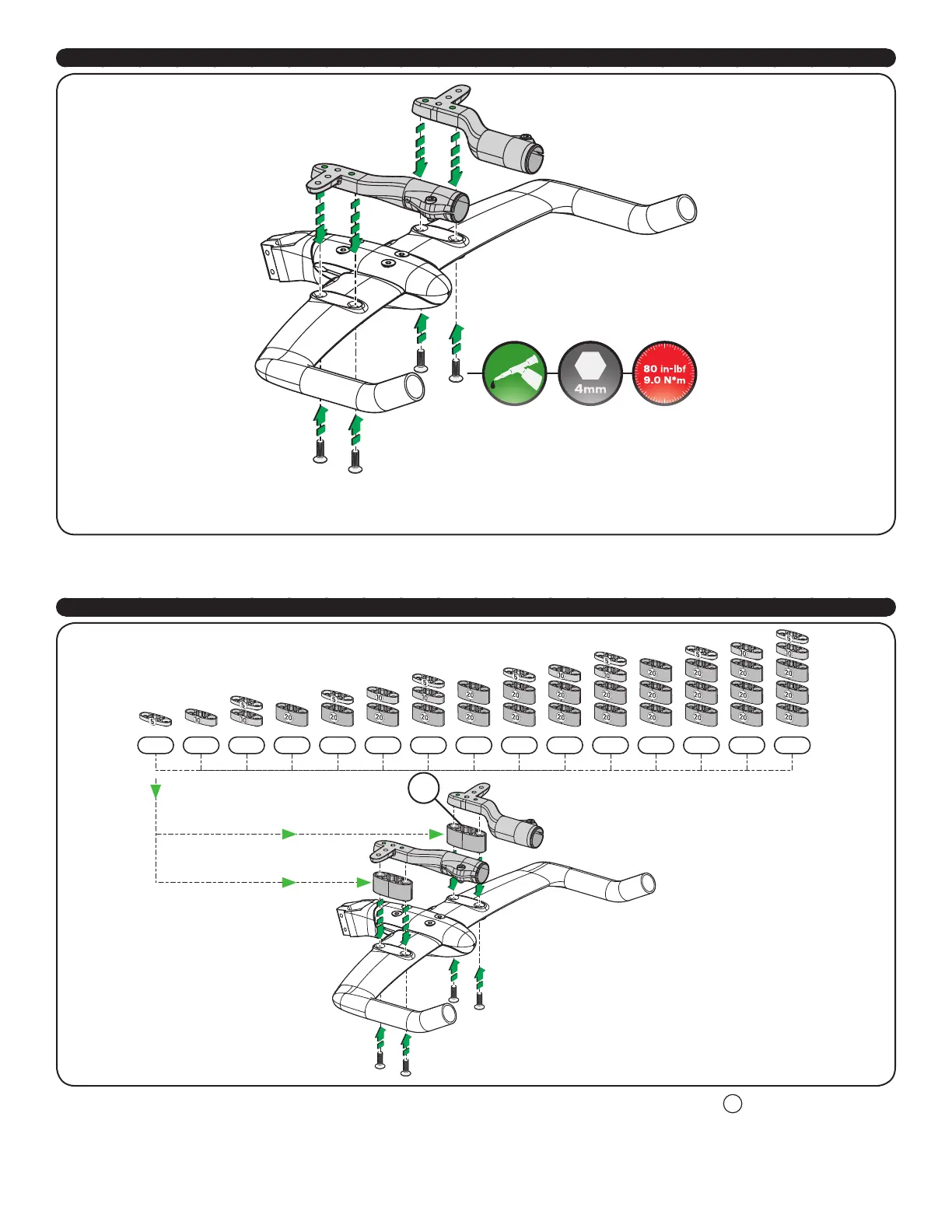

SYSTEM WITH NO RISER SPACERS:
1. Apply grease to the bolts, then install the bolts through the handlebar, through the risers and into the extension brackets. Refer to the chart (see
page 8) for the corresponding bolt length.
2. Torque the bolts to 80 in-lbf (9.0 Nm).
SYSTEM WITH RISER SPACERS:
5mm 10mm 15mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm
C
3. Additional extension riser stack height can be achieved (5 to 75mm) by stacking different combinations of riser parts
C
, in increments of 5mm.
Refer to the chart (see page 8) for the corresponding bolt length.
* The alloy aero bars are equipped with a total of 10mm (2x5mm) of extension risers per side. Additional parts are available to provide up to 70mm of extension
riser height, in a separate Service Parts Kit.
