Note:
You can quickly access the status of the port with the input port button (06). See 6.4. Input Ports
Monitoring on page 14–15 for more information.

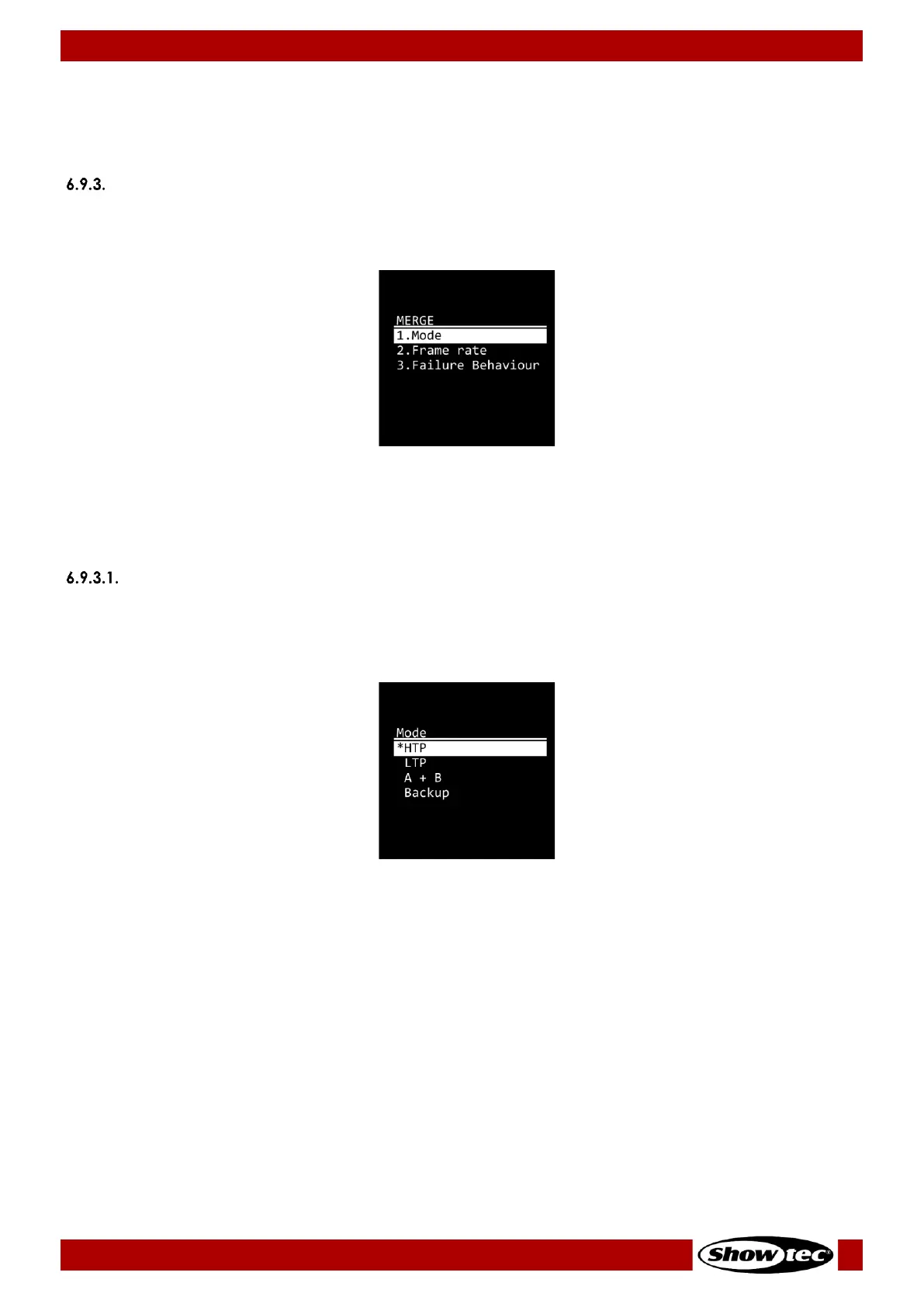

Merge
In this menu you can configure the merging options.
01) Press the UP/DOWN buttons to select one of the following 3 options:
● Mode: See 6.9.3.1. Mode for more information
● Frame rate: Select the frame rate. There are 4 options available: DMX 40 Hz,
DMX 30 Hz, DMX 20 Hz and DMX 10 Hz
● Failure Behaviour: See 6.9.3.2. Failure Behavior for more information
02) Press the ENTER button to confirm the selection.
Mode
In this submenu you can select the merging mode. See 6.6. Merge Function on page 16 for more
information.
01) Press the UP/DOWN buttons to select one of the following 4 options:
● HTP
● LTP
● A + B: Select the last channel for Input A. The remaining channels from the 512
channels in total will be used for Input B
● Backup
02) Press the ENTER button to confirm the selection.
