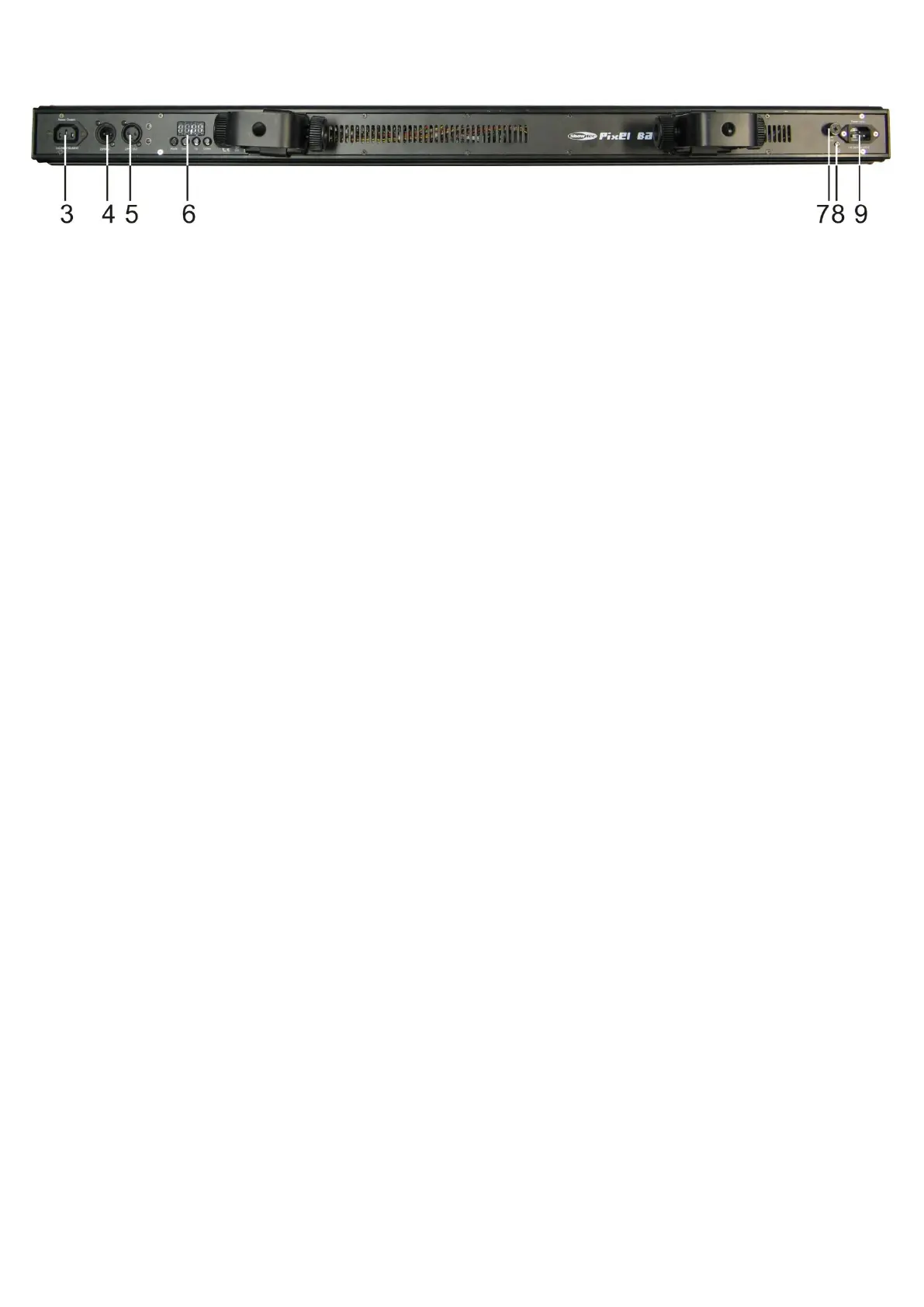

Backside
Fig. 2
3) IEC Power Out
4) DMX signal connector (IN) 3-pin
5) DMX signal connector (OUT) 3-pin
6) LCD Display + Menu buttons
7) Fuse 250V / 1A
8) Earth
9) IEC Power In
Installation
Remove all packing materials from the Pixel Bar 12. Check that all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
