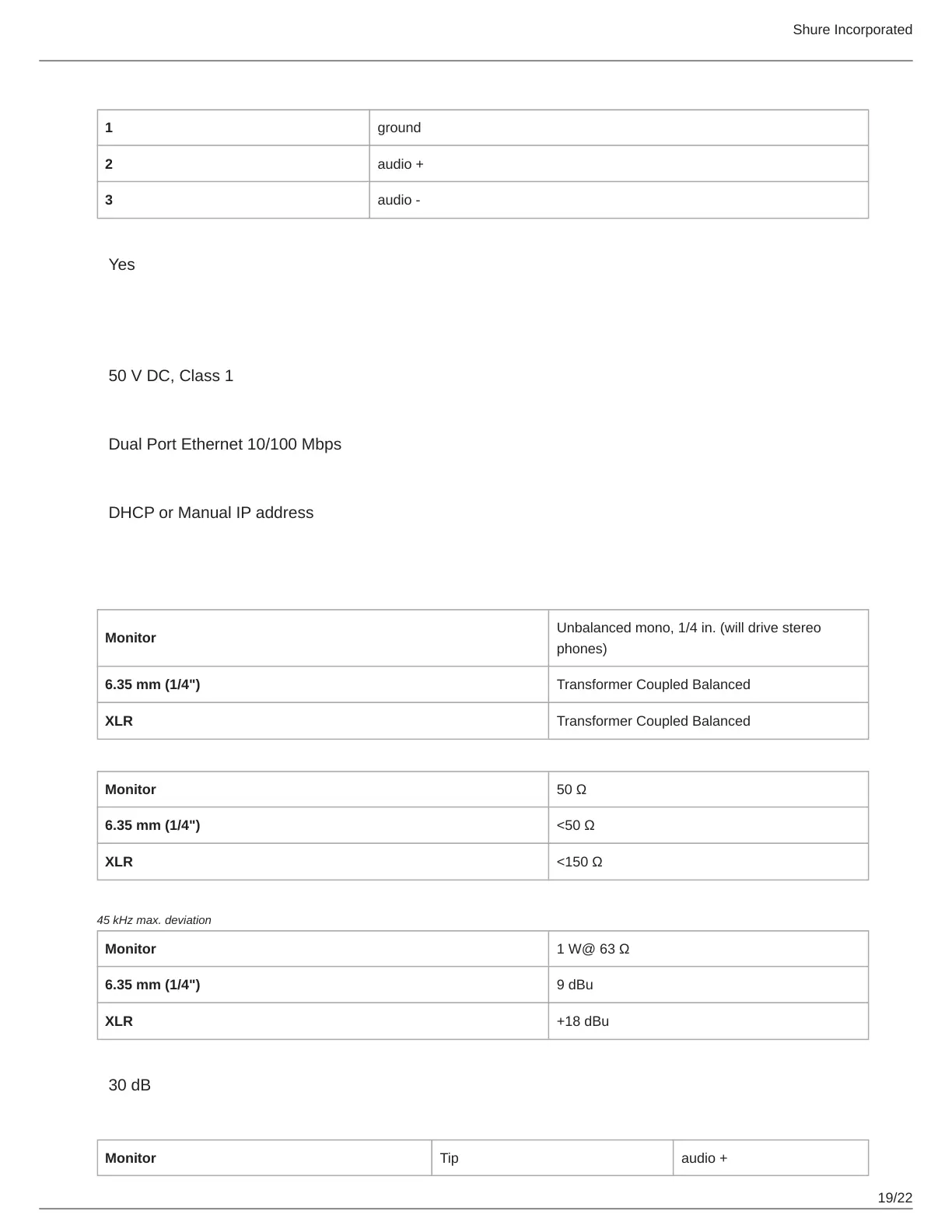

Pin Assignments
1 ground
2 audio +
3 audio -
Phantom Power Protection
Yes
Networking
Power Over Ethernet (PoE)
50 V DC, Class 1
Network Interface
Dual Port Ethernet 10/100 Mbps
Network Addressing Capability
DHCP or Manual IP address
Analog Audio Output
Configuration
Monitor
Unbalanced mono, 1/4 in. (will drive stereo
phones)
6.35 mm (1/4") Transformer Coupled Balanced
XLR Transformer Coupled Balanced
Impedance
Monitor 50 Ω
6.35 mm (1/4") <50 Ω
XLR <150 Ω
Maximum Signal Level
45 kHz max. deviation
Monitor 1 W@ 63 Ω
6.35 mm (1/4") 9 dBu
XLR +18 dBu
Mic/Line Switch
30 dB
Pin Assignments
Monitor Tip audio +
