Shure BLX Series User Manual

BLX®

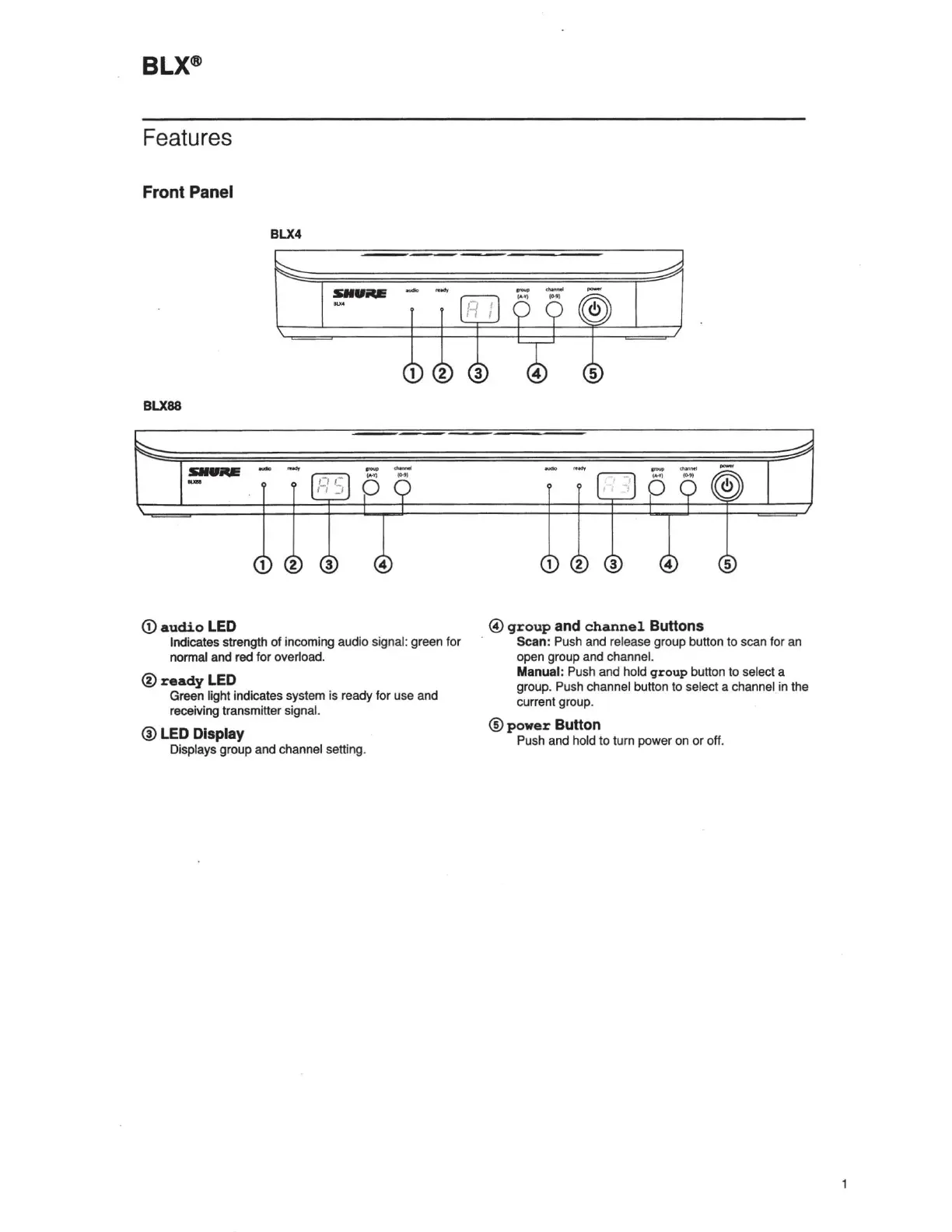

Features
Front Panel
BLX4
SHU~
-
BLX88
--•--
.... -
-
2
©audio LED
Indicates strength of incoming audio signal: green for
normal and red for overload.
@ready LED
Green light indicates system is ready for use and
receiving transmitter signal.
@ LED Display
Displays group and channel setting.
@ group and channel Buttons
Scan: Push and re le ase group button to scan for an
open group and channel.
Manual: Push and hold group button to select a
group. Push channel button to select a channel in the
current group.
® power Button
Push and hold to turn power on or off.

Shure BLX Series Specifications

General

Transmitter Type	Handheld, Bodypack
Frequency Response	50 Hz to 15 kHz
Operating Range	Up to 300 ft (91 m)
Transmitter Battery Life	Up to 14 hours
RF Output Power	10 mW
System Type	Wireless
Operating Frequency	Varies by region (512-542 MHz, 542-572 MHz, 572-602 MHz, 606-636 MHz, 662-692 MHz, 694-703 MHz, 740-752 MHz, 823-832 MHz, 863-865 MHz)
Receiver Output Connectors	XLR
Modulation	FM
Power Source	AA batteries (transmitter), DC power supply (receiver)
Dimensions (Transmitter)	Varies by model
Weight (Transmitter)	Varies by model
Dimensions (Receiver)	Varies by model
Weight (Receiver)	Varies by model
Audio Output Impedance	50 ohms
