Shure BLX Series User Manual

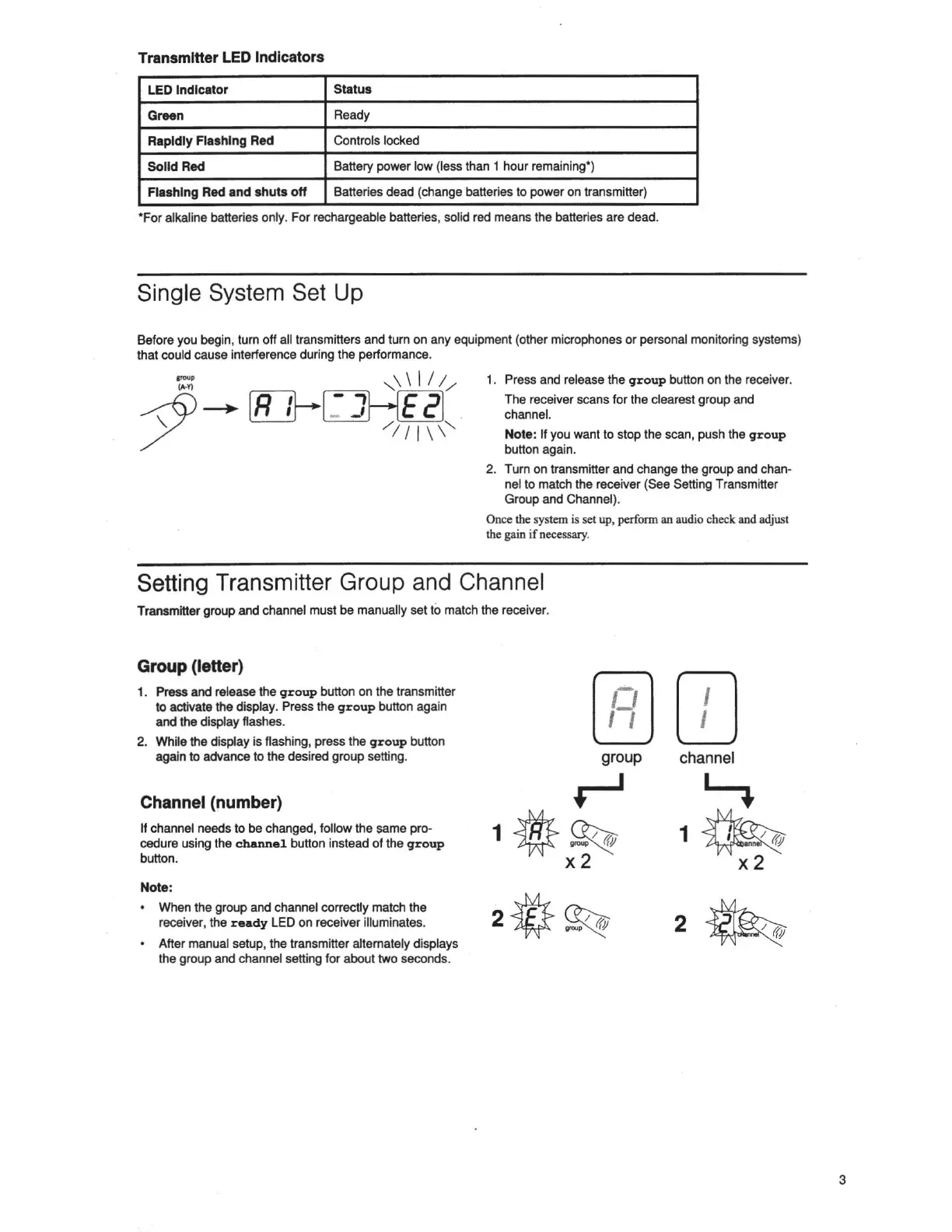

Transmitter LED Indicators
LED Indicator Status
Green
Ready
Rapldly Flashlng Red Controls locked
Solld Red
Battery power low (less than 1 hour rema ining•)
Flashlng Red and shuts off Batteri es dead (change batte ri es to power on transmitter)
•For alkaline batteries only. For rechargeable batteries, so lid red means the batteries are dead.
Single System Set Up
Before you begin, turn off all transmitters and turn on any equipment (other microphones or pe rs onal monitor ing sys t em s)
that could cause interference during the performance.
1. Press and release the group button on the receiver.
The receiver scans for the clearest group and
channel.
Note: If you want to stop the scan, push the group
button aga in.
2. Turn on transmitter and change the group and cha n-
nel to match the receiver ( See Setti ng T rans mi tte r
Gr oup and Channel).
Once the system is se t up, perform an au dio check and adj us t
the gain if necessary.
Setting Transmitter Group and Channel
Transmitter group and channel must be manually set to match the receiver.
Group (letter)
1. Press and release the group button on the transmitter
to activate the display. Press the group button again
and the display flashes.
2. While the display is flashing, press the group button
again to advance to the desired group setti ng .
Channel (number)
If channel needs to be changed, follow the same pro-
cedure using the channel button instead of the group
button.
Note:
• Wh en the group and channel correctly match the
receiver, the ready LED on rece iver illuminates.
• After manual setup, the transmitter alternately displays
the group and channel setti ng for about two seconds.
fol
~
group
r
1*~
x2
OJ
channel
7
1 ~
x2
3

Shure BLX Series Specifications

General

Transmitter Type	Handheld, Bodypack
Frequency Response	50 Hz to 15 kHz
Operating Range	Up to 300 ft (91 m)
Transmitter Battery Life	Up to 14 hours
RF Output Power	10 mW
System Type	Wireless
Operating Frequency	Varies by region (512-542 MHz, 542-572 MHz, 572-602 MHz, 606-636 MHz, 662-692 MHz, 694-703 MHz, 740-752 MHz, 823-832 MHz, 863-865 MHz)
Receiver Output Connectors	XLR
Modulation	FM
Power Source	AA batteries (transmitter), DC power supply (receiver)
Dimensions (Transmitter)	Varies by model
Weight (Transmitter)	Varies by model
Dimensions (Receiver)	Varies by model
Weight (Receiver)	Varies by model
Audio Output Impedance	50 ohms
