Shure BLX Series User Manual

2

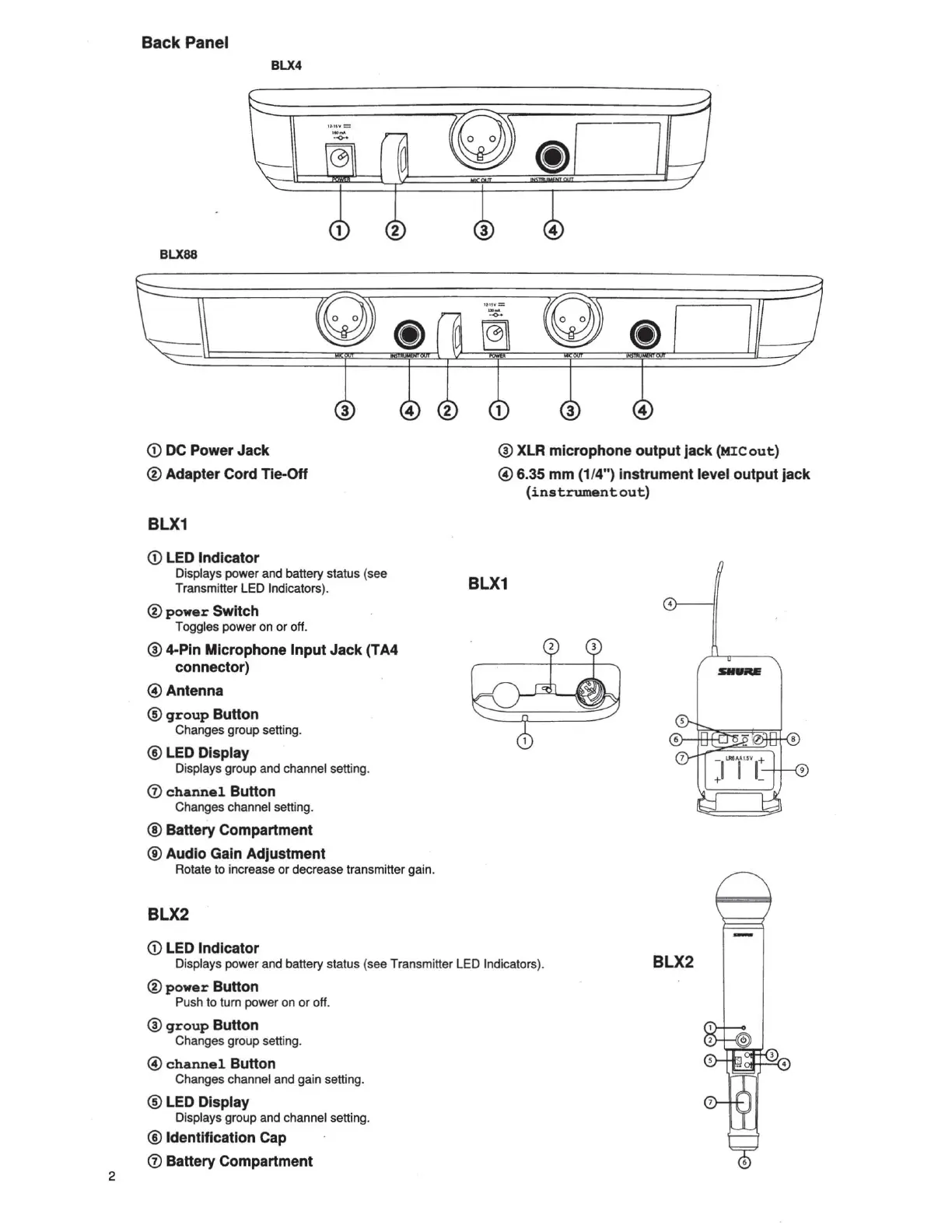

Back Panel
BLX4
BLX88
© DC Power Jack
@ Adapter Cord Tie-Off
BLX1
© LED Indicator
Displays power and battery status (see
Transmitter LED Indicators).
@power Switch
Toggles power on or off.
@4-Pin Microphone Input Jack (TA4
connector)
©Antenna
@ group Button
Changes group setting.
@ LED Display
Displays group and channel setting.
® channel Button
Changes channel setting.
@ Battery Compartment
@ Audio Gain Adjustment
Rotate to increase or decrease transmitter gain.
BLX2
© LED Indicator
•
4
@ XLR microphone output Jack (MIC out)
© 6.35 mm (1 /4 ") instrument level output jack
(instrument out)
BLX1
Displays power and battery status (see Transmitter LED Indicators).
BLX2
@ power Button
Push to turn power on or off .
@ group Button
Changes group setting.
© channel Button
Changes channel and gain setting.
@ LED Display
Displays group and channel setting.
@ Identification Cap
® Battery Compartment

Shure BLX Series Specifications

General

Transmitter Type	Handheld, Bodypack
Frequency Response	50 Hz to 15 kHz
Operating Range	Up to 300 ft (91 m)
Transmitter Battery Life	Up to 14 hours
RF Output Power	10 mW
System Type	Wireless
Operating Frequency	Varies by region (512-542 MHz, 542-572 MHz, 572-602 MHz, 606-636 MHz, 662-692 MHz, 694-703 MHz, 740-752 MHz, 823-832 MHz, 863-865 MHz)
Receiver Output Connectors	XLR
Modulation	FM
Power Source	AA batteries (transmitter), DC power supply (receiver)
Dimensions (Transmitter)	Varies by model
Weight (Transmitter)	Varies by model
Dimensions (Receiver)	Varies by model
Weight (Receiver)	Varies by model
Audio Output Impedance	50 ohms
