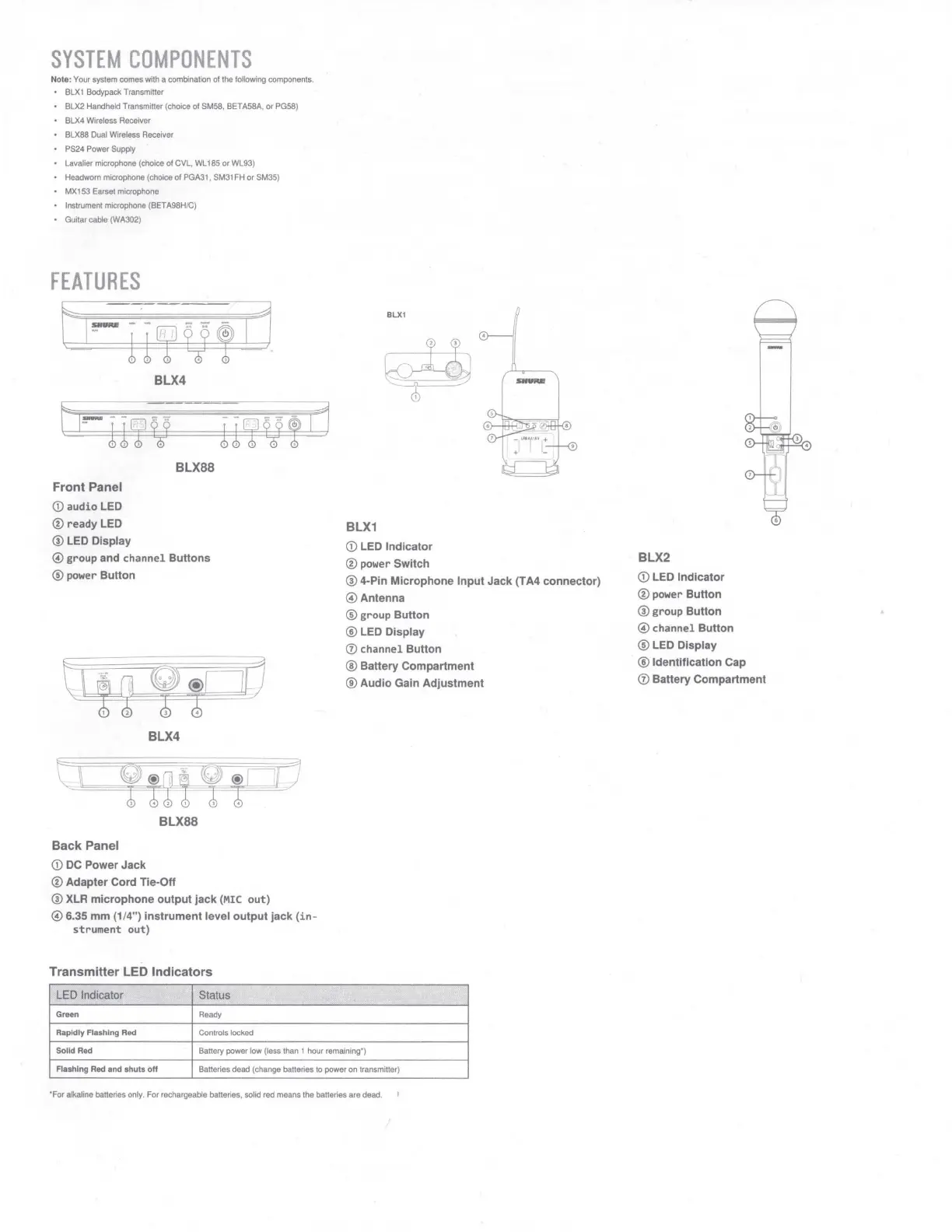

SYSTEM
COMPON
E
NTS
No
te:
Your system comes with a combination of the following components.
BLX1
Bodypack Transmitter
BLX2 Handheld Transmitter (choice of SM58, BETA58A,
or
PG58)
BLX4 Wireless Receiver
BLX88 Dual Wireless Receiver
PS24 Power Supply
Lavalier microphone (choice of CVL, WL 185 or WL93)
Headworn microphone (choice of PGA31 , SM31 FH or SM35)
MX153 Earset microphone
Instrument microphone (BET A98H/C)
Guitar cable (WA302)
FEATURES
ti
.....
iITv,rJ
BLX4
BLX88
Front Panel
©
audio
LED
® ready LED
@
LED
Display
© group and channel Buttons
® power Button
BLX4
BLX88
Back Panel
©
DC
Power Jack
® Adapter Cord Tie-Off
@ XLR microphone
output
jack
(MIC
out)
© 6.35 mm
(1
/4") instrument level
output
jack (i n-
strument
out)
Transmitter LED Indicators
LED
Indicator
Status
Green Ready
Rapldly Flashing Red Controls locked
BLX1
BLX1
© LED Indicator
® power Switch
@ 4-Pin Microphone Input
Jack
(TA4 connector)
© Antenna
® group Button
®
LED
Display
0 channel Button
® Battery Compartment
® Audio Gain Adj
ustment
Solid
Red Battery power low (less than 1 hour remaining")
Flashing
Red a
nd
s
hu
ts
o
ff
Batteries dead (change batteries to power on transmitter)
·For
alkaline batteries only. F
or
rechargeable batteries, solid red means the batteries are dead.
BLX2
© LED Indicator
® power Button
@ group Button
© channel Button
@ LED Display
® Identification Cap
0 Battery Compartment
