Shure BLX2 User Manual

1
BLX
System Components
Note: Your system comes with a combination of the fol-
lowing components.
• BLX1 Bodypack Transmitter
• BLX2 Handheld Transmitter (choice of SM58,
BETA58A, or PG58)
• BLX4 Wireless Receiver
• BLX88 Dual Wireless Receiver
• PS21 Power Supply
• Lavalier microphone (choice of PG185, WL185 or
WL93)
• Headworn microphone (choice of PG30 or
WH30-TQG)
• Instrument microphone (BETA98H)
• Guitar cable (WA302)

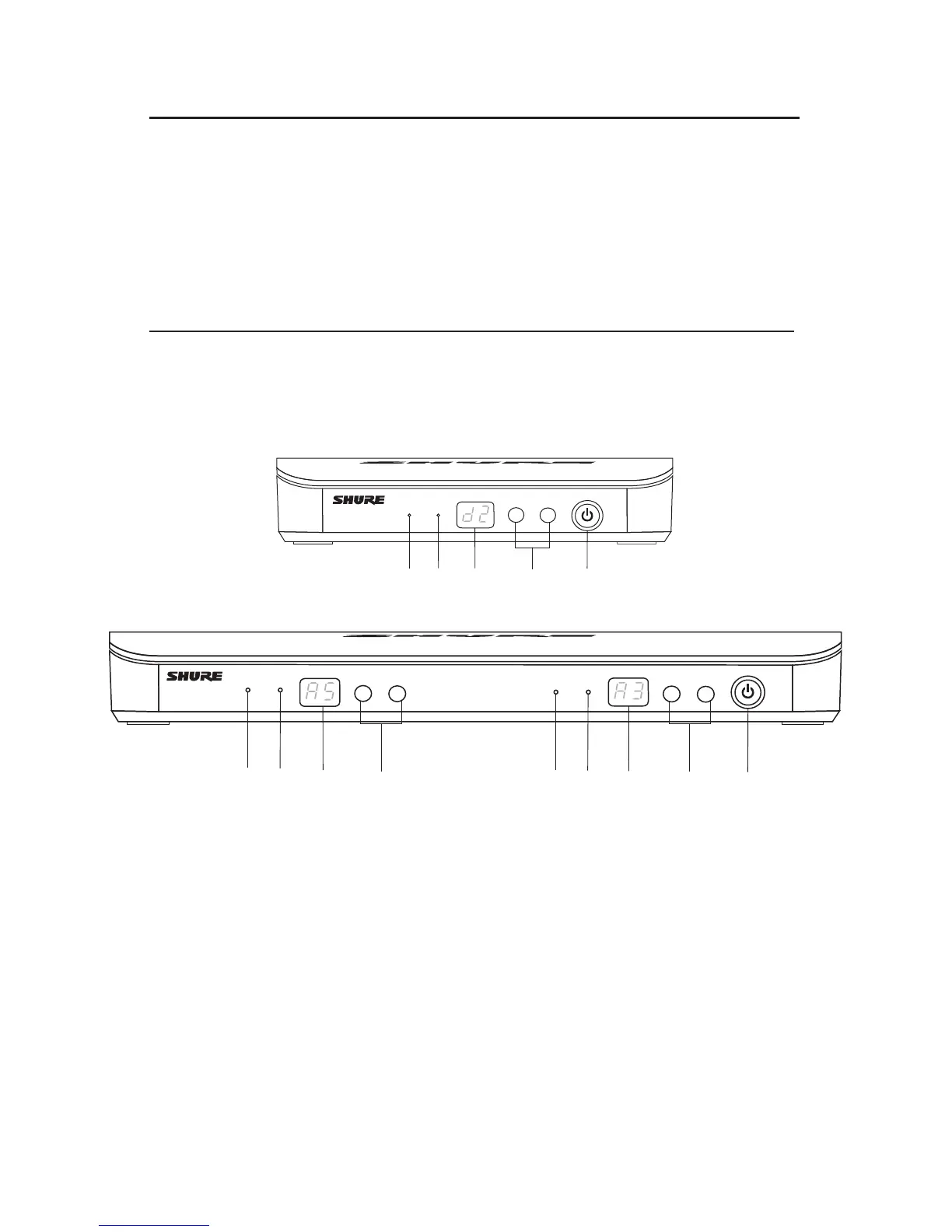

Front Panel
Features
BLX88
① audio LED
Indicates strength of incoming audio signal: green for
normal and red for overload.
② Ready LED Icon
Green light indicates system is ready for use and
receiving transmitter signal.
③ LED Display
Displays group and channel setting.
④ group and channel Buttons
Scan: Push and release group button to scan for an
open group and channel.
Manual: Push and hold group button to find an open
group. Push and release channel button to find a
channel in the current group.
⑤ power Button
Turns power on or off.
BLX4
audio
ready
group
(A-Y)
channel
(0-9)
power
BLX88
audio
ready
group
(A-Y)
channel
(0-9)
audio
ready
group
(A-Y)
channel
(0-9)
power
BLX4
⑤
① ②
③
④
①
②
③
④
⑤
①
②
③
④

Shure BLX2 Specifications

General

Battery Life	Up to 14 hours
Battery Type	2 AA batteries
Modulation	FM
Transmitter Type	Handheld
Compatibility	BLX Series
Frequency Response	50 Hz to 15 kHz
Operating Range	300 ft (91 m) typical
Microphone Capsule	SM58
RF Output Power	10mW
Dynamic Range	100 dB
