Shure GLXD4 - Pin Assignments

Shure Incorporated
28/34

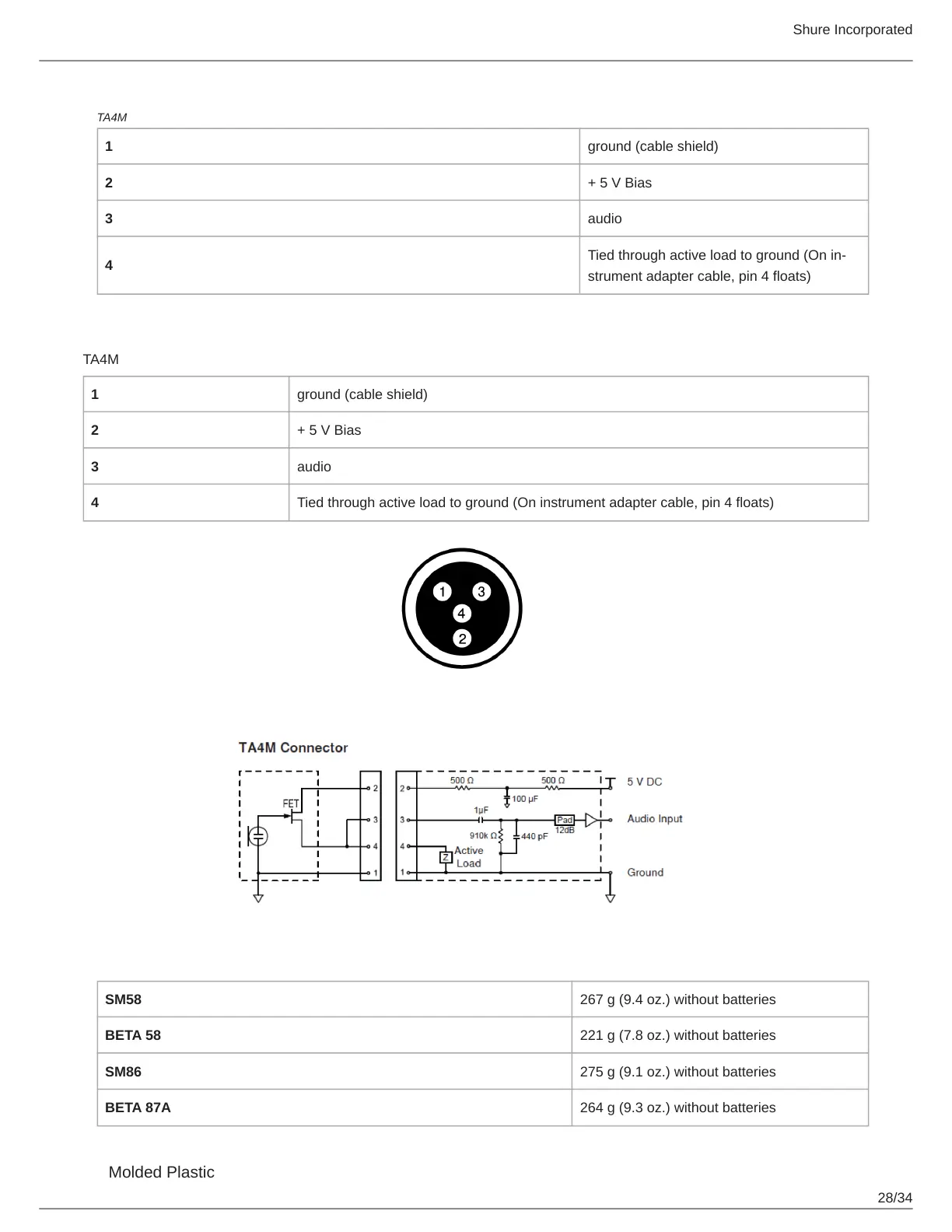

Pin Assignments
TA4M
1 ground (cable shield)
2 + 5 V Bias
3 audio
4
Tied through active load to ground (On in
strument adapter cable, pin 4 floats)
Pin Assignments
TA4M
1 ground (cable shield)
2 + 5 V Bias
3 audio
4 Tied through active load to ground (On instrument adapter cable, pin 4 floats)
Weight
SM58 267 g (9.4 oz.) without batteries
BETA 58 221 g (7.8 oz.) without batteries
SM86 275 g (9.1 oz.) without batteries
BETA 87A 264 g (9.3 oz.) without batteries
Housing
Molded Plastic
