Shure GLXD4 User Manual

Shure Incorporated
7/34

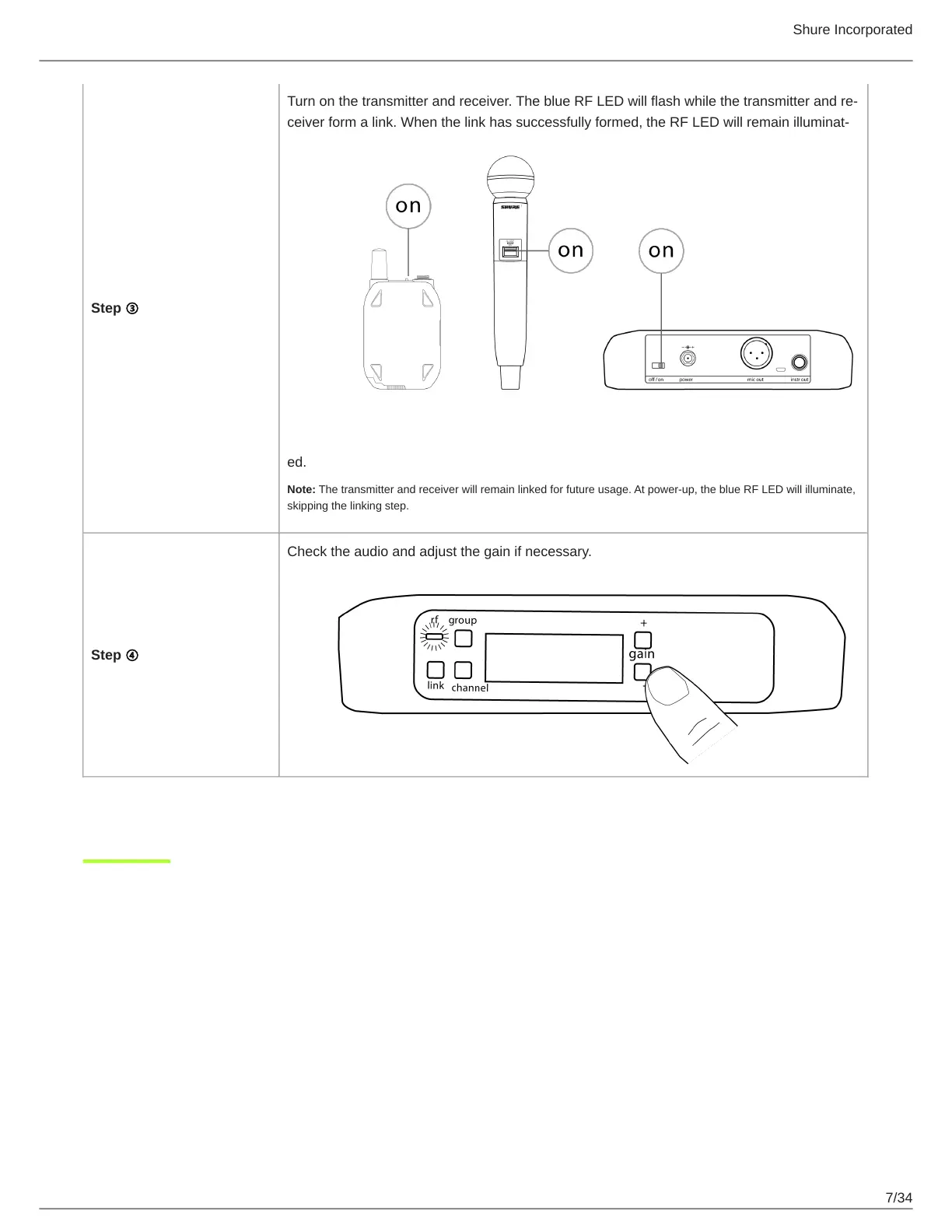

Step ③
Turn on the transmitter and receiver. The blue RF LED will flash while the transmitter and re
ceiver form a link. When the link has successfully formed, the RF LED will remain illuminat
ed.
Note: The transmitter and receiver will remain linked for future usage. At power-up, the blue RF LED will illuminate,
skipping the linking step.
Step ④
Check the audio and adjust the gain if necessary.

Shure GLXD4 Specifications

General

Input voltage	14 - 18 V
Power supply type	AC
Battery life (max)	16 h
Current consumption	550 mA
Battery low indication	Yes
Impedance	50 Ω
Antenna type	Fixed
Display type	LCD
Mounting type	-
Product color	Black
Scan features	Channel scan, Group scan
Housing material	ABS
Antennas quantity	2
Channels quantity	8 channels
High density mode	No
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	2404 - 2478 MHz
Operating temperature (T-T)	-18 - 57 °C
Microphone frequency response	20 - 20000 Hz
Total Harmonic Distortion (THD)	0.2 %
XLR out	1

Weight and Dimensions

Depth	117 mm
Width	183 mm
Height	40 mm
Weight	286 g
