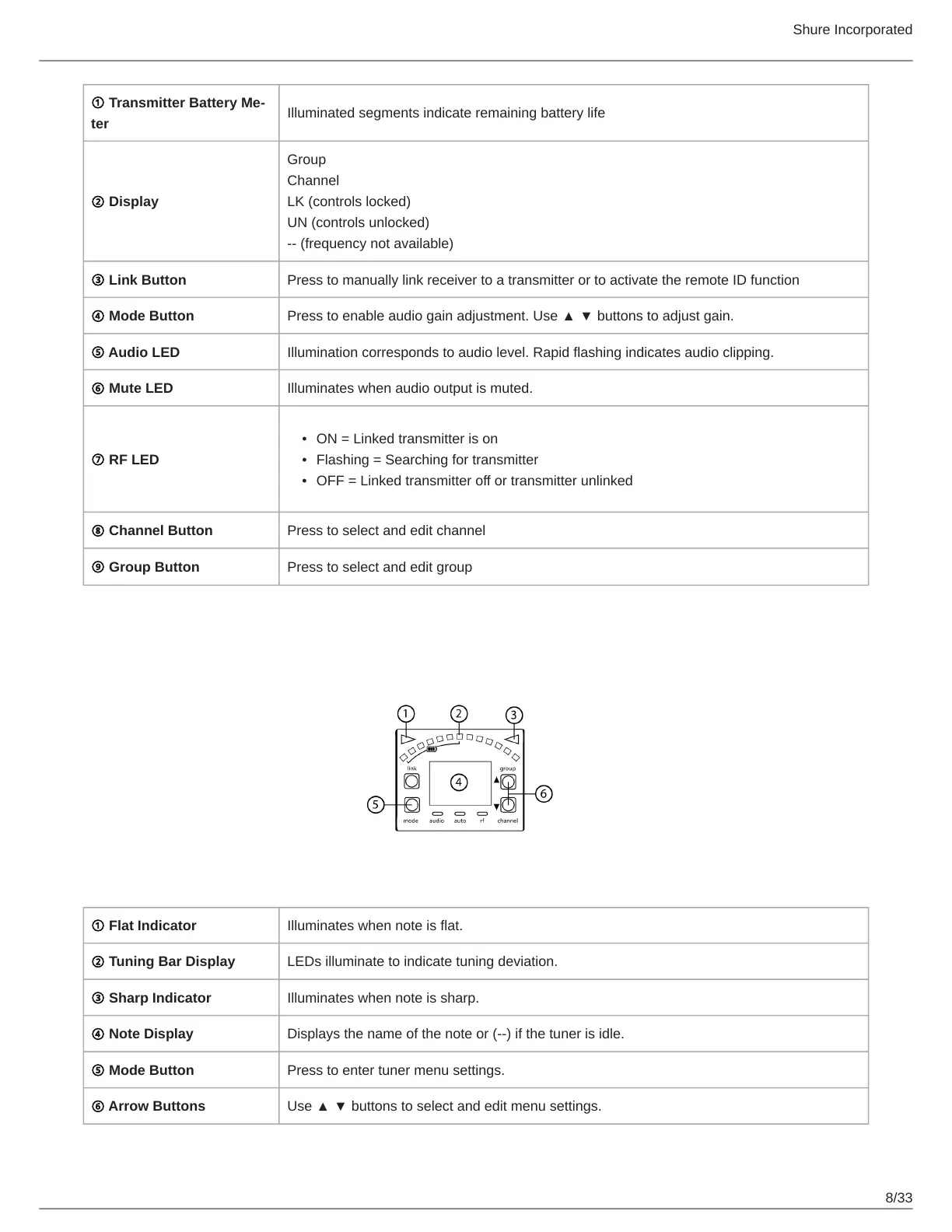

Shure GLXD6 - Tuner Mode

Shure Incorporated
8/33
•
•
•
① Transmitter Battery Me
ter
Illuminated segments indicate remaining battery life
② Display
Group
Channel
LK (controls locked)
UN (controls unlocked)
-- (frequency not available)
③ Link Button Press to manually link receiver to a transmitter or to activate the remote ID function
④ Mode Button Press to enable audio gain adjustment. Use ▲ ▼ buttons to adjust gain.
⑤ Audio LED Illumination corresponds to audio level. Rapid flashing indicates audio clipping.
⑥ Mute LED Illuminates when audio output is muted.
⑦ RF LED
ON = Linked transmitter is on
Flashing = Searching for transmitter
OFF = Linked transmitter off or transmitter unlinked
⑧ Channel Button Press to select and edit channel
⑨ Group Button Press to select and edit group
Tuner Mode
① Flat Indicator Illuminates when note is flat.
② Tuning Bar Display LEDs illuminate to indicate tuning deviation.
③ Sharp Indicator Illuminates when note is sharp.
④ Note Display Displays the name of the note or (--) if the tuner is idle.
⑤ Mode Button Press to enter tuner menu settings.
⑥ Arrow Buttons Use ▲ ▼ buttons to select and edit menu settings.
