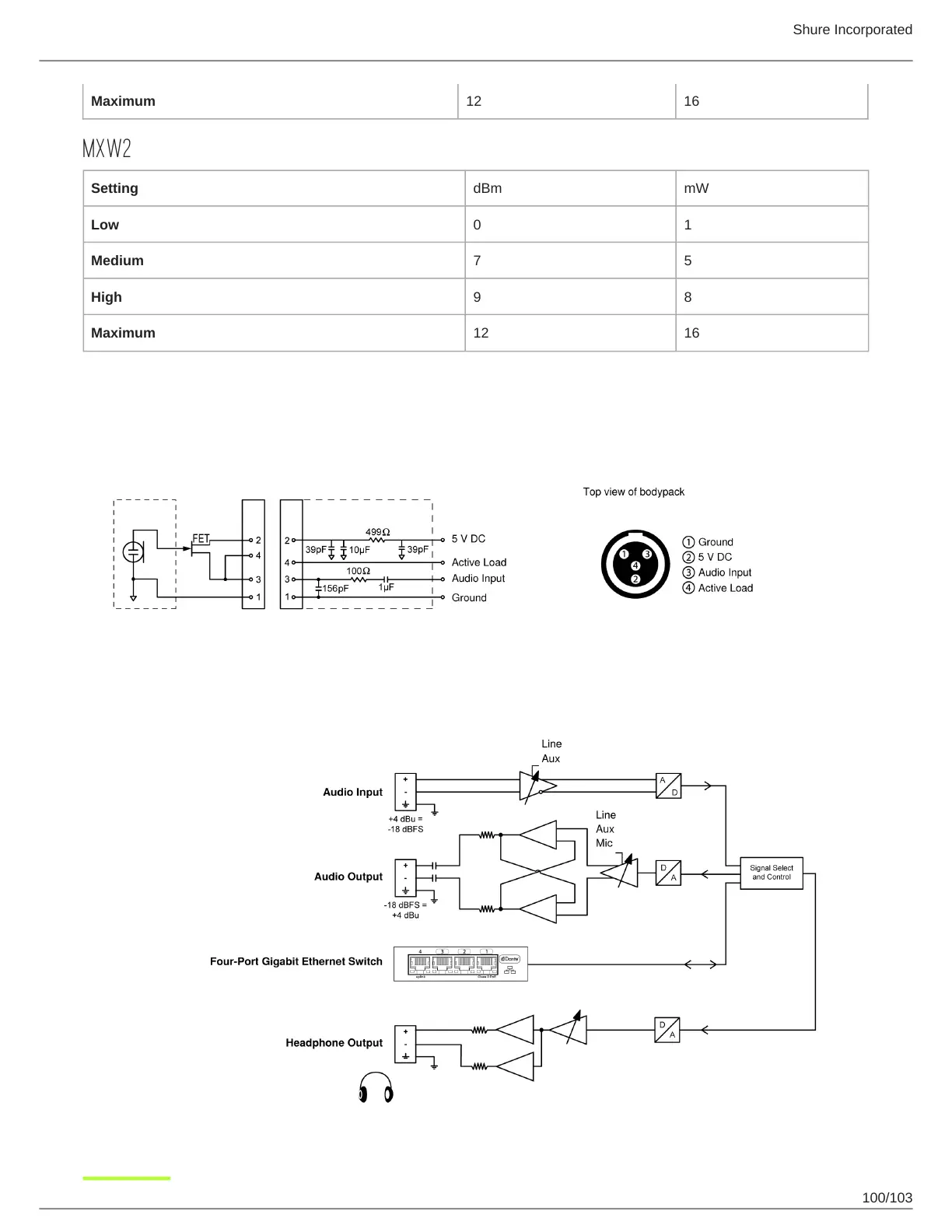

Shure Incorporated
100/103
Maximum
12
16
MXW2
Setting
dBm
mW
Low
0
1
Medium
7
5
High
9
8
Maximum
12
16
Wiring Diagram
TA4M Connector
Audio Network Interface (ANI)
99
101
Table of Contents
Table of Contents
2
Mxwmicroflex® Wireless
4
Important Safety Instructions
4
Overview
5
General Description
5
Features
5
MXW Wireless System
7
Hardware Description
11
Audio Network Interface (ANI)
11
Access Point Transceiver (APT)
14
Networked Charger (NCS)
16
Microphone Transmitters
18
Rechargeable Batteries
24
Installation
29
Additional Equipment
29
Connecting MXW Components
30
Rack Installation
32
Securing the Charging Station
32
Two-Channel Charger Wall Mount
33
Mount the Access Point Transceiver
38
Power the Hardware
40
Open the MXW Control Software
41
System Set up
42
Group Devices to Form Audio Channels
42
Channel Routing between Devices
46
Link Microphones to Group Channels
48
Preparing a Backup Microphone
50
Exchanging or Removing a Component
52
Link a Microphone over the Network
52
Large Installations
53
Shure Systemon Software for Managing Large Systems
53
High Density Mode
53
Configurations: Managing Multiple Groups
53
Wireless Management
55
Overview of Channel Coordination
55
Scanning Available RF Spectrum
56
PHS Detection
57
Identifying PHS Detection Errors
58
Setting RF Power
59
Using Multiple 2- or 4-Channel Access Points
60
Networking
62
Networking Best Practices
62
Configuring IP Settings
63
Advanced Setup
65
Connecting to an External Control System
67
Software
69
Shure Web Device Discovery Application
69
MXW System Control Software
70
Control Software for the MXW Audio Network Interface
82
Dante Software by Audinate
84
Firmware Updates
85
Troubleshooting
85
Additional Resources
87
Factory Reset
87
Accessories and Model Variations
89
Microflex Wireless Specifications
92
System
92
Transmitters
93
Access Point Transceiver (APT)
95
Networked Charging Station (NCS)
96
Audio Network Interface (ANI)
97
Transmitter Output Power
99
Wiring Diagram
100
Safety Information
101
Safety Precautions
101
Warning
101
Important Product Information
101
Information to the User
102
Certifications
102
Trademarks
103
