Shure Incorporated
25/103
•
•
Microphone Type Battery Model
MXW8 gooseneck base
MXW2 handheld SB902A
Networked Charging Station (NCS)

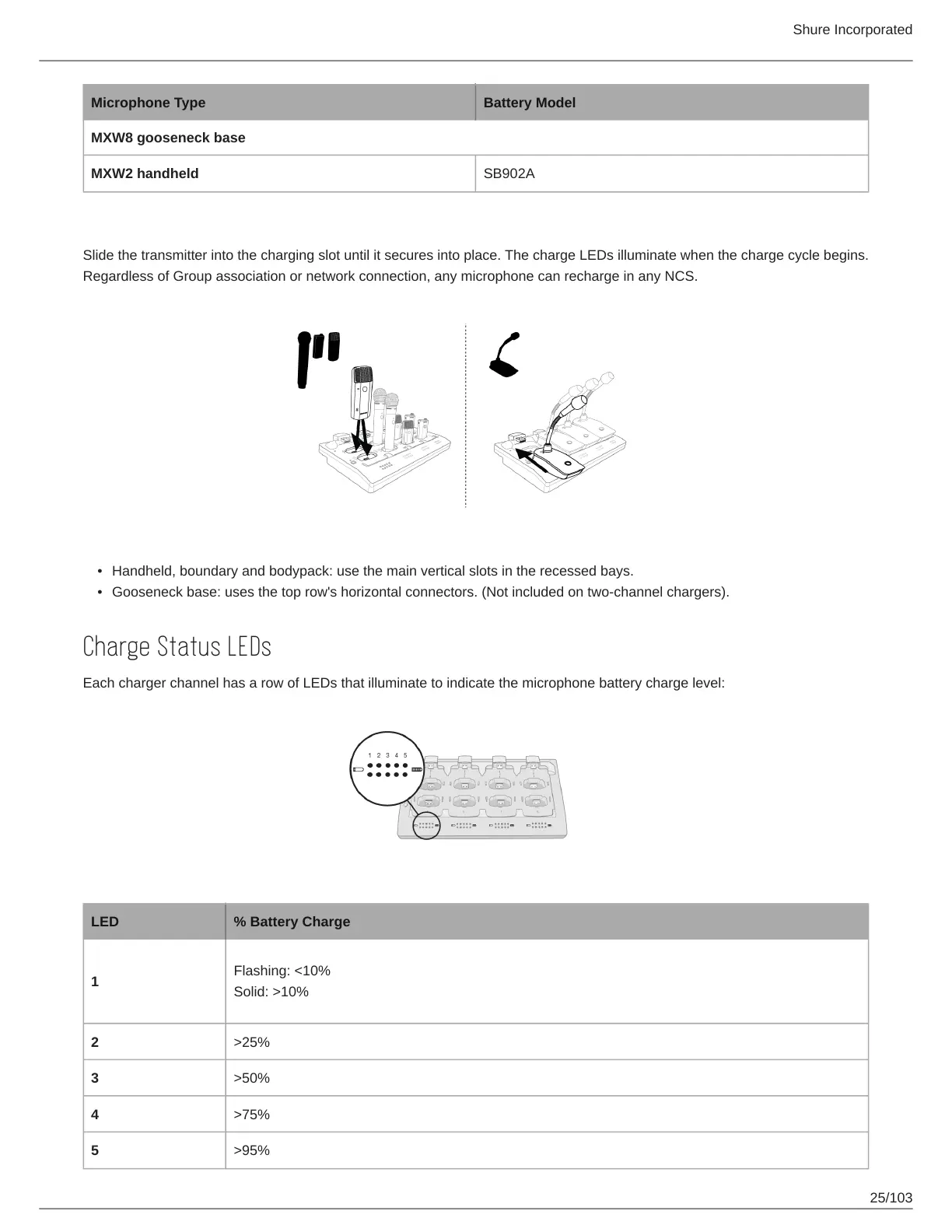

Slide the transmitter into the charging slot until it secures into place. The charge LEDs illuminate when the charge cycle begins.
Regardless of Group association or network connection, any microphone can recharge in any NCS.
Handheld, boundary and bodypack: use the main vertical slots in the recessed bays.
Gooseneck base: uses the top row's horizontal connectors. (Not included on two-channel chargers).
Charge Status LEDs
Each charger channel has a row of LEDs that illuminate to indicate the microphone battery charge level:
LED % Battery Charge
1
Flashing: <10%
Solid: >10%
2 >25%
3 >50%
4 >75%
5 >95%
