Shure Incorporated
29/103
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.

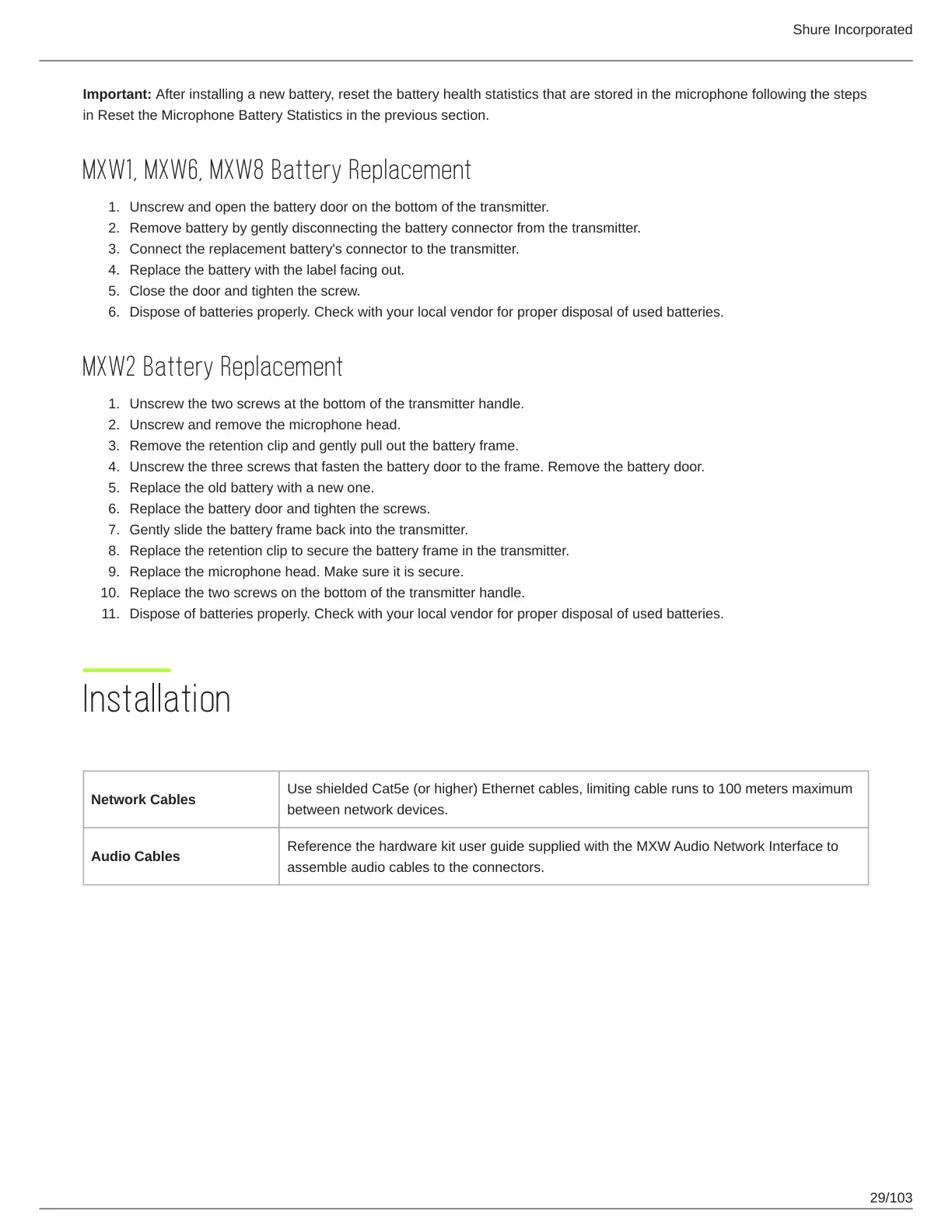

Important: After installing a new battery, reset the battery health statistics that are stored in the microphone following the steps
in Reset the Microphone Battery Statistics in the previous section.
MXW1, MXW6, MXW8 Battery Replacement
Unscrew and open the battery door on the bottom of the transmitter.
Remove battery by gently disconnecting the battery connector from the transmitter.
Connect the replacement battery's connector to the transmitter.
Replace the battery with the label facing out.
Close the door and tighten the screw.
Dispose of batteries properly. Check with your local vendor for proper disposal of used batteries.
MXW2 Battery Replacement
Unscrew the two screws at the bottom of the transmitter handle.
Unscrew and remove the microphone head.
Remove the retention clip and gently pull out the battery frame.
Unscrew the three screws that fasten the battery door to the frame. Remove the battery door.
Replace the old battery with a new one.
Replace the battery door and tighten the screws.
Gently slide the battery frame back into the transmitter.
Replace the retention clip to secure the battery frame in the transmitter.
Replace the microphone head. Make sure it is secure.
Replace the two screws on the bottom of the transmitter handle.
Dispose of batteries properly. Check with your local vendor for proper disposal of used batteries.
Installation
Additional Equipment
Network Cables
Use shielded Cat5e (or higher) Ethernet cables, limiting cable runs to 100 meters maximum
between network devices.
Audio Cables
Reference the hardware kit user guide supplied with the MXW Audio Network Interface to
assemble audio cables to the connectors.
