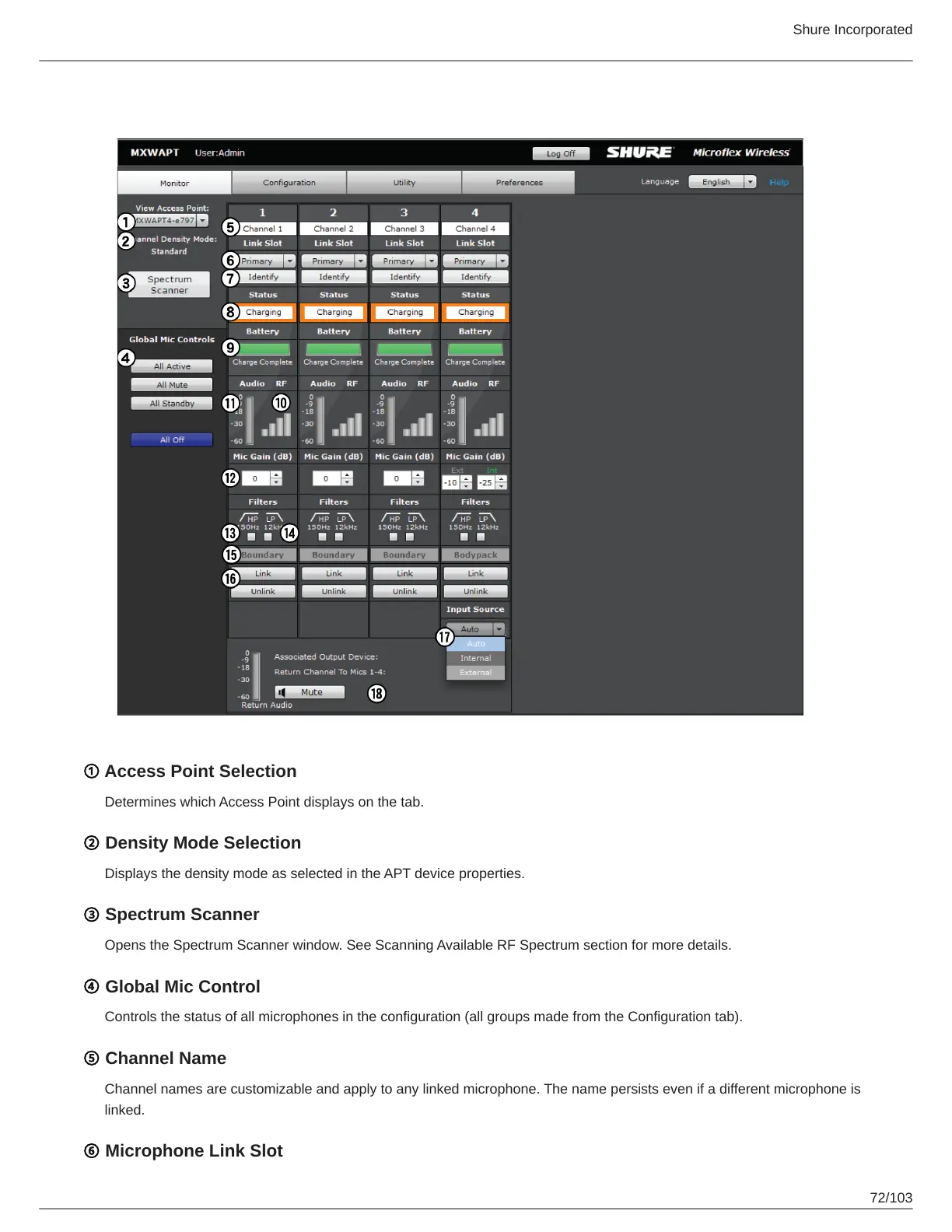

Monitor Tab
① Access Point Selection
Determines which Access Point displays on the tab.
② Density Mode Selection
Displays the density mode as selected in the APT device properties.
③ Spectrum Scanner
Opens the Spectrum Scanner window. See Scanning Available RF Spectrum section for more details.
④ Global Mic Control
Controls the status of all microphones in the configuration (all groups made from the Configuration tab).
⑤ Channel Name
Channel names are customizable and apply to any linked microphone. The name persists even if a different microphone is
linked.
⑥ Microphone Link Slot
