Shure Incorporated
60/103

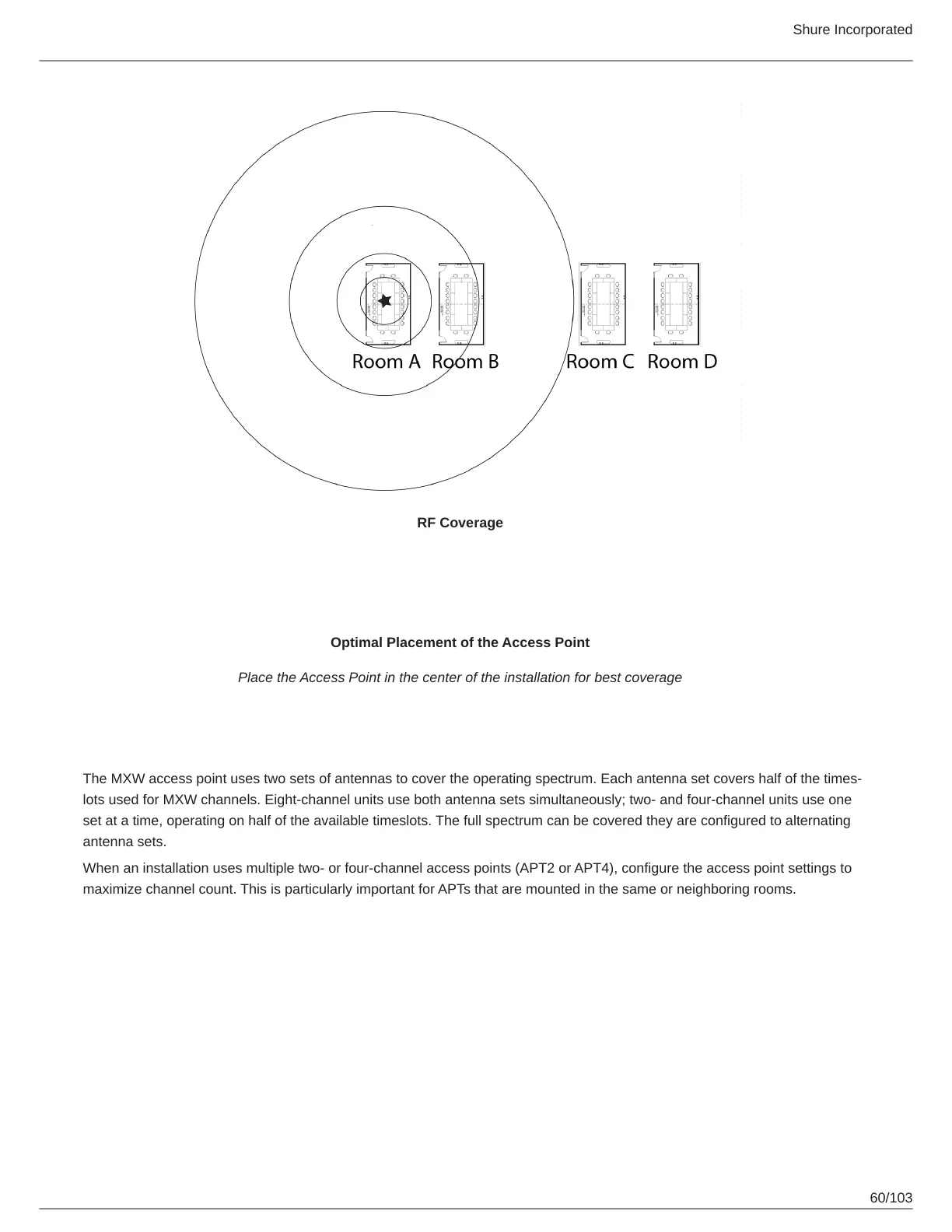

RF Coverage
Optimal Placement of the Access Point
Place the Access Point in the center of the installation for best coverage
Using Multiple 2- or 4-Channel Access Points
The MXW access point uses two sets of antennas to cover the operating spectrum. Each antenna set covers half of the times
lots used for MXW channels. Eight-channel units use both antenna sets simultaneously; two- and four-channel units use one
set at a time, operating on half of the available timeslots. The full spectrum can be covered they are configured to alternating
antenna sets.
When an installation uses multiple two- or four-channel access points (APT2 or APT4), configure the access point settings to
maximize channel count. This is particularly important for APTs that are mounted in the same or neighboring rooms.
