Shure PGX Wireless Quick Start Guide

4
Guitar systems include:
• PGX1 bodypack transmitter
• 1/4” to mini 4-pin guitar cable

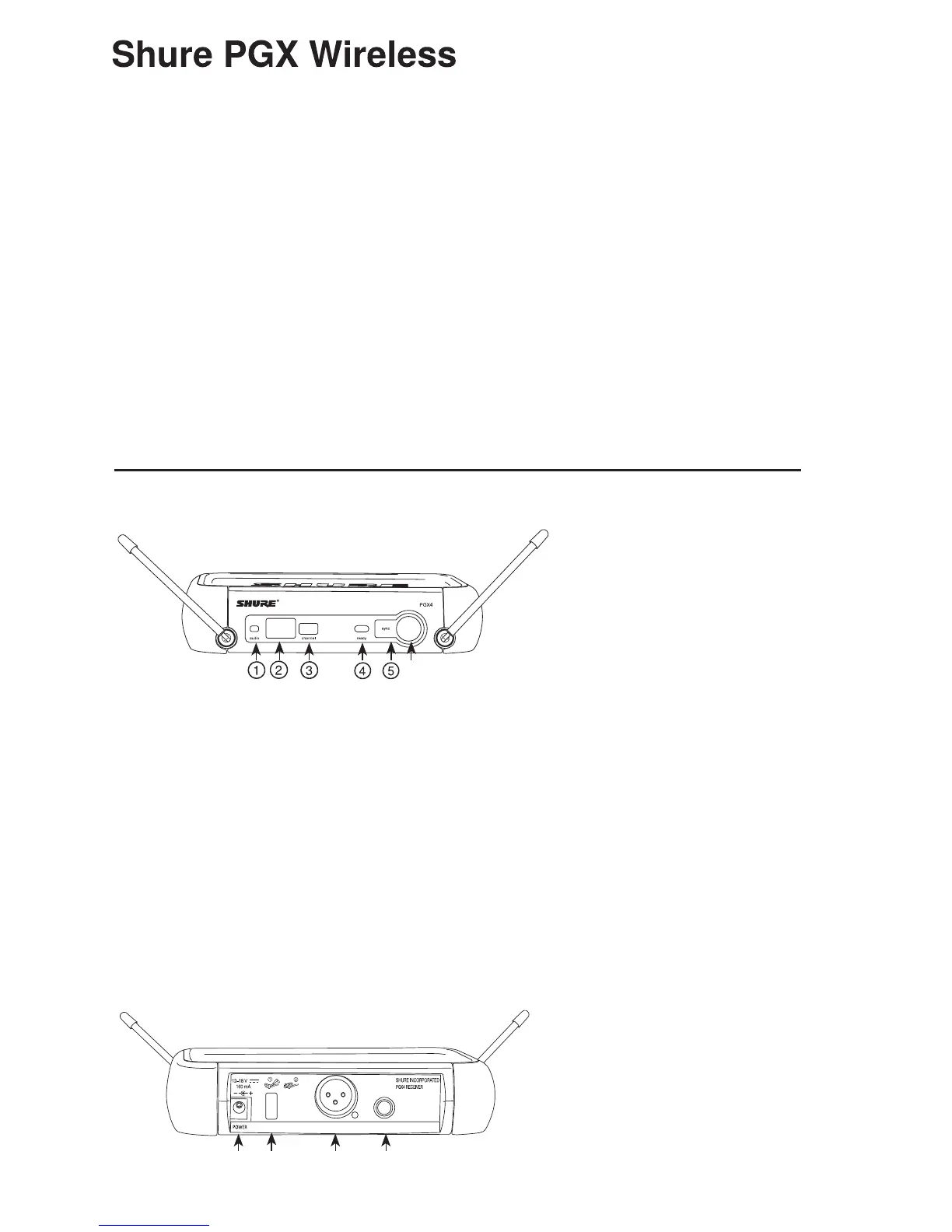

PGX4 Receiver Features
Back Panel
System Components
Front Panel
⑦ ACadapterjack
⑧ Adaptercordtie-off
⑨ XLRmicrophoneoutputjack
⑩ 6.35mm(1/4”)instrumentlevel
outputjack(unbalanced).
All systems include:
• PGX4 receiver
• 2 AA batteries
• Power supply
• User guide
Vocalist systems include:
• MicrophoneHead(choiceofPG58,
SM58
®
,SM86,Beta58A
®
)
• PGX2 handheld transmitter
• Microphone clip
Lavalier, Headworn, and
Instrument systems
include:
• PGX1 bodypack transmitter
• Microphone(choiceofWL93,
WL185,PG30orBeta98H/C™)
① audioLED
Indicatesstrengthofincomingaudiosignal:green
fornormal,amberforstrongandredforclipping.
② LEDScreen
Displaysgroupandchannelsetting.See“Single
SystemSetup”fordetails.
③ channel button
Changesgroupandchannelsetting.See“Single
SystemSetup”fordetails.
④ readyLED
Indicates system ready and receiving an RF signal
fromthetransmitter.
⑤ Infrared(IR)port
SendsIRsignaltotransmitterforsync.
⑥ sync button
Press to synchronize transmitter with receiver group
and channel settings.
⑥
INSTRUMENT OUTMIC OUT
⑦
⑧
⑨
⑩
