Shure PGX Wireless Quick Start Guide

5
3
1
2
3
PGX1
4
5
PGXD
1
2

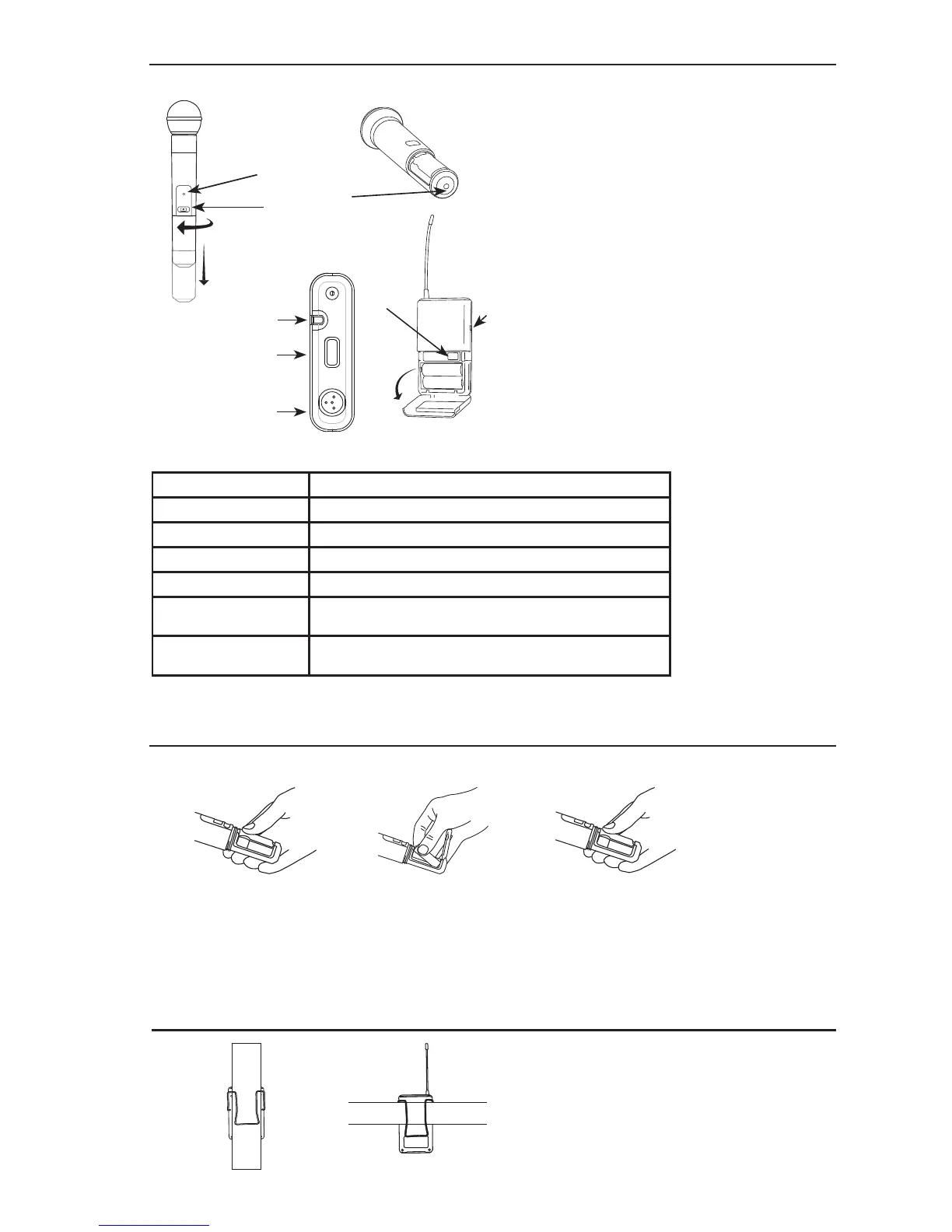

Transmitter Controls and Connectors
Changing Batteries
Transmitter Indicator LED
Green ready
Flashing green ControlsLocked
Amber Mute On
Flashing red IR transmission in process
Glowing red Battery power low
Pulsing Red on startup Batteries dead (transmitter cannot be turned on until batteries
are changed)
PulsingRedafter
synchronization
Transmitter and receive incompatible; contact your Shure
reseller
Wearing the Bodypack Transmitter
① IndicatorLED
Displaysbatterylevel,mute,andIRtransmission
status (see table).
② Power/MuteSwitch
Press to mute or unmute. Press and hold to
poweronoroff.
③ Infrared(IR)port
Receivesinfraredbeamtosynchronize
frequencies.Whenusingmultiplesystems,only
one transmitter IR port should be exposed at a
time.
④ 4-PinMicrophoneInputJack
⑤ AudioGainAdjustment
Clip the transmitter to a belt or slide a guitar strap through
the transmitter clip as shown.
For best results, slide the transmitter until the belt is pressed
againstthebaseoftheclip.
• ExpectedlifeforanAlkalinebatteryisapproximately8hours.
• Whenthetransmitterlightglowsred,thebatteriesshouldbechanged
immediately, as shown.
