Shure PGX Wireless User Manual

ENGLISH
9

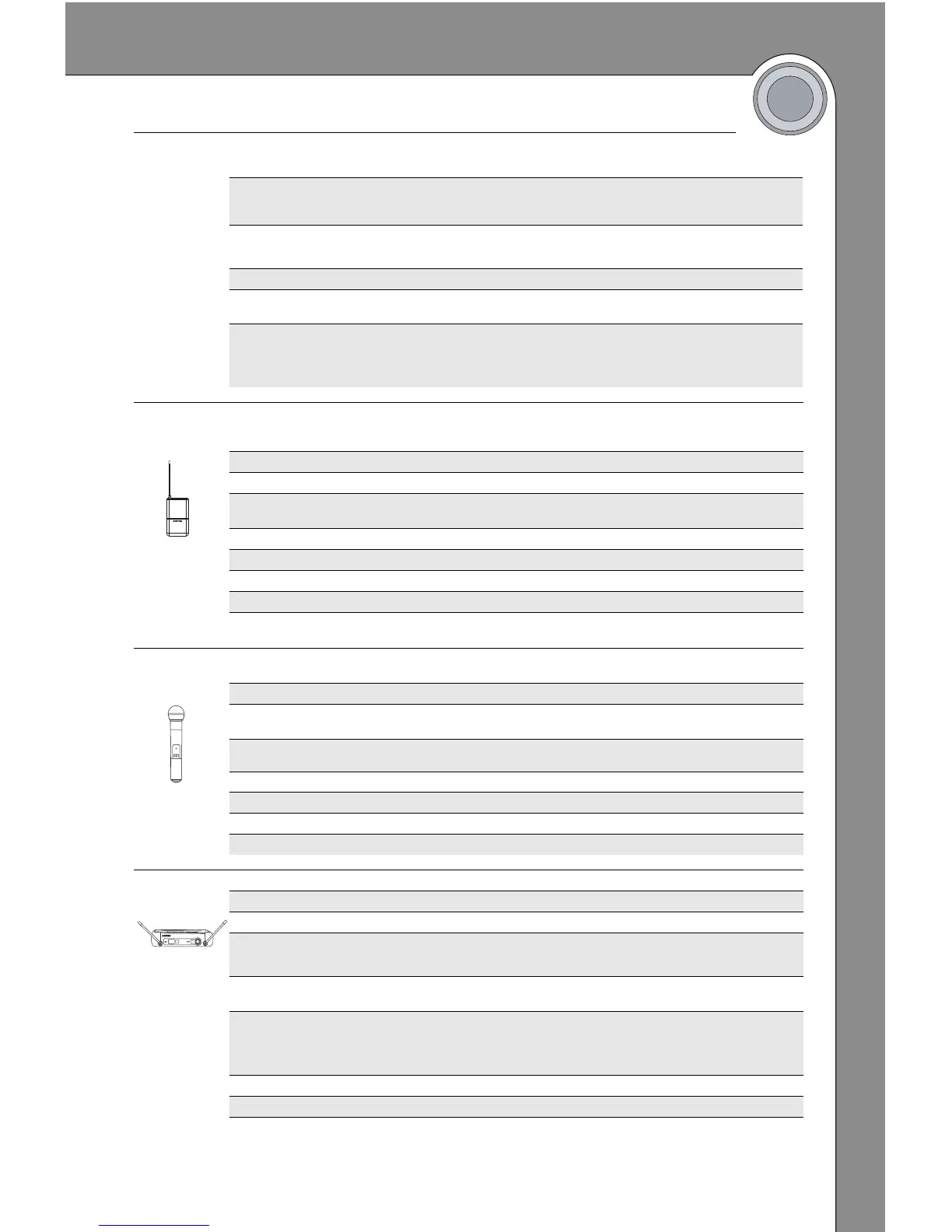

Specifications
System
Working Range 100m (300 ft.)
Note: actual range depends on RF signal absorption,
reflection, and interference
Audio Frequency Response
+/– 2 dB
Minimum: 45 Hz
Maximum: 15 kHz
(Overall system frequency depends on microphone element.)
Total Harmonic Distortion
Ref. +/– 33 kHz deviation, 1 kHz
tone
0.5%, typical
Dynamic Range >100 dB A-weighted
Operating Temperature
Range
–18°C (0°F) to +50°C (+122°F)
Note: battery characteristics may limit this range
Transmitter Audio Polarity Positive pressure on microphone diaphragm (or positive
voltage applied to tip of WA302 phone plug) produces positive
voltage on pin 2 (with respect to pin 3 of low impedance output)
and the tip of the high impedance 1/4-inch output.
PGX1
Bodypack
Transmitter
Audio Input Level –10 dBV maximum at "mic" gain position
+10 dBV maximum at 0dB gain position
+20 dBV maximum at –10dB gain position
Gain Adjustment Range 30 dB
Input Impedance 1M
RF Transmitter Output 30 mW maximum (dependent on applicable country
regulations)
Dimensions 108 mm H x 64 mm W x 19 mm D (4.25 x 2.50 x 0.75 in.)
Weight 81 grams (3 oz.) without batteries
Housing Molded polycarbonate case
Power Requirements 2 “AA” size alkaline or rechargeable batteries
Battery Life >8 hours (alkaline)
PGX1
PGX2
Handheld
Transmitter
Audio Input Level +2 dBV maximum at –10dB position
–8 dBV maximum at 0dB position
Gain Adjustment Range 10dB
RF Transmitter Output 30 mW maximum (dependent on applicable country
regulations)
Dimensions
including SM58 cartridge
254 mm x 51 mm dia. (10 x 2 in.)
Weight 290 grams (10.2 oz.) without batteries
Housing Molded PC/ABS handle and battery cup
Power Requirements 2 “AA” size alkaline or rechargeable batteries
Battery Life >8 hours (alkaline)
PGX
PGX4
Receiver
Dimensions 40 mm H x 181 mm W x 104 mm D (1.6 x 7.125 x 4.1 in.)
Weight 327 g (11.5 oz.)
Housing ABS
Audio Output Level
Ref. +/– 33 kHz deviation with 1
kHz tone
XLR connector (into 600  load): –19 dBV
1/4 inch connector (into 3000  load): –5 dBV
Output Impedance XLR connector: 200 
1/4 inch connector: 1k
XLR output Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
Sensitivity –105 dBm for 12 dB SINAD, typical
Image Rejection >70 dB, typical
Power Requirements 12–18 Vdc at 150 mA, supplied by external power supply
sync
readyaudio channel select
