PGX4 Receiver Features

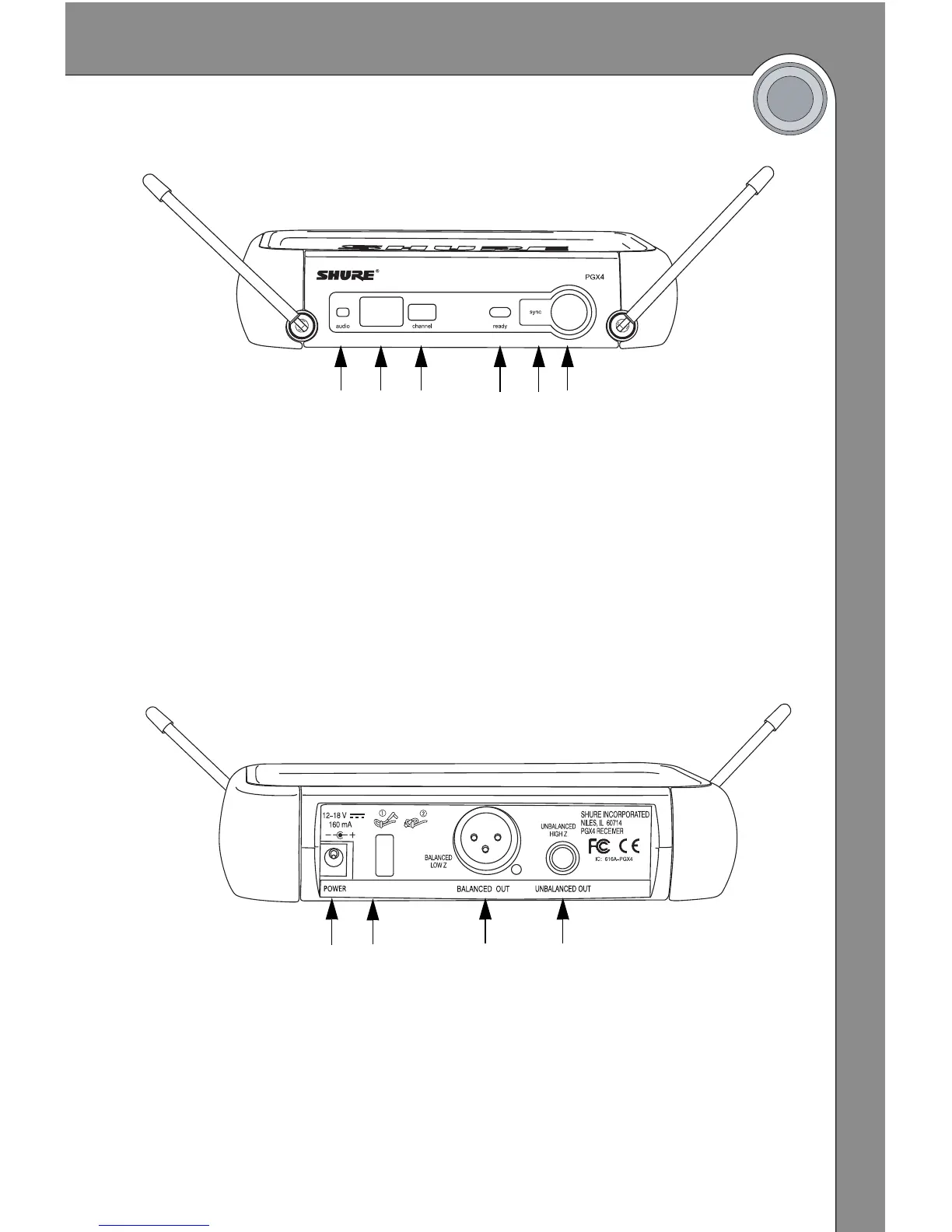

Front Panel
 audio LED
Indicates strength of
incoming audio signal: green
for normal, amber for strong,
red for peak.
 LED screen
See “Single System Setup” on
page 6.
 channel button
See “Single System Setup” on
page 6.
 ready LED
Green light indicates system is
ready for use.
 Infrared (IR) port
Broadcasts IR signal to transmitter.
 sync button
Press to synchronize transmitter
and receiver frequencies.
Back Panel
 AC adapter jack
 Adapter cord tie-off
 XLR balanced microphone out-
put jack
 1/4” unbalanced output jack
     
  

