Multiple System Setup
See the included
frequency and
channel guide
for information
on compatible
channels.
Multiple system setups require the use of groups and channels. In the
LED panel, the left digit indicates the current group; the right digit indi-
cates the current channel.
Follow these steps when using multiple PGX systems in a single installation:
1. Turn all receivers on and all transmitters off.
2. Make sure the group number is the same for all receivers. If nec-
essary, use Manual Frequency Selection (shown below) to set all
receivers to a single group.
3. Perform Automatic Frequency Selection on the first receiver
(see page 6).
4. Turn on the first transmitter.
5. Perform Automatic Transmitter Setup (see page 6).
Leave the transmitter turned on. Repeat for each system.
Be sure that only one transmitter’s IR port is exposed when
synchronizing a system.
Manual Frequency Selection (receiver only)
To manually select a group or a channel, press and hold the channel button.
The display alternates between the group number and the channel number.
Releasing the channel button while either number is displayed makes the
displayed number flash.
Pressing the channel button while either number is flashing increases the
setting by one.
To activate a newly selected group or channel, simply wait until the number
stops flashing.

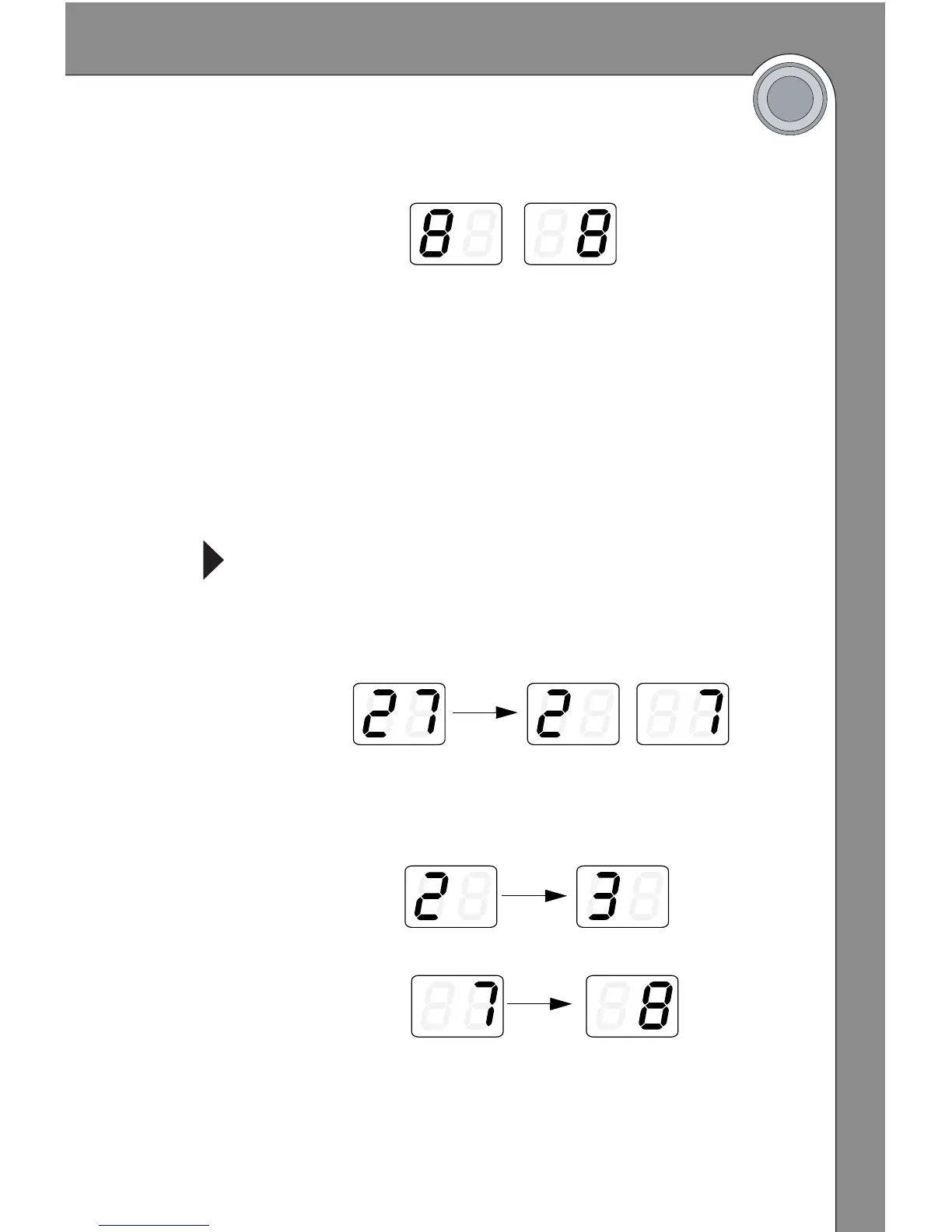

left digit is group
right digit is channel
hold channel
button
...then press the
channel button
to increase the
value.
to change the group
value, release the
channel button while
the first digit displays...
...then press the
channel button
to increase the
value.
to change the channel
value, release the
channel button while the
second digit displays...
