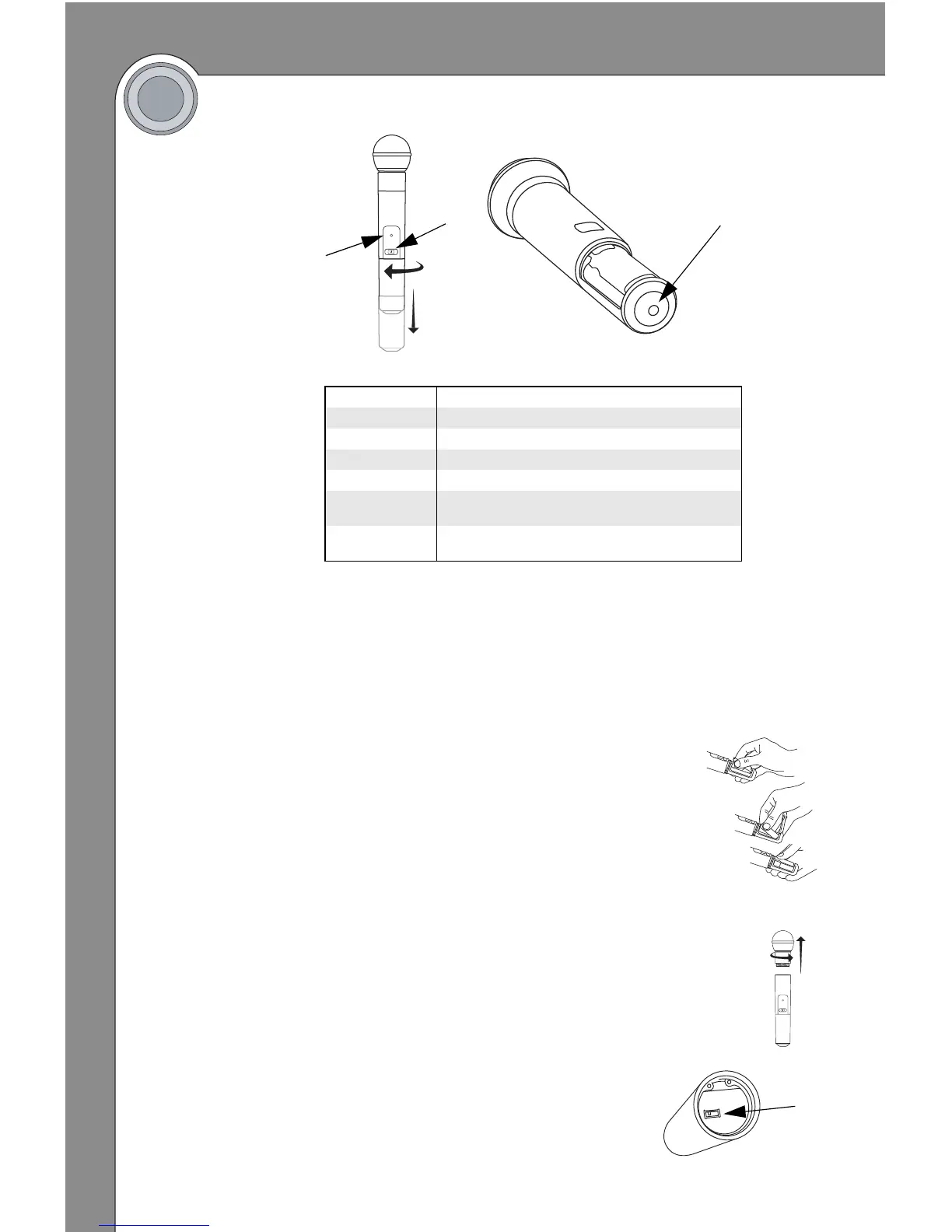

PGX2 Handheld Transmitter
Power / Infrared (IR) / Mute indicator
On-off / mute switch
Press and hold to turn on or off. Press and release to mute or unmute.
IR port
Receives infrared beam to synchronize frequencies. When using multiple
systems, only one transmitter IR port should be exposed at a time.
Changing Batteries
• Expected life for alkaline batteries is approximately
8hours.
• When the transmitter light glows red, the batteries should
be replaced immediately, as shown on the right.
Adjusting Gain
• Access the gain adjustment switch by unscrewing the
head of the microphone.
• Two gain settings
are available on the PGX2. Use
the tip of a pen or a small screwdriver to move the
switch.
•
0dB:
For quiet to normal vocal performance.
•
–10dB:
Use only if audio is distorted due to
high vocal levels.
Green Ready
Flashing green Controls locked (see page 8)
Amber Mute on
Flashing red IR transmission in process
Glowing red Battery power low
Pulsing red on
startup
Batteries dead (transmitter cannot be turned on
until batteries are changed)
Pulsing red after
synchronization
Transmitter and receiver incompatible; contact
your Shure reseller
